Description
Amphenol H4 4-Branch Solar Panel Parallel Cable Pair 24 Ft ATPI 010385

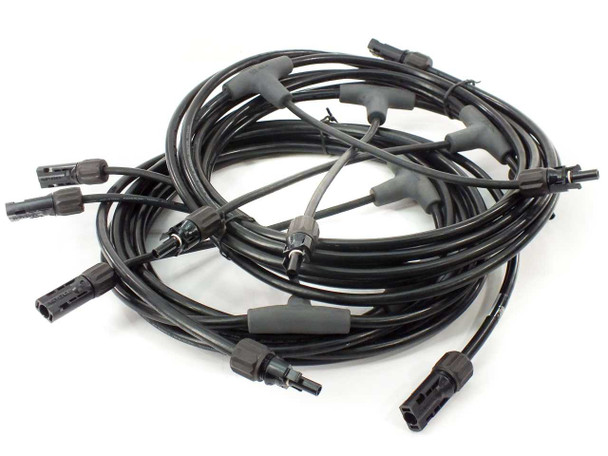

This is a parallel branch cable pair designed for multi-panel solar installations. It consists of one male and one female 24-foot cable, each with 4 connection points spaced 6 feet apart.
Specifications & What's Included
- Brand: Amphenol; Model: H4; MPN: ATPI 010385
- Type: Solar Panel Parallel Branch Cable Pair

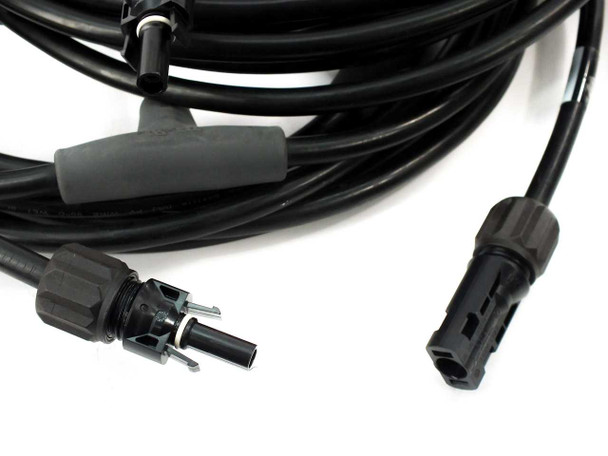

- Connector Type: H4 / MC4-Compatible
- 4 branches per cable with 6-foot spacing between connectors
- 18-foot end run length
- Supports up to 4 solar panels per pair
- Parallel configuration (increases amperage, not voltage)
- Includes one male and one female cable
Applications
Parallel branch cables are used in photovoltaic installations to combine output from multiple solar panels into a single circuit. This configuration increases system amperage while maintaining voltage, allowing panels to be wired together efficiently. H4 and MC4-compatible connectors are standard in residential and commercial solar arrays. These cables are typically used in off-grid and grid-tie systems where multiple panels need consolidated connections before reaching charge controllers or inverters.
This Amphenol H4 4-Branch Solar Panel Parallel Cable Pair (ATPI 010385) is new and unused. The cables show no signs of use or wear and appear to be in original, uninstalled condition. The H4 connectors are clean and undamaged as observed in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Amphenol |
Model: |
H4 |
MPN: |
ATPI 010385 |
SKU: |
52171 |
Type: |
Solar Panel Parallel Branch Cable Pair |
Connector Type: |
H4 / MC4-Compatible |
Number of Branches: |
4 (per cable) |
Cable Length: |
24 Feet per cable |
Branch Spacing: |
6-foot gaps between connectors |
End Run Length: |
18-foot run to end of cable |
Configuration: |
Parallel (increases amperage, not voltage) |
Includes: |
Pair of 2 cables — one Male (M), one Female (F) |
Max Panels Supported: |
4 solar panels per pair |

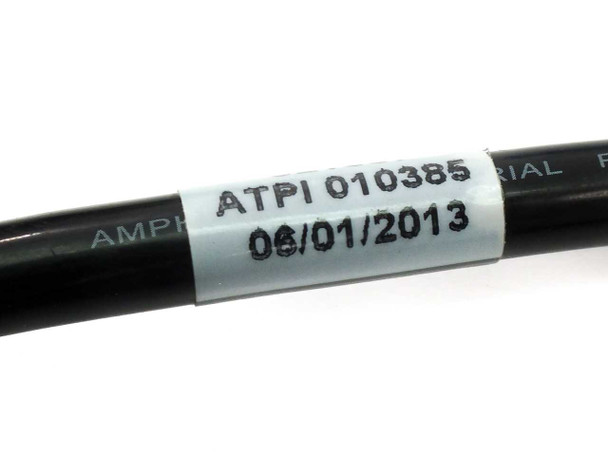

Date Code: |
06/01/2013 |
Condition: |
New – Unused |
Seller Notes: |
Includes pair of two 24-ft 4-branch cables (M/F), new and unused. |
Condition Notes: |
Amphenol H4 ATPI 010385 4-branch solar parallel cable pair is new and unused. Connectors are clean and undamaged. Please view our photos and contact us with any questions. |
