American Liquid Light MAC II/PAL 10001 Rev C ISA Controller Card SL89091054

(No reviews yet) Write a Review
SKU:
44736
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • American Liquid Light MAC II/PAL 10001 Rev C ISA controller card — top/component side showing DIP ICs in orange sockets and two DB-9 connectors on bracket

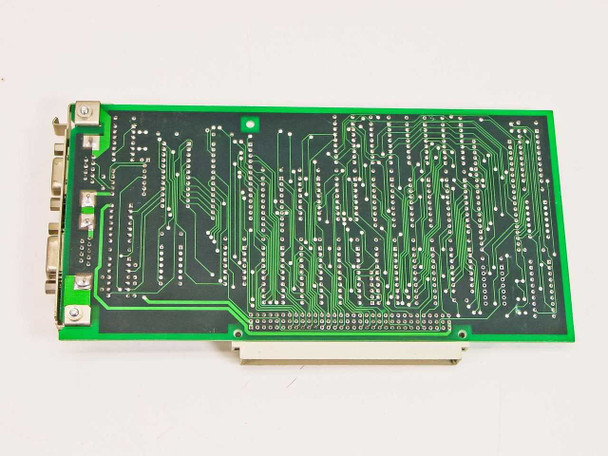

  • American Liquid Light MAC II/PAL 10001 Rev C ISA card — solder/reverse side showing clean green PCB traces and 96-pin ISA edge connector
  • Close-up of MAC II/PAL PCB label showing P/N 10001 REV C, ASSY REV SL89091054, and 3.68640 MHz Valpey Fisher crystal

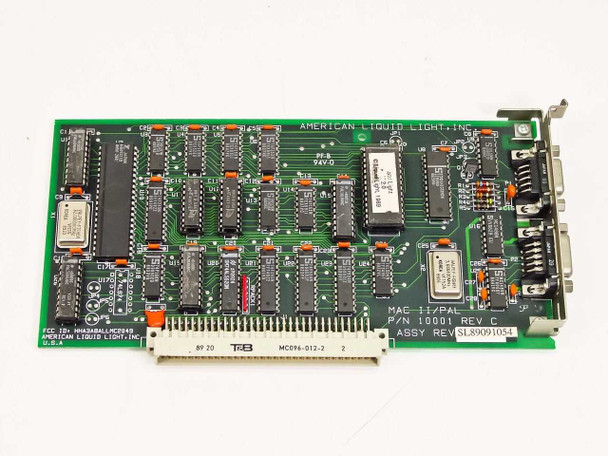

  • American Liquid Light MAC II/PAL 10001 Rev C full card view — FCC ID label, T&B MC096-012-2 bus connector, and two DB-9 bracket connectors visible
  • Close-up of T&B MC096-012-2 96-pin ISA bus edge connector on American Liquid Light MAC II/PAL card
  • American Liquid Light MAC II/PAL 10001 Rev C card — angled front view showing DIP IC array, crystal oscillator, and dual DB-9 output connectors
$28.00
Was: $35.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

American Liquid Light MAC II/PAL 10001 Rev C ISA Controller Card SL89091054

The American Liquid Light MAC II/PAL is a proprietary ISA bus controller card manufactured by American Liquid Light, Inc., a U.S. maker of specialized lighting and motion control systems. Bearing part number 10001 Rev C and assembly revision SL89091054, this card interfaces a host PC's ISA bus to external devices via two DB-9 (DE-9) connectors on the rear bracket. The "PAL" designation references the card's use of Programmable Array Logic devices for its control logic, which was a common approach in late-1980s custom controller hardware.

Specifications & What's Included

  • Manufacturer: American Liquid Light, Inc. (U.S.A.)
  • Model: MAC II/PAL
  • Part Number: 10001 Rev C
  • Assembly Revision: SL89091054
  • FCC ID: HHK3ABLLMC2049
  • Bus Interface: ISA (96-pin bus edge connector — T&B MC096-012-2)
  • Bracket Connectors: Two DB-9 (DE-9) ports
  • Clock Crystal: Valpey Fisher VF152A, 3.68640 MHz (date code 8806)
  • Logic ICs: Multiple DIP packages in orange sockets — includes 74LS04N, 74LS03, MC1489N series and others
  • PCB: Double-sided green FR4, silkscreened
    Condition: Used
    This American Liquid Light MAC II/PAL ISA controller card (P/N 10001 Rev C) has been inspected and appears to be in good used condition. The PCB is clean with no visible cracked traces, burnt components, or broken solder joints. The two DB-9 bracket connectors are intact, and the 96-pin ISA bus edge connector shows normal contact wear consistent with prior installation. Several DIP ICs show the orange socket coloring typical of the era; all appear seated. This card was pulled from a working environment where it had been previously in service. Please view our photo set and contact us if you have any questions.
