Description
American Industrial Heat Transfer AC-30-3 Air Cooled Heat Exchanger 300 PSI 400°F
The American Industrial Heat Transfer AC-30-3 is a forced-air heat exchanger designed for cooling industrial fluids — most commonly hydraulic oil, lubrication oil, or water-glycol coolant — by passing the fluid through an internal tube bundle while a motor-driven fan draws ambient air across the finned core. It is a self-contained, all-in-one cooling unit combining the heat exchange core and fan assembly in a single compact housing, making it straightforward to integrate into hydraulic power units, machine tool systems, or industrial process loops.
Specifications & What's Included

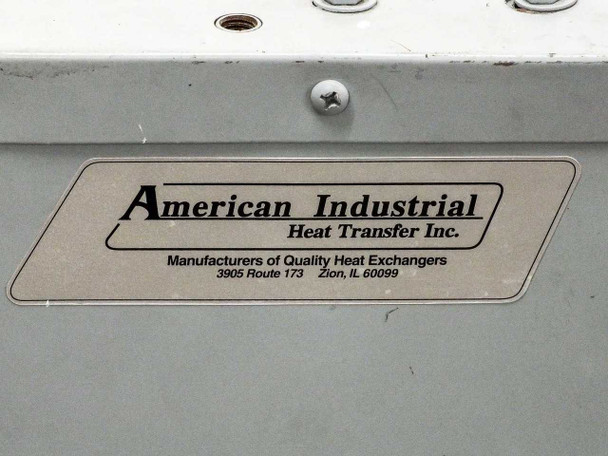

- Manufacturer: American Industrial Heat Transfer Inc., Zion, IL USA
- Model: AC-30-3, Config Code 0401
- Type: Air cooled (forced-air) heat exchanger
- Tube operating pressure: 300 PSI
- Maximum temperature: 400°F

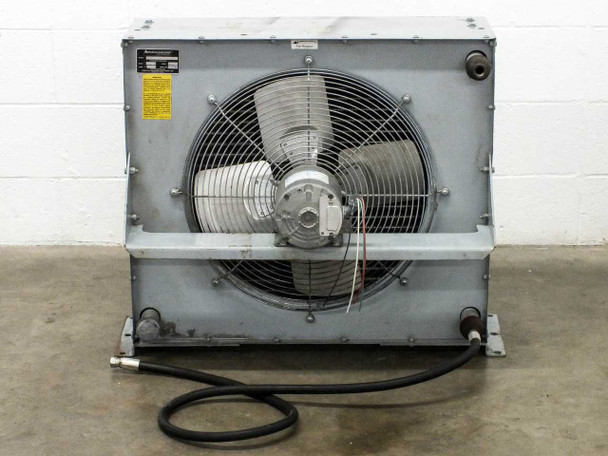

- Cooling method: Motor-driven propeller fan over finned tube core

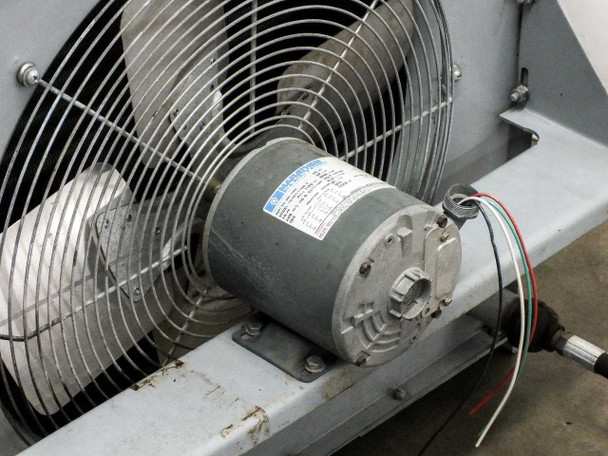

- Fan motor: Marathon Electric, Part No. 306-1006 (7VL48T11T38B P)
- Fan motor horsepower: 1/6 HP
- Fan motor voltage: 230/460V
- Fan motor phase: Three-phase
- Fan motor frequency: 60 Hz
- Fan motor speed: 1140 RPM
- Fan motor frame: FR-48
- Fan motor full load amps: 1.1A (230V) / 0.55A (460V)
- Fan motor service factor: 1.15
- Fan motor enclosure: TENV (Air Over Motor)
- Fan motor bearings: Permanently lubricated ball bearings

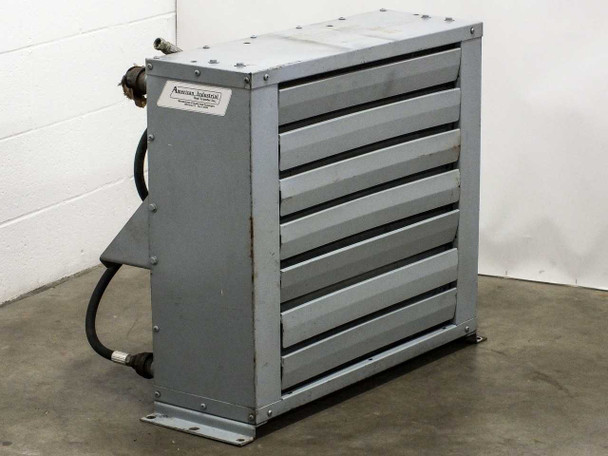

- Housing: Painted steel, louvered/finned core with bolt-on mounting feet
- Fluid connections: Threaded hose fittings (hose attached, as shown in photos)
- Includes: Heat exchanger unit with fan motor and attached hose connections as photographed
Applications
Air cooled heat exchangers like the AC-30-3 are standard equipment in industrial hydraulic and lubrication systems, where they remove heat generated by pumps, actuators, and valves to keep fluid temperatures within the system's operating range. They are commonly used on hydraulic power units (HPUs), CNC machine tools, injection molding machines, industrial presses, compressors, and other machinery where water cooling is impractical or unavailable. The forced-air design — a finned tube core with a motor-driven fan — requires only an electrical connection and fluid plumbing, with no cooling water supply needed. American Industrial Heat Transfer, based in Zion, Illinois, has been a well-known North American manufacturer of this type of industrial heat exchanger. Units like the AC-30-3 continue to see active use in plant maintenance, machine rebuilds, and replacement applications across a wide range of industries.
This American Industrial Heat Transfer AC-30-3 Air Cooled Heat Exchanger has been inspected and appears to be in good used condition. It has not been powered up or tested at our facility, but the unit shows no signs of major damage — the fin core, housing, and fan assembly all look intact. The gray painted housing shows typical surface scuffs and light wear consistent with industrial service use. The Marathon Electric fan motor and attached hose connections are present as shown in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
American Industrial Heat Transfer |
Model: |
AC-30-3 |
MPN: |
AC-30-3 |
Secondary Model: |
0401 |
SKU: |
50514 |
Type: |
Air Cooled Heat Exchanger |
Max Temperature: |
400°F |
Cooling Method: |
Forced Air / Fan Cooled |
Fan Motor Brand: |
Marathon Electric |
Fan Motor Part Number: |
306-1006 / 7VL48T11T38B P |
Fan Motor Horsepower: |
1/6 HP |
Fan Motor Voltage: |
230/460V |
Fan Motor Phase: |
Three Phase |
Fan Motor Frequency: |
60 Hz |
Fan Motor RPM: |
1140 RPM |
Fan Motor Frame: |
FR-48 |
Fan Motor FLA: |
1.1A / 0.55A |
Fan Motor Service Factor: |
1.15 |
Fan Motor Enclosure: |
TENV (Air Over Motor) |
Country/Region of Manufacture: |
United States |
Manufacturer Location: |
Zion, IL 60099 |
Form Factor: |
Floor/Wall Mount |
Seller Notes: |
Unit only — includes attached hose connections and fan motor as shown. |
Condition Notes: |
This American Industrial Heat Transfer AC-30-3 Air Cooled Heat Exchanger has been inspected and appears to be in good used condition. Not powered or tested at our facility. Housing, fin core, and fan motor are intact with typical industrial wear. |
