Description
Allen-Bradley MPL-B330P-MJ72AA Servo Motor Wittenstein Alpha SP075S-MF1-5

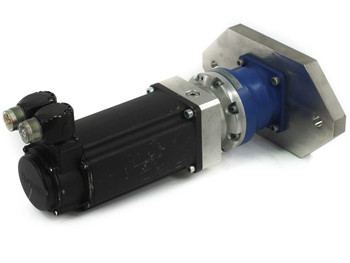

The Allen-Bradley MPL-B330P-MJ72AA is a compact, low-inertia brushless AC servo motor from Rockwell Automation's MP-Series, here mounted with a Wittenstein Alpha SP075S-MF1-5 inline planetary gearbox. The motor is rated for 460V RMS three-phase operation at up to 5000 RPM and includes a 24 VDC holding brake. The Wittenstein Alpha gearbox is lubricated for life and adds torque multiplication with a precision pinion gear output shaft, making this a ready-to-install servo drive assembly.
Specifications & What's Included
- Model: Allen-Bradley MPL-B330P-MJ72AA
- Series: MP-Series Low-Inertia (MPL), Series A
- Part Number: PN-12148
- Manufacturer: Rockwell Automation / Allen-Bradley
- Motor Type: Inverter Duty AC Servo Motor (Brushless)
- Voltage: 460V RMS L-L, 3-Phase
- Speed Rating: 5000 RPM Max
- Frequency Range: 0–334 Hz
- Power Rating: 1.8/2.4 kW/HP
- Time Rating: Continuous
- Continuous Stall Torque: 4.18 Nm / 37 lb-in
- Peak Current: 6.1 A (0-peak continuous)
- Back EMF Constant (Ke): 100 V 0-peak L-L/kRPM
- Resistance: 4.6 Ohms L-L at 25°C
- Brake Option: 24 VDC holding brake
- Frame Size: 115 mm
- Insulation Class: Class 180(H)
- Ambient Temperature Rating: 40°C
- Enclosure Rating: IP66 with Shaft Seal
- PWM Source: Voltage
- Compatible Drive Platform: Kinetix Series
- Connectors: Two rear multi-pin circular connectors (power and feedback)
- Country of Manufacture (Motor): Mexico
- Gearbox: Wittenstein Alpha SP075S-MF1-5-1E1-2S
- Gearbox Lubrication: Castrol Tribol 800/220, lubricated for life
- Gearbox Output: External pinion gear shaft
- Country of Manufacture (Gearbox): Germany
- Included: Motor and gearbox assembly — no additional cables or accessories
Applications
The Allen-Bradley MP-Series low-inertia servo motors are designed for high-performance motion control applications in industrial automation, robotics, CNC machining, packaging machinery, and material handling systems. They are a common choice in Kinetix-based servo systems, where the low rotor inertia allows for fast acceleration and deceleration cycles with precise positioning. The Wittenstein Alpha planetary gearbox increases output torque while reducing output speed, and the pinion gear output shaft is typical of rack-and-pinion linear drive systems used in CNC axes, gantry systems, and custom automation equipment. This combination of an Allen-Bradley brushless servo motor with a German-made Wittenstein Alpha gearbox is a professional-grade, purpose-built assembly suited to demanding motion control environments that require precision, repeatability, and IP66-rated environmental protection.

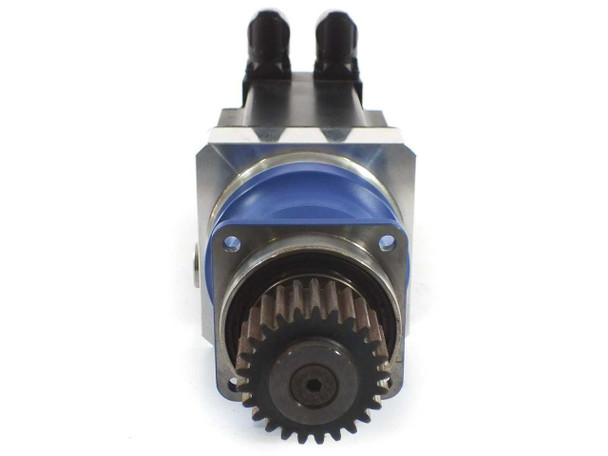

This Allen-Bradley MPL-B330P-MJ72AA brushless servo motor with Wittenstein Alpha SP075S-MF1-5 gearbox has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The motor body and gearbox housing are intact; the blue gearbox casing and mounting flange show normal service wear, and the pinion gear output shows some surface patina and wear on the teeth consistent with prior use. The multi-pin circular connectors at the rear appear undamaged. Please note that we may have multiple units in stock and the unit you receive may vary slightly from the one photographed, but will be functionally equivalent. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Allen-Bradley |
Model: |
MPL-B330P-MJ72AA |
MPN: |
MPL-B330P-MJ72AA |
Secondary Model: |
SP075S-MF1-5-1E1-2S |
Part Number: |
PN-12148 |
Series: |
MP-Series |
SKU: |
52316 |
Type: |
Low-Inertia Brushless AC Servo Motor with Gearbox |
Manufacturer: |
Rockwell Automation |
Gearbox Brand: |
Wittenstein Alpha |
Gearbox Model: |
SP075S-MF1-5-1E1-2S |
Voltage: |
460V RMS L-L, 3-Phase |
Phase: |
3-Phase |
Speed Rating: |
5000 RPM Max |
Frequency Range: |
0–334 Hz |
Continuous Stall Torque: |
4.18/37 Nm/lb-in |
Peak Current: |
6.1 A (0-peak continuous) |
Power Rating: |
1.8/2.4 kW/HP |
Time Rating: |
Continuous |
Brake Option: |
24 VDC Brake |
Frame Size: |
115 mm |
Insulation Class: |
Class 180(H) |
Ambient Temperature: |
40°C |
Enclosure Rating: |
IP66 with Shaft Seal |
PWM Source: |
Voltage |
Resistance: |
4.6 Ohms L-L, 25°C |
Back EMF Constant (Ke): |
100 V 0-peak L-L/kRPM |
Compatible Drive: |
Kinetix Series |
Output Shaft Type: |
Pinion gear (visible in photos) |
Motor Series Number: |
Series A |
Country/Region of Manufacture: |
Mexico |
Gearbox Country of Manufacture: |
Germany |
Seller Notes: |
Motor and Wittenstein Alpha gearbox assembly only — no additional cables or accessories included |
Condition Notes: |
This Allen-Bradley MPL-B330P-MJ72AA brushless servo motor with Wittenstein Alpha gearbox has been inspected and appears to be in good used condition. Pulled from a working environment. Normal service wear visible on gearbox and pinion. |
