Allen-Bradley MPL-B330P-HK72AA MP-Series Servo Motor w/ Wittenstein LP

Allen-Bradley MPL-B330P-HK72AA MP-Series Servo Motor w/ Wittenstein LP 090-M01-10

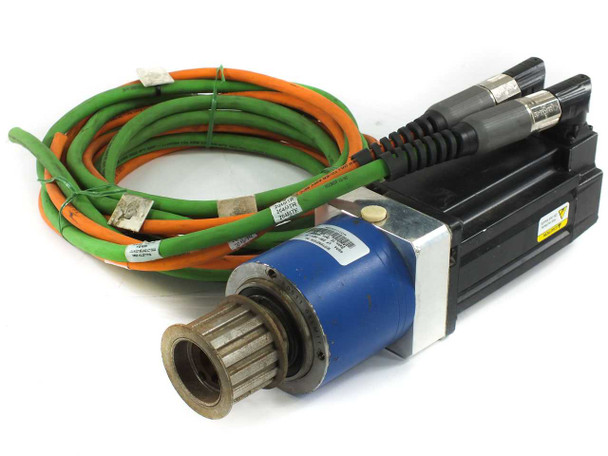

The Allen-Bradley MPL-B330P-HK72AA is a low-inertia, brushless AC servo motor from Rockwell Automation's MP-Series Kinetix line, here paired with a Wittenstein Alpha LP 090-M01-10-111 planetary gear reducer at a 10:1 ratio. The motor is rated for 460V RMS line-to-line, three-phase operation, with a maximum speed of 5000 RPM and a continuous power rating of 1.8/2.4 kW/HP. This combination of servo motor and inline planetary reducer is designed for high-precision, high-dynamic motion control applications where output torque multiplication and reduced reflected inertia are required.

Specifications & What's Included

• Make: Allen-Bradley (Rockwell Automation)
• Model: MPL-B330P-HK72AA
• Part Number: PN-12146
• Series: MP-Series / Kinetix Low-Inertia
• Series Revision: A
• Motor Type: Inverter Duty AC Brushless Servo Motor
• Input Voltage: 460 V RMS L-L, 3 Phase
• Power Rating: 1.8/2.4 kW/HP
• Max Speed: 5000 RPM
• Frequency Range: 0–334 Hz
• Time Rating: Continuous
• Stall Torque: 4.18/37 Nm/LB.IN
• Current: 6.1 Amps (0-Peak Continuous)
• Back-EMF Constant (Ke): 100 V 0-Peak L-L/kRPM
• Resistance: 4.6 Ohms L-L at 25°C
• Insulation Class: 180 (H)
• Ambient Temperature: 0–40°C (32–104°F)
• Enclosure Rating: IP66 with Shaft Seal
• PWM Source: Voltage

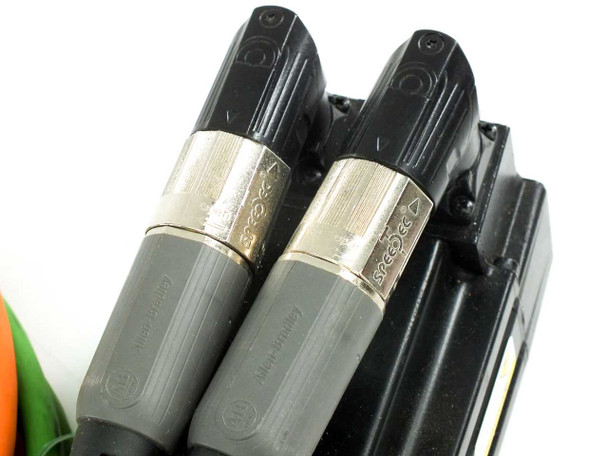

• Connector Type: SpeedTEC DIN (2 connectors — power and feedback)
• Certifications: CE, UL, CSA, EN60034-1, E146578
• Country of Manufacture: Mexico (per nameplate)
• Gear Reducer: Wittenstein Alpha LP 090-M01-10-111
• Gear Reducer Item No.: 10000967
• Gear Ratio: 10:1

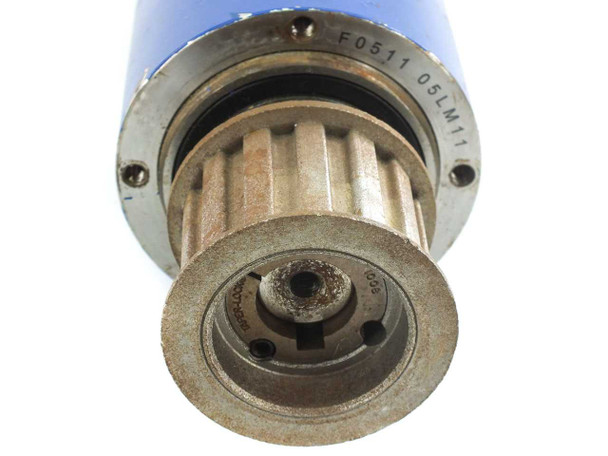

• Output: Toothed pulley hub / flange mount

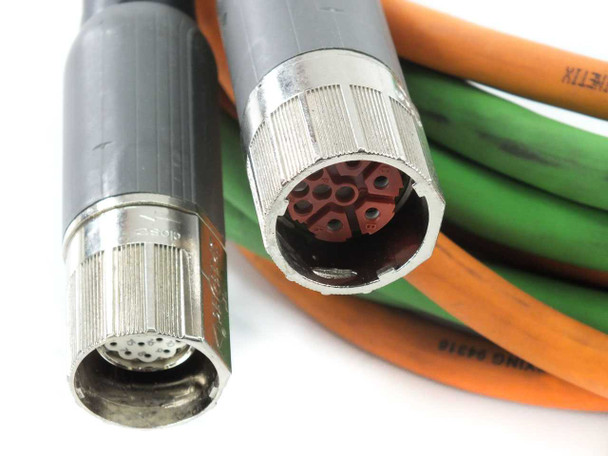

• Includes: Orange power cable and green feedback cable (SpeedTEC DIN connectors attached to motor end; opposite ends are cut — require re-termination before use)

Applications

The Allen-Bradley MP-Series low-inertia servo motors are used in high-performance motion control systems where compact size, rapid acceleration, and precise torque control are required. Paired with a planetary gear reducer, this assembly is well suited for applications such as CNC axis drives, robotic joints, automated assembly equipment, packaging machinery, and other servo-driven axes where torque multiplication and tight positional accuracy are needed. The Kinetix MP-Series is designed to work with Allen-Bradley Kinetix servo drives — including the Kinetix 6000, 6200, 6500, and 2000 families — within a Rockwell Automation Integrated Architecture motion control system. The IP66 shaft seal rating makes the motor suitable for environments where washdown or particulate exposure is a concern. The SpeedTEC DIN connector system supports a single cable family across the full MP-Series motor line, simplifying installation and cable management. This motor dates from late 2013 (date code 1312 per nameplate), placing it in the second generation of the Kinetix MP-Series platform that has been in production since the mid-2000s.
