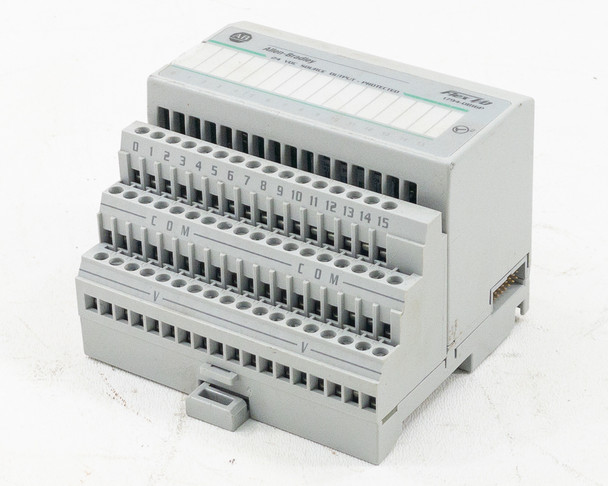

Allen-Bradley 1794-OB16P FLEX I/O 16-Pt 24VDC Source Output Module w/ 1794-TB3
16-point digital output module for FLEX I/O systems. Provides 24VDC current-sourcing outputs at 500 mA per channel, with integrated 1794-TB3 terminal base for DIN rail mounting.
Specifications & What's Included
- 16 outputs at 24VDC nominal (10–31.2V DC range)
- 500 mA per channel, 8.0 A total output rating
- Current sourcing (source output) configuration
- 0.5V DC max on-state voltage drop
- 1 mA minimum on-state current per channel
- Output protected per label marking
- Includes 1794-TB3 terminal base
- Compatible with 1794-TB2, TB3, TB3S, TB3K, TB3SK bases
Applications
FLEX I/O output modules connect to ControlLogix, SLC 500, FlexLogix, and MicroLogix control systems. Used in industrial automation for controlling 24VDC loads such as solenoids, indicator lights, and relay coils. The module interfaces via the FLEX I/O backplane bus and mounts directly to compatible terminal bases for compact panel integration.
Condition: Used

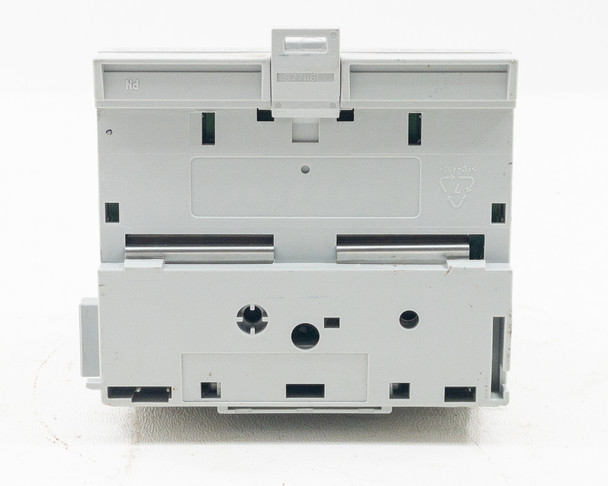

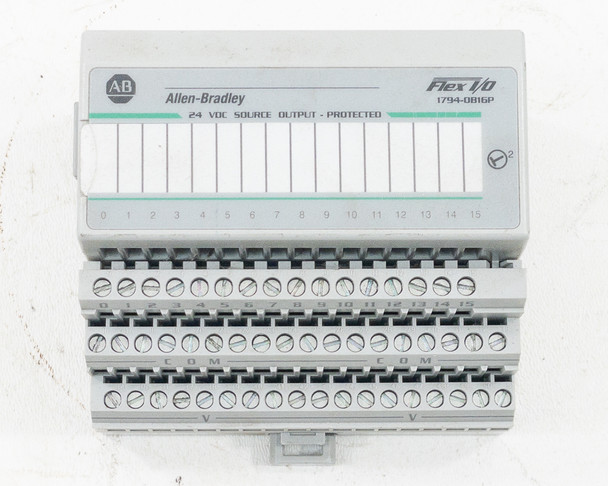

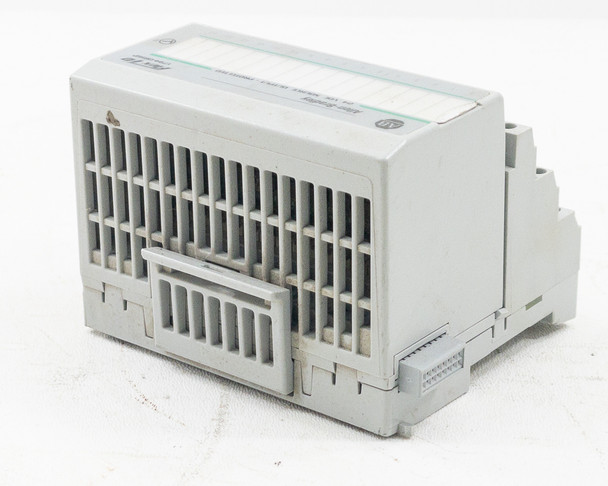

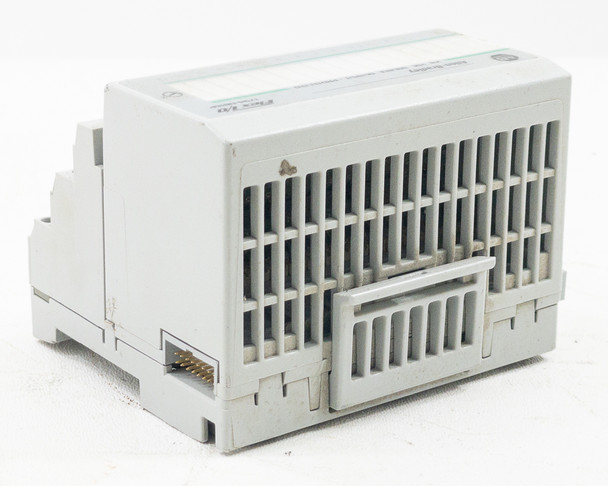

Allen-Bradley 1794-OB16P FLEX I/O 16-Point 24VDC Source Output Module with 1794-TB3 Terminal Base in used condition. This unit was removed from a large solar tester system and presents cosmetically well with an intact housing, clean and legible terminal labeling, and a complete 1794-TB3 terminal base with all terminal positions present. The backplane connector and module bus interface show no visible damage. A reliable industrial control component suitable for integration into FLEX I/O systems.
Allen-Bradley 1794-OB16P FLEX I/O 16-Point 24VDC Source Output Module with 1794-TB3 Terminal Base in used condition. This unit was removed from a large solar tester system and presents cosmetically well with an intact housing, clean and legible terminal labeling, and a complete 1794-TB3 terminal base with all terminal positions present. The backplane connector and module bus interface show no visible damage. A reliable industrial control component suitable for integration into FLEX I/O systems.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Allen-Bradley |
Model: |
1794-OB16P |
MPN: |
1794-OB16P |
Type: |
FLEX I/O Digital Output Module |
SKU: |
52322 |
Series: |
FLEX I/O 1794 Series |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes Allen-Bradley 1794-TB3 terminal base unit |
Country/Region of Manufacture: |
United States |
Form Factor: |
DIN Rail Mount / Card Module |
Number of Outputs: |
16 |
Output Type: |
Current Sourcing (Source Output) |
Output Voltage: |
24V DC nominal (10V DC min, 31.2V DC max) |
Max Output Current per Channel: |
500 mA |
Total Output Current Rating: |
8.0 A (16 outputs at 0.5 A each) |
Min On-State Output Current: |
1.0 mA per channel |
Max On-State Voltage Drop: |
0.5V DC |
Compatible Terminal Bases: |
1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK |
Included Terminal Base: |
1794-TB3 |
Compatible Systems: |
ControlLogix, SLC 500, FlexLogix, MicroLogix |
Interface: |
FLEX I/O Backplane / Module Bus |
Protection: |
Output Protected (per label marking) |
Condition Notes: |
Allen-Bradley 1794-OB16P FLEX I/O 24VDC Output Module w/ 1794-TB3 Terminal Base. Used, removed from solar tester. Clean cosmetics, intact housing, complete terminal base. Ready for use. |
