Allen-Bradley 1794-IB16 Flex I/O 16-Pt 24VDC Digital Input Module w/ 1794-TB3

(No reviews yet) Write a Review
SKU:
52320
MPN:
1794-IB16
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • Allen-Bradley 1794-IB16 Flex I/O 24VDC digital input module with 1794-TB3 terminal base — angled front-left view showing numbered input terminals 0–15 and COM/V rows

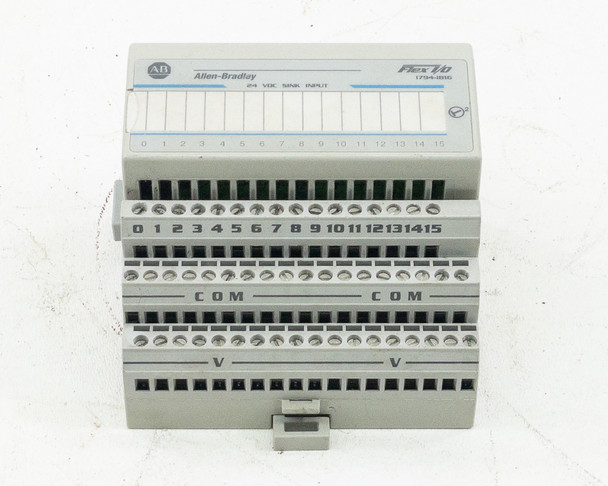

  • Allen-Bradley 1794-IB16 Flex I/O input module — front view showing Allen-Bradley and Flex I/O labeling, terminal rows numbered 0–15 with COM and V rails

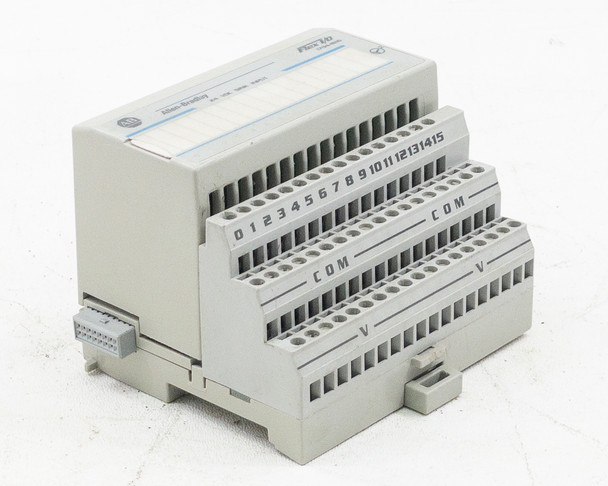

  • Allen-Bradley 1794-IB16 with 1794-TB3 terminal base — three-quarter right-front view showing full terminal block depth and DIN rail clip
  • Allen-Bradley 1794-IB16 Flex I/O module — top/rear view showing louvered ventilation housing and FlexBus connector side
  • Allen-Bradley 1794-IB16 — bottom view showing DIN rail mounting slot, module locking tab, and UL/certification markings
  • Allen-Bradley 1794-IB16 Flex I/O module — left side view showing FlexBus ribbon connector and DIN rail mount profile

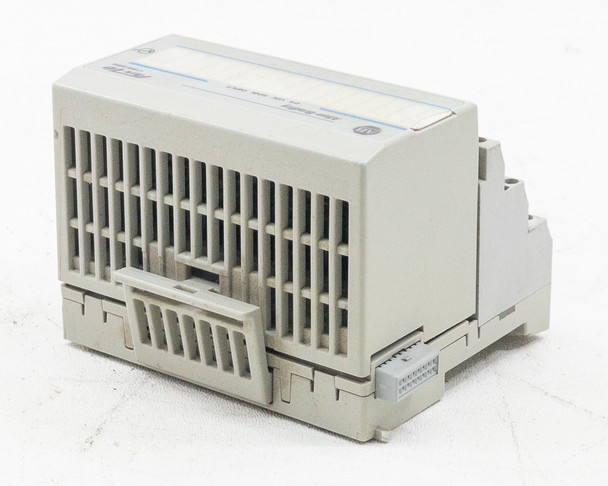

  • Allen-Bradley 1794-IB16 Flex I/O module — right side view showing louvered enclosure and label with Flex I/O branding
$150.00
Was: $300.00
Current Stock: 2

Sold Out

Description

Allen-Bradley 1794-IB16 Flex I/O 16-Pt 24VDC Digital Input Module w/ 1794-TB3

This is a 16-point digital input module for the Allen-Bradley Flex I/O 1794 series. It accepts 24VDC current-sinking inputs and communicates via FlexBus interface. Includes the 1794-TB3 terminal base for DIN rail mounting.

Specifications & What's Included

  • 16 digital inputs, 24VDC nominal
  • Input voltage range: 10V DC min to 31.2V DC max
  • Current-sinking type with 2.0–12.0 mA on-state current
  • Input impedance: 4.6 kΩ nominal
  • Max power dissipation: 6.1 W @ 31.2V DC
  • FlexBus communication interface (30 mA @ 5V DC)
  • Includes 1794-TB3 terminal base

Applications

Flex I/O input modules are used in manufacturing, process control, and machine automation systems where distributed I/O handling is required. This module integrates with Allen-Bradley CompactLogix, ControlLogix, and other compatible programmable controllers via the Flex I/O adapter network. Typical applications include discrete sensor monitoring, limit switches, and status signal acquisition in industrial control systems.

Condition: Used
Allen-Bradley 1794-IB16 Flex I/O 16-point 24VDC digital input module with 1794-TB3 terminal base in used condition. The module and terminal base are intact with no visible damage to the housing, terminal screws, or FlexBus connector. Unit shows typical cosmetic wear consistent with normal use. Sold as-is without functional testing or warranty. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
