Description
Airpax 205-1-1REC2-52-1-203 Circuit Breaker 20A 32VDC Delay Trip Aux Switch
DC circuit breaker with auxiliary switch contact. Rated for 20A full load current at 32V DC maximum, with 25A trip threshold and delay rating of 52. UL Listed with SR mark.
Specifications & What's Included
- Current Rating: 20A (F.L. Amps)
- Trip Current: 25A
- Voltage: 32V DC (Max)
- Auxiliary Switch: 10A, 250VAC
- Delay Trip Function: Yes (Rating 52)
- Stud terminals and flanged mounting
- Circuit breaker only, no accessories included
Applications
DC circuit breakers of this type are used in telecommunications equipment, industrial control systems, and aviation/aerospace applications requiring reliable branch circuit protection. The auxiliary switch enables remote indication and control functions. Delay trip ratings protect against nuisance trips from inrush currents while maintaining short-circuit protection. Commonly found in legacy telecom switchgear, power distribution panels, and ruggedized equipment where 32V DC systems operate.

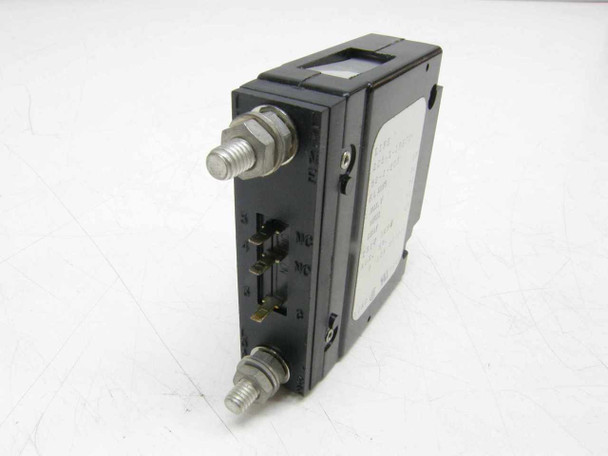

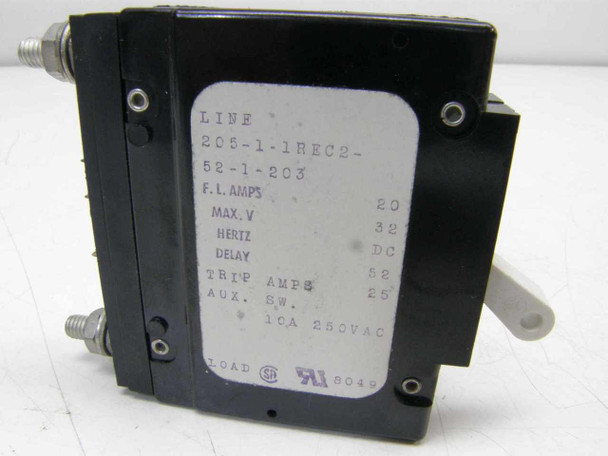

This Airpax 205-1-1REC2-52-1-203 DC Circuit Breaker has been inspected and is in good used condition. The unit shows normal surface wear consistent with prior service use. The rating label is intact and legible, stud terminals and auxiliary switch contacts appear undamaged, and the mounting flanges are present and intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Airpax |
Model: |
205-1-1REC2-52-1-203 |
MPN: |
205-1-1REC2-52-1-203 |
Type: |
DC Circuit Breaker with Auxiliary Switch |
SKU: |
36150 |
Current Rating (Amps): |
20A (F.L. Amps) |
Trip Current: |
25A |
Voltage Rating: |
32V DC (Max) |
Frequency: |
DC |
Delay Rating: |
52 |
Auxiliary Switch Rating: |
10A, 250VAC |
Condition: |
Used – Inspected |
Country/Region of Manufacture: |
United States |
Certifications: |
UL Listed (SR mark visible on label) |
Seller Notes: |
Sold as pictured; circuit breaker only, no additional accessories included. |
Condition Notes: |
Airpax 205-1-1REC2-52-1-203 DC circuit breaker inspected and in good used condition. Normal surface wear; label intact, stud terminals and aux switch contacts undamaged, mounting flanges present. |
