Description
Airpax 205-1-1REC2-52-1-100 Circuit Breaker 10A 250VAC DC Aux Switch Trip 12.5A
The Airpax 205-1-1REC2-52-1-100 is a single-pole magnetic circuit breaker rated for 10 amps full-load current at up to 250VAC and 32V DC. It features an integrated auxiliary switch (Aux SW) that provides a secondary signal contact — useful for remote indication or interlocking circuits when the breaker trips or is toggled. The unit mounts in a panel cutout with terminal stud connections on the line and load sides.
Specifications & What's Included
- Part Number: 205-1-1REC2-52-1-100
- Manufacturer: Airpax (Sensata Technologies)
- Full Load (FL) Amps: 10A
- Trip Amps: 12.5A
- Maximum Voltage (AC): 250VAC
- Maximum Voltage (DC): 32V DC
- Frequency Rating: DC
- Delay Code: 52
- Poles: 1 (single-pole)

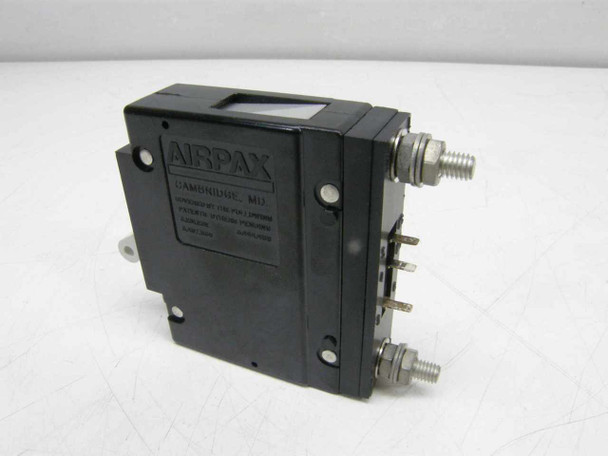

- Auxiliary Switch: Yes — integrated Aux SW contacts visible on rear
- Toggle Handle: White, lever-style, front-panel accessible
- Terminal Style: Stud terminals, line and load sides
- Mounting: Panel mount

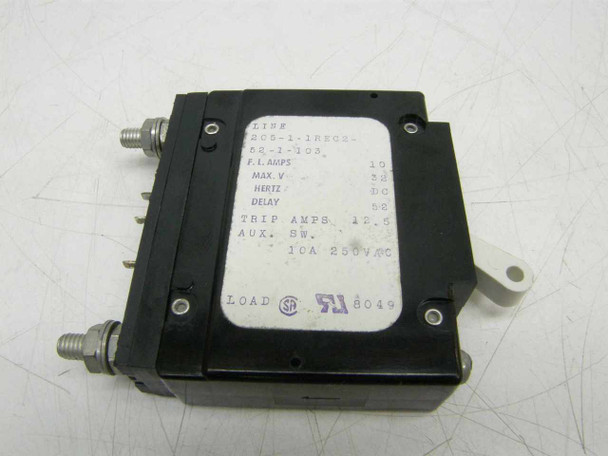

- Certifications: UL Listed, CSA Marked (visible on label)
- Series: Airpax 205 Series
- Includes: Breaker unit only
Applications
The Airpax 205 series is a line of magnetic hydraulic circuit breakers widely used in industrial equipment, military and aerospace systems, marine applications, and commercial electronics where reliable panel-mount branch-circuit protection is needed. The DC rating and auxiliary switch make this style of breaker common in telecom power systems, uninterruptible power supply (UPS) cabinets, DC-powered equipment racks, and custom control panels. The auxiliary switch contact allows the breaker's trip or on/off state to be monitored remotely or used to interlock other circuits — a feature frequently required in automated systems and equipment that must signal a fault condition to a controller or alarm. Airpax (now a Sensata Technologies brand) has produced this 205 series for decades, and these breakers remain in active use in both original equipment and maintenance/replacement applications across industrial and defense sectors.
This Airpax 205-1-1REC2-52-1-100 10A circuit breaker is a new open-box unit. It is new from the manufacturer but may have been stored for an extended period, could be past any printed shelf date, or is no longer in its original packaging. The breaker appears physically clean and undamaged in our photos, with the white toggle handle intact and terminal hardware present. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Airpax |
Model: |
205-1-1REC2-52-1-100 |
MPN: |
205-1-1REC2-52-1-100 |
Type: |
Magnetic Circuit Breaker with Auxiliary Switch |
SKU: |
36149 |
Amperage (FL Amps): |
10A |
Trip Amps: |
12.5A |
Voltage Rating: |
250VAC / 32V DC |
Current Rating: |
10A |
Hertz / Frequency: |
DC |
Delay: |
52 |
Auxiliary Switch: |
Yes |
Poles: |
1 |
Mounting Style: |
Panel Mount |
Series: |
205 Series |
Certifications: |
UL Listed, CSA |
Condition: |
New – Open Box |
Seller Notes: |
New open-box unit; breaker only, no additional accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Airpax 205-1-1REC2-52-1-100 10A 250VAC circuit breaker. New open-box — new from manufacturer but may have been stored long-term or removed from original packaging. Appears clean and undamaged. |
