Advanced Energy MDX Pinnacle 8kW DC Power Supply B5181854DD 400V 3-Phase
The Advanced Energy MDX Pinnacle is a high-power DC magnetron drive power supply designed for physical vapor deposition (PVD) sputtering, plasma etch, and related thin-film semiconductor processes. It delivers up to 8 kW of pulsed DC output and accepts three-phase AC input, making it suitable for demanding production and R&D environments. The MDX Pinnacle series was Advanced Energy's flagship DC process power platform for the semiconductor and flat-panel display industries, combining arc management, interlock monitoring, and digital process feedback in a compact rackmount chassis.
Specifications & What's Included
- Part Number (P/N): B5181854DD
- Model Number (M/N): 3152352-122C
- Output Power: 8 kW pulsed DC
- Input Voltage: 400V AC
- Input Current: 22A

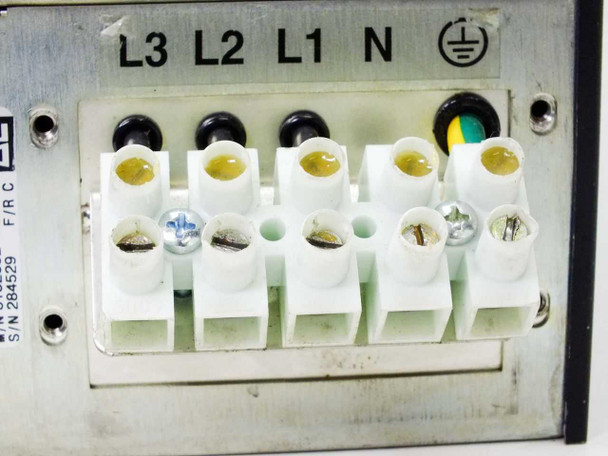

- Input Phase: Three-phase (L1, L2, L3, N)
- Input Frequency: 50/60 Hz
- Form Factor: Rack mount, 3U

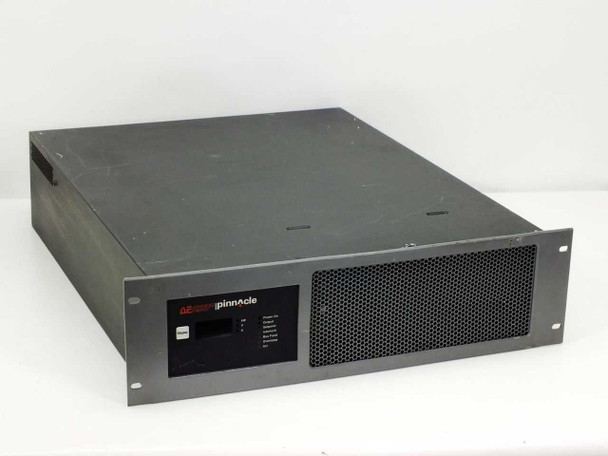

- Front Panel: Digital display (kW, V, A readout); Display button; Status LEDs — Power On, Output, Setpoint, Interlock, Bus Fault, Overtemp, Arc
- Rear Interfaces: Profibus port (labeled), DB9 Remote connector, DIP switch configuration array

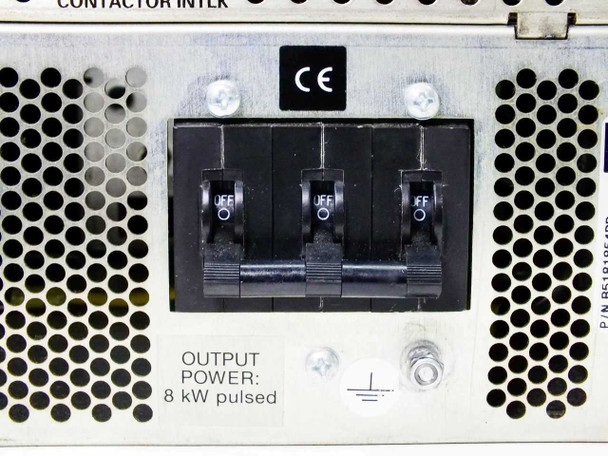

- Output Connection: Three-pole output bus terminal block with contactor/circuit breakers
- Certifications: CE
- Unit only — no additional cables or accessories confirmed
Applications
The Advanced Energy MDX Pinnacle series is used primarily in PVD (physical vapor deposition) sputtering systems, where a DC power supply drives a magnetron cathode to deposit thin films of metals, oxides, and other materials onto substrates. These systems are central to semiconductor wafer fabrication, flat-panel display manufacturing, optical coating, and hard-surface coating processes. The MDX Pinnacle's arc management and interlock features make it well suited for reactive sputtering and other processes where plasma instability is a concern. Profibus connectivity allows integration into automated process control systems common in semiconductor fabs. The MDX Pinnacle series was introduced in the late 1990s and became a widely deployed platform in both 200mm and 300mm semiconductor fabs, as well as in university and commercial R&D thin-film labs. Units from this series remain in active use in legacy process tools and refurbished sputter systems worldwide.
This Advanced Energy MDX Pinnacle 8kW DC magnetron drive power supply has been inspected and appears to be in good condition. It was pulled from a working environment where it was in active use. The front panel shows normal surface wear and light scuffing consistent with rack-mounted service use. The chassis shows light marks on the top cover. Rear connectors, the Profibus port, and DB9 Remote interface appear intact. The three-pole output circuit breakers are present and the input terminal block is complete with all connections. Please view our photo set and contact us if you have any questions.
