Advance V-2E75-S-2-TP Mark III Energy Saver Slimline Ballast 277V 60Hz 2-Lamp
The Advance Transformer Co. V-2E75-S-2-TP is a Mark III Energy Saver magnetic slimline fluorescent ballast rated for 277 volts at 60 Hz. It is designed to drive two T12 slimline fluorescent lamps and is built to Class P and Type HL specifications for Type 1 Outdoor installations. This unit carries no PCBs and is CBM certified, UL listed (NRTL/C), and CSA approved. Manufactured in the USA by Advance Transformer Co. of Chicago, Illinois.
Specifications & What's Included
- Model: V-2E75-S-2-TP (also referenced as V2E75-S-TP)
- Series: Mark III Energy Saver
- Type: Magnetic Slimline Fluorescent Ballast
- Input Voltage: 277V
- Frequency: 60 Hz
- Number of Lamps: 2

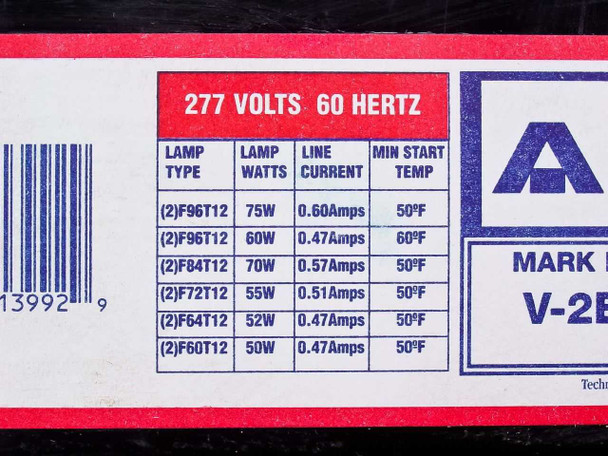

- Lamp Compatibility: T12 Slimline — (2) F96T12, (2) F84T12, (2) F72T12, (2) F64T12, (2) F60T12
- Maximum Lamp Watts: 75W (at 2× F96T12, 75W)
- Line Current: 0.60A max (at 2× F96T12, 75W)
- Lamp Lead Voltage: 775V (Red-Blue leads — high voltage)
- Minimum Starting Temperature: 50°F (60°F for 2× F96T12 at 60W)
- Power Factor: High Power Factor
- Ballast Class: Class P
- Ballast Type: Type HL, Type 1 Outdoor
- Connection Type: Series Ballast
- Sound Rating: C
- PCBs: None
- Wiring: White, Black, Yellow, Yellow (line input); Red, Blue (lamp leads)
- Certifications: UL Listed (NRTL/C, File 7846), CSA, CBM Certified
- Country of Manufacture: USA (Advance Transformer Co., Chicago, IL 60618)
- Includes: Original Advance Ballast box
Applications
Slimline fluorescent ballasts like the Advance Mark III Energy Saver are used in commercial and industrial fluorescent lighting fixtures — including strip lights, shop lights, and troffer fixtures — that use single-pin T12 slimline lamps. The 277V rating makes this ballast particularly suited for commercial building lighting systems wired on 277V branch circuits, which are common in large commercial and industrial facilities across North America where three-phase 480/277V distribution is standard. The Mark III Energy Saver designation indicates this is a more energy-efficient design compared to earlier standard-efficiency Advance magnetic ballasts, providing reduced energy consumption while maintaining compatibility with standard T12 slimline lamp sizes from 60" (F60T12) through 96" (F96T12). The Type 1 Outdoor classification means it is rated for use in both indoor and outdoor enclosed luminaires. Advance Transformer Co. (later acquired by Philips) was one of the leading ballast manufacturers in the United States from the mid-20th century onward; the Mark III series was produced from the 1980s through the 1990s and remains widely sought for replacement and retrofit applications in aging commercial lighting systems that still use T12 slimline lamps.

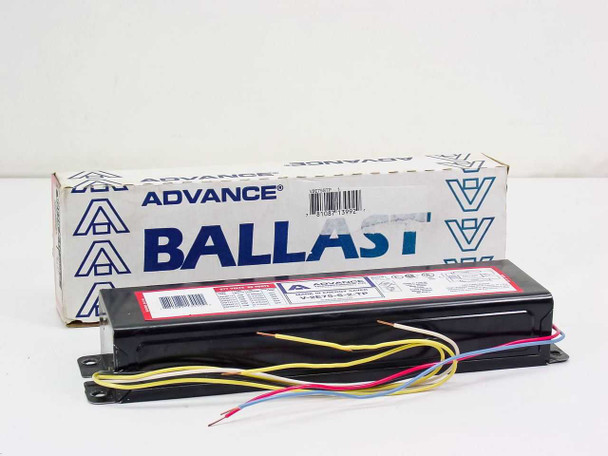

This Advance Transformer Co. V-2E75-S-2-TP Mark III Energy Saver Slimline Ballast is new and comes in its original Advance Ballast box. The unit shows no signs of use or wear and appears to be in factory condition. The box shows some light shelf wear consistent with storage. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Advance Transformer Co. |
Model: |
V-2E75-S-2-TP |
MPN: |
V-2E75-S-2-TP |
Secondary Model: |
V2E75-S-TP |
SKU: |
43997 |
Type: |
Magnetic Slimline Fluorescent Ballast |
Series: |
Mark III Energy Saver |
Voltage: |
277V |
Frequency: |
60 Hz |
Number of Lamps: |
2 |
Lamp Type: |
T12 Slimline (F60T12–F96T12) |
Compatible Lamps: |
(2) F96T12, F84T12, F72T12, F64T12, F60T12 |
Max Lamp Watts: |
75W (2x F96T12) |
Power Factor: |
High Power Factor |
Ballast Class: |
Class P |
Ballast Type: |
Type HL, Type 1 Outdoor, Series Ballast |
Sound Rating: |
C |
PCBs: |
No PCBs |
Certifications: |
UL Listed (NRTL/C), CSA, CBM Certified |
Country/Region of Manufacture: |
United States |
Minimum Starting Temperature: |
50°F (most lamp types) |
Lamp Lead Voltage: |
775V (Red-Blue leads) |
Wiring: |
White, Black, Yellow, Yellow (line); Red, Blue (lamp) |
Seller Notes: |
Includes original Advance Ballast box. |
Condition Notes: |
This Advance V-2E75-S-2-TP Mark III Energy Saver Slimline Ballast is new in its original box. The unit is unused and in factory condition. Box shows light shelf wear from storage. |
