Mimir

Mimir 515 Optical Energy Controller UV Lamp Power Supply 1000W 208V 50-60Hz

(No reviews yet) Write a Review
SKU:
50342
MPN:
515
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
101.00 LBS
Shipping:
Calculated at Checkout
  • Mimir 515 Optical Energy Controller – front panel view showing MODEL 515 nameplate, intensity controls, channel display, and power button
  • Mimir 515 Optical Energy Controller – front three-quarter view showing full chassis and color-coded front panel button strip
  • Mimir 515 Optical Energy Controller – rear panel showing Optical Probe XLR, Interlock, Lamp Anode+/Cathode- terminals, fan, and attached power cord
  • Mimir Instruments Inc. Model 515 rear label – shows model 515, serial number 390008, date of manufacture 03/81, Santa Clara California USA
  • Mimir 515 front panel detail – INTENSITY section with Calib and Set buttons for Channel 1 and Channel 2, and main display matrix
  • Mimir 515 front panel right section – OPTICAL ENERGY CONTROLLER label, POWER button with green indicator lamp, and Lamp Hours meter
  • Mimir 515 Hobbs lamp hours meter close-up – reads approximately 3973.8 total hours
  • Mimir 515 rear panel – alternate angle showing Optical Probe, Interlock, Lamp connections, fan grille, and rating plate sticker
  • Mimir 515 rear panel detail – Optical Probe XLR connector, Interlock terminals, LAMP Anode+ and Cathode- banana terminals, rating plate visible
  • Mimir 515 rear panel close-up – LAMP connection terminals (Anode+, Cathode-), Interlock, Fan labeled 120V 20W Max., partial rating plate
  • Mimir 515 rear panel – fan grille detail showing dust accumulation on fan guard, Mimir Instruments label, and rating plate
  • Mimir 515 rear rating plate close-up – OPTICAL ENERGY CONTROLLER, Lamp Power: Rated 1000W, High 1400W, Idle 900W, Low 750W; Mains: 50-60Hz, 208V, 1590W
  • Mimir 515 power cord plug close-up – NEMA L6-20P yellow twist-lock plug, rated 20A 250V
  • Mimir 515 interior view – top removed showing main transformer, internal wiring harness (red, blue, orange wires), control boards, and cooling fan
  • Mimir 515 interior detail – large black power transformer with internal Mimir-branded control boards and wiring
  • Mimir 515 interior detail – two Mimir-branded power control boards with heatsinks and discrete components; DEC date code label visible on chassis
  • Mimir 515 interior alternate angle – cooling fan assembly, power control boards with heatsinks, main transformer, and wiring
  • Mimir 515 interior close-up – large blue capacitor, relay bank, and power wiring showing internal construction
  • Mimir 515 packaged for shipping – unit boxed and secured on wooden pallet with banding, ready for freight shipment
$2,200.00
Was: $3,800.00
Current Stock: 1

Sold Out

Description

Mimir 515 Optical Energy Controller UV Lamp Power Supply 1000W 208V 50-60Hz

Optical energy controller and UV lamp power supply manufactured by Mimir Instruments Inc. Manages UV lamp intensity across two independent channels with adjustable power settings from 750W to 1400W.

Specifications & What's Included

  • Model 515 / MPN 515
  • Input: 208V 50-60Hz (1590W draw) via NEMA L6-20P connector
  • Lamp Power: 750W (low), 900W (idle), 1000W (rated), 1400W (high)
  • Two independent intensity control channels with per-channel calibration
  • Optical probe input (XLR), interlock, lamp anode/cathode connectors, 120V 20W fan supply
  • Hobbs mechanical lamp hours meter (reads ~3973.8 total hours)
  • Benchtop form factor, manufactured March 1981
  • Includes attached power cord with NEMA L6-20P plug; no UV lamp included

Applications

UV lamp controllers of this type were used in semiconductor photolithography systems and optical measurement equipment requiring precise intensity control. The dual-channel design supported multi-wavelength or redundant UV lamp configurations. This unit is compatible with UV cure systems and laboratory optical assemblies from the 1980s onward that utilize standard lamp connector formats.

Condition: Used
This Mimir 515 Optical Energy Controller has been inspected and appears to be in good condition. It was pulled from a working environment where it was in use. The chassis shows cosmetic wear consistent with age — the front panel has scattered scuffs, surface discoloration, and general grime, and the rear panel shows dirt and some surface marks. The fan grille has dust accumulation. Internally the unit is intact with all boards, wiring, and the main transformer in place. The Hobbs lamp hours meter reads approximately 3973.8 total hours. The attached power cord with NEMA L6-20P (20A 250V) twist-lock plug is included. No UV lamp is included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Mimir Instruments Inc.
Model:
515
MPN:
515
Type:
Optical Energy Controller / UV Lamp Power Supply
SKU:
50342
Condition:
Used – Pulled from Working Environment
Lamp Power Rated:
1000W
Lamp Power High:
1400W
Lamp Power Idle:
900W
Lamp Power Low:
750W
Mains Voltage:
208V
Mains Frequency:
50-60Hz
Mains Power Draw:
1590W
Number of Intensity Channels:
2 (Channel 1, Channel 2)
Front Panel Controls:
Intensity Calib/Set per channel; Set/Range/Channel/Control/Display/Lamp buttons
Rear Connectors:
Optical Probe (XLR), Interlock, Lamp Anode+, Lamp Cathode-, Fan
Fan Supply:
120V 20W Max.
Power Connector:
NEMA L6-20P (20A 250V twist-lock)
Lamp Hours Meter:
Hobbs mechanical totalizer; reads approx. 3973.8 total hours
Form Factor:
Benchtop / Desktop
Manufacture Date:
03/1981
Country/Region of Manufacture:
United States
Application / Use Case:
UV lamp intensity control for semiconductor photolithography, optical systems
Seller Notes:
Includes attached power cord with NEMA L6-20P plug. No lamp included.
Condition Notes:
Mimir 515 Optical Energy Controller pulled from a working environment. Chassis shows cosmetic wear, scuffs, and grime consistent with age. Internally intact. Lamp hours meter reads ~3973.8 hrs. Includes power cord. No UV lamp included.
View AllClose

Related Products

Related Products

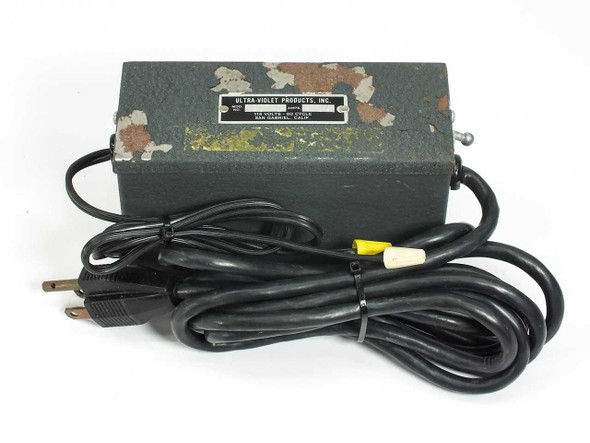

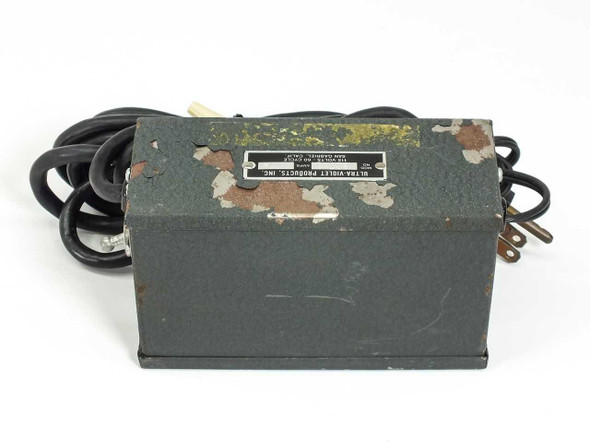

Ultra-Violet Products SCT-1 UV pencil lamp power supply – top and front view showing rating plate and output cord with yellow connector cap Ultra-Violet Products SCT-1 UV lamp power supply – bottom and rear view showing peeling paint on enclosure
