Description
ADC PowerWorx PWX-002FGCSD10PWDP 23in 2U GMT Fuse Panel Dual Feed 10/10
The ADC PowerWorx PWX-002FGCSD10PWDP is a 23-inch, 2U rack-mount GMT fuse distribution panel from ADC's PowerWorx Traditional GMT Series. It provides dual-feed DC power distribution with 10 fuse positions per feed for a total of 20 GMT fuse slots, all accessible from the front of the panel. Designed for telecom and central office DC power distribution environments, it accepts negative 24 or 48 VDC input via two-hole compression lugs and distributes power through screw-down barrier terminal strip outputs.
Specifications & What's Included
- Model / CAT#: PWX-002FGCSD10PWDP
- Series: PowerWorx Traditional GMT Series
- Form factor: 23-inch rack mount, 2U
- Fuse type: GMT
- Fuse configuration: Dual feed, 10 positions per feed (10/10 = 20 total)
- Maximum amps per fuse: 15A
- Input voltage: NEG -24 VDC or -48 VDC
- Maximum input current: 65A
- Input termination: Two-hole compression lug (BATT A and BATT B)
- Output termination: Screw-down barrier terminal strip (RTN A and RTN B, 10 positions each)

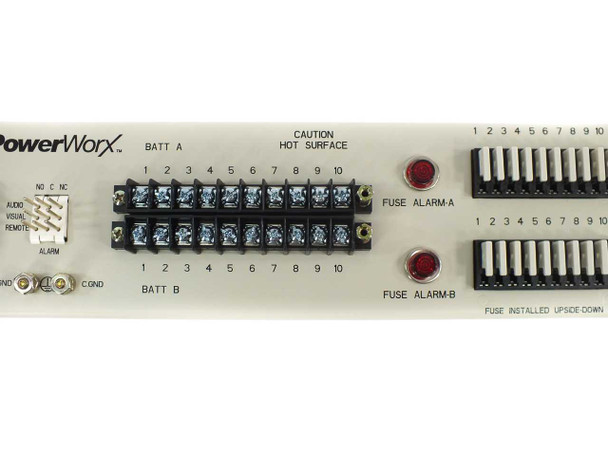

- Alarm indicators: FUSE ALARM-A and FUSE ALARM-B red LEDs; POWER-A and POWER-B green LEDs
- Alarm contact: Wire wrap connection with NO / C / NC contacts (Audio, Visual, Remote alarm outputs)
- Access: Total front access — fuses, terminals, and indicators all front-facing
- Fuse installation: Fuses installed upside-down (per panel label)

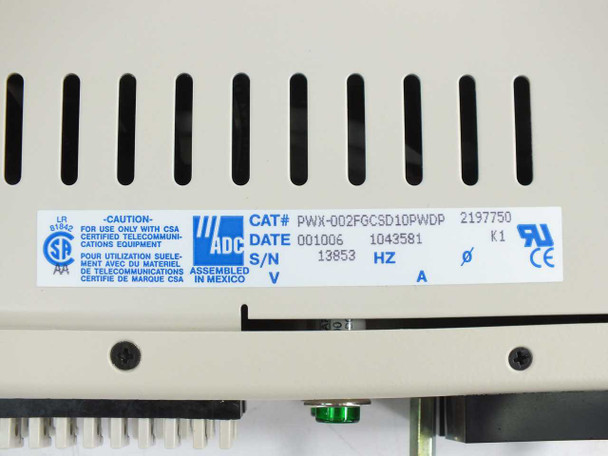

- Certifications: UL listed, CE marked, CSA certified for telecommunications equipment
- Country of manufacture: Mexico

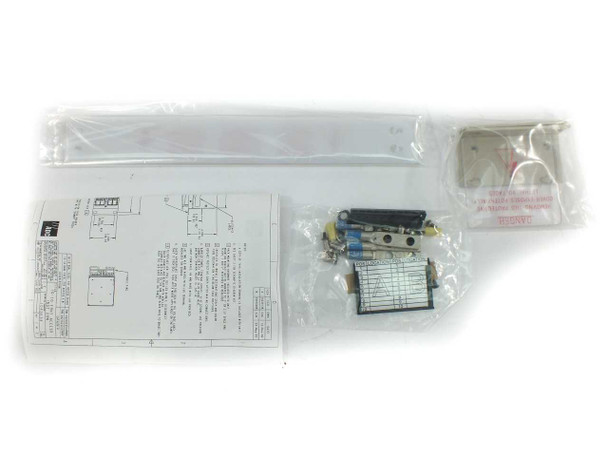

- Includes: Rack ears, mounting hardware, accessory pack, and reference schematic / installation drawing
Applications
The ADC PowerWorx GMT fuse panel is used in telecommunications central offices, network equipment rooms, and data center DC power distribution systems. These panels sit between a DC plant (rectifier/battery string at -48V or -24V) and the individual telecom or network equipment loads, protecting each circuit with its own GMT fuse. The 10/10 dual-feed configuration allows two independent battery or rectifier sources to feed the panel simultaneously, supporting the redundant power architectures that are standard in carrier-grade and central office environments. The PowerWorx front-access design eliminates the need to pull the panel from the rack to change fuses or inspect terminals — a practical requirement in dense rack installations. ADC's PowerWorx line has been a widely used choice in telco CO and OSP (outside plant) hut installations, DSL remote terminals, and similar DC-powered infrastructure sites.
This ADC PowerWorx PWX-002FGCSD10PWDP 23-inch 2U GMT fuse panel is new and unused. It has been removed from its original packaging but shows no signs of use or wear. The unit includes the original accessory pack — rack ears, mounting hardware, and documentation — as shown in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
ADC |
Model: |
PWX-002FGCSD10PWDP |
MPN: |
PWX-002FGCSD10PWDP |
Type: |
GMT Fuse Distribution Panel |
SKU: |
28589 |
Series: |
PowerWorx Traditional GMT Series |
Form Factor: |
Rack Mount, 2U, 23 in |
Number of Fuse Positions: |
20 (10 per feed, dual feed) |
Fuse Type: |
GMT |
Input Voltage: |
-24 VDC or -48 VDC |
Max Input Current: |
65A |
Max Amps Per Fuse: |
15A |
Input Connector: |
Two-hole compression lug |
Output Connector: |
Screw-down barrier terminal strip |
Alarm Connection: |
Wire wrap alarm contact (NO/C/NC) |
Alarm Indicators: |
Power-on LED and fuse alarm LED per feed |
Access: |
Total front access |
Certifications: |
UL, CE, CSA (certified telecommunications equipment) |
Country/Region of Manufacture: |
Mexico |
Seller Notes: |
New out of original box; includes rack ears, mounting hardware, and accessory pack shown in photos. |
Condition: |
New – Out of Box |
Condition Notes: |
ADC PowerWorx PWX-002FGCSD10PWDP GMT fuse panel is new and unused, out of original box. Includes rack ears, mounting hardware, and accessories shown in photos. No signs of use or wear. |
