Description
ADC PowerWorx PWX-002FGCSD10PWDP GMT Fuse Panel 23in 2U Telecom Rackmount -48V
Dual-feed fuse distribution panel for -48V DC telecom and industrial systems. Provides 20 fuse positions (10 per feed) with GMT cartridge fuses rated to 15A each, mounted in a 2U 23-inch rackmount form factor.
Specifications & What's Included
- Input: -24V or -48V DC, 65A maximum
- 20 GMT fuse positions (dual feed configuration)
- LED alarm indicators for Fuse Alarm A and Fuse Alarm B
- Dual compression lug input connectors; screw-down barrier terminals for output
- Audio, visual, and remote alarm contacts (NO/C/NC)
- UL, CE, CSA certified

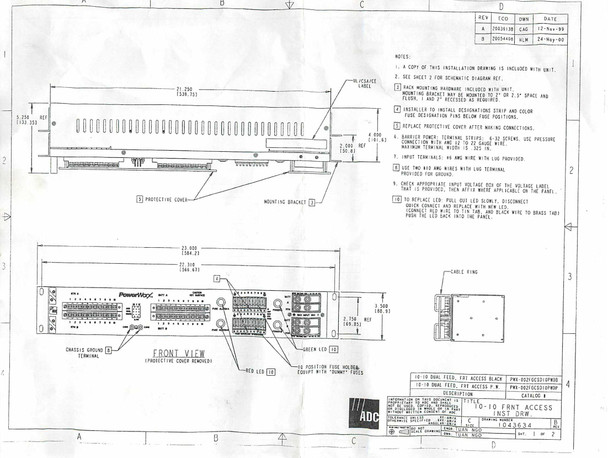

- Includes installation drawing, mounting bracket, and hardware
Applications
GMT fuse panels distribute power in -48V DC telecom infrastructure, including central office systems, carrier equipment, and industrial backup power systems. Historically used in legacy and current POTS/DSL network environments. The dual-feed configuration supports redundant power paths and load balancing across separate sources.
Condition: Open Box

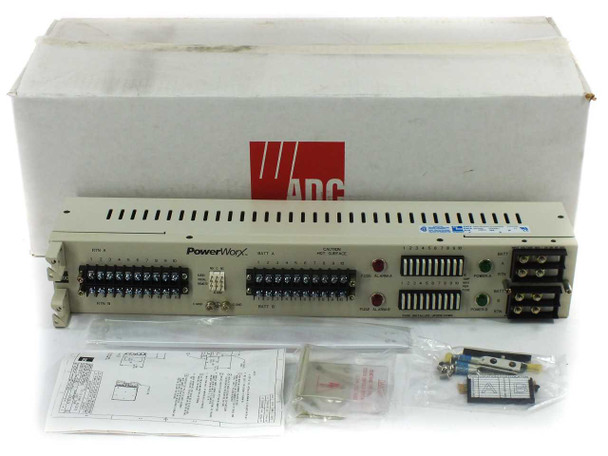

This ADC PowerWorx PWX-002FGCSD10PWDP GMT Fuse Panel is new and unused in open-box condition. The panel itself shows no signs of use or wear. Original accessories — including the installation drawing, mounting bracket, and hardware — are present in sealed bags as visible in the photos. The original ADC product box is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This ADC PowerWorx PWX-002FGCSD10PWDP GMT Fuse Panel is new and unused in open-box condition. The panel itself shows no signs of use or wear. Original accessories — including the installation drawing, mounting bracket, and hardware — are present in sealed bags as visible in the photos. The original ADC product box is included. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
ADC |
Model: |
PWX-002FGCSD10PWDP |
MPN: |
PWX-002FGCSD10PWDP |
Type: |
GMT Fuse Panel |
SKU: |
28400 |
Series: |
PowerWorx Traditional GMT Series |
Form Factor: |
2U Rackmount |
Rack Size: |
23 Inch |
Input Voltage: |
-24 or -48 VDC |
Max Input Current: |
65A |
Fuse Type: |
GMT (Glass Midget Tubular) |
Max Amps Per Fuse: |
15A |
Number of Fuse Positions: |
20 (10 per feed, dual feed) |
Power Feed Configuration: |
Dual Feed (Feed A and Feed B) |
Input Connector Type: |
Two-Hole Compression Lug |
Output Connector Type: |
Screw-Down Barrier Terminal Strip |
Alarm Connection: |
Wire Wrap |
Alarm Indicators: |
Fuse Alarm A and Fuse Alarm B (LED) |
Alarm Contacts: |
Audio, Visual, Remote (NO/C/NC) |
Access: |
Total Front Access |
Certifications: |
UL, CE, CSA |
Country/Region of Manufacture: |
Mexico |
Date Code: |
001006 (October 2000) |
Condition: |
New – Open Box |
Seller Notes: |
Includes installation drawing, mounting bracket, and hardware accessories. |
Condition Notes: |
ADC PowerWorx PWX-002FGCSD10PWDP GMT Fuse Panel — new, unused, open-box. No wear or use. Accessories (installation drawing, mounting bracket, hardware) included in sealed bags. Original box included. |
