Description
ABB ACS355-03E-07A3-4 VFD AC Drive 3kW 3HP 380-480V 3-Phase w/ Basic Panel
The ABB ACS355-03E-07A3-4 is a three-phase variable frequency drive (VFD) rated at 3 kW (3 HP), designed for controlling AC induction and permanent magnet motors in industrial machine and automation applications. It features vector control for precise speed and torque regulation, and comes equipped with ABB's Basic Control Panel — a single-line numeric display panel used to control the drive, set parameters, and copy settings between drives.
Specifications & What's Included

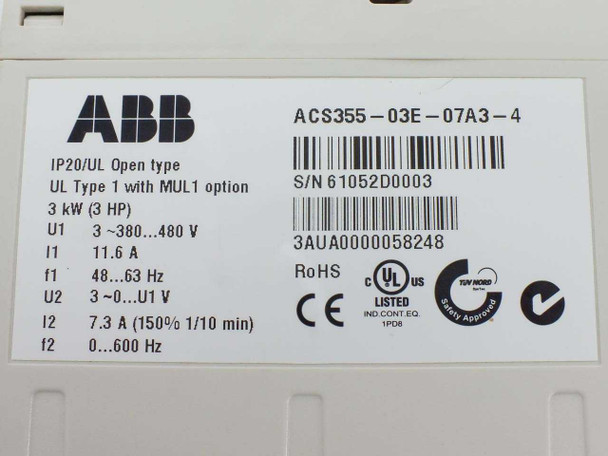

- Part Number: ACS355-03E-07A3-4
- Power Rating: 3 kW / 3 HP
- Input Voltage: 3~ 380...480 V
- Input Current: 11.6 A
- Input Frequency: 48...63 Hz
- Output Voltage: 0...U1 V (variable)
- Output Current: 7.3 A (150% overload for 1/10 min)
- Output Frequency Range: 0...600 Hz
- Phase: Three-phase input
- Enclosure Rating: IP20 / UL Open Type; UL Type 1 with MUL1 option
- Control Method: Vector control (asynchronous and permanent magnet motors)

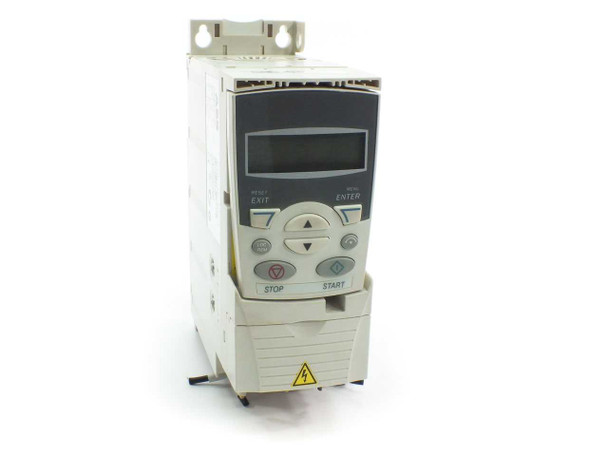

- Control Panel: Basic Control Panel with single-line numeric display, STOP/START, navigation buttons
- Certifications: UL Listed, CE, RoHS, TÜV Nord Safety Approved

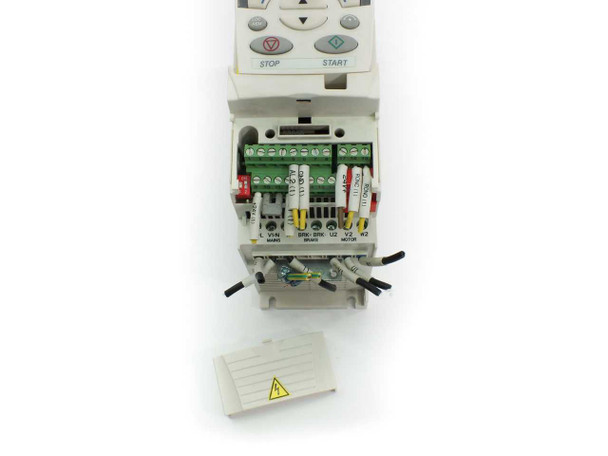

- Bottom terminal block visible with power (MAINS), motor (MOTOR), and control wiring terminals
- Includes: Drive unit with attached Basic Control Panel
Applications
The ACS355 is ABB's compact micro drive series aimed at machine builders, system integrators, OEMs, and panel builders. It is commonly used in material handling conveyor systems, food and beverage processing lines, rubber and plastic processing machinery, woodworking equipment, and pumps and fans requiring variable speed control. The drive's IP20 cabinet-mount form factor and unified height/depth profile make it straightforward to integrate into control panel enclosures. With support for a wide range of fieldbus adapters (PROFIBUS, DeviceNet, Modbus, CANopen, and others via optional adapter modules), the ACS355 fits into both standalone and networked automation architectures. The ACS355 series was introduced in the mid-2000s and remains a widely deployed ABB drive in light industrial and OEM machine applications worldwide.
This ABB ACS355-03E-07A3-4 Variable Frequency Drive has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use and functional. The unit includes the Basic Control Panel. The exterior shows normal wear consistent with prior installation use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ABB |
Model: |
ACS355-03E-07A3-4 |
MPN: |
ACS355-03E-07A3-4 |
SKU: |
51893 |
Type: |
Variable Frequency Drive (VFD) / AC Motor Drive |
Power Rating: |
3 kW (3 HP) |
Input Voltage: |
3~ 380...480 V |
Input Current: |
11.6 A |
Input Frequency: |
48...63 Hz |
Output Voltage: |
0...U1 V (variable) |
Output Current: |
7.3 A (150% 1/10 min) |
Output Frequency: |
0...600 Hz |
Phase: |
Three Phase |
Enclosure Rating: |
IP20 / UL Open Type / UL Type 1 with MUL1 option |
Control Method: |
Vector Control |
Compatible Motor Types: |
Asynchronous (induction) and permanent magnet motors |
Control Panel: |
Basic Control Panel (single-line numeric display) |
Certifications: |
UL Listed, CE, RoHS, TÜV Nord |
Form Factor: |
Panel Mount / Cabinet Mount |
Country/Region of Manufacture: |
Finland |
Seller Notes: |
Includes attached Basic Control Panel. Drive only — no additional cables or accessories. |
Condition Notes: |
This ABB ACS355-03E-07A3-4 VFD has been inspected and is in good condition, pulled from a working environment where it was in use and functional. Includes Basic Control Panel. Normal wear from prior use. |
