ABB ACS355-03E-04A1-4 VFD 2HP 1.5kW 3-Phase 380-480V Sensorless Vector Drive
The ABB ACS355-03E-04A1-4 is a compact variable frequency drive (VFD) rated at 1.5 kW (2 HP), designed for three-phase AC motor control in industrial machinery applications. It uses sensorless vector control to manage both asynchronous (induction) motors and permanent magnet motors without the need for a shaft encoder. This unit carries the MUL1 option module and is rated IP20 / UL Open Type, making it suited for cabinet or panel installation.
Specifications & What's Included

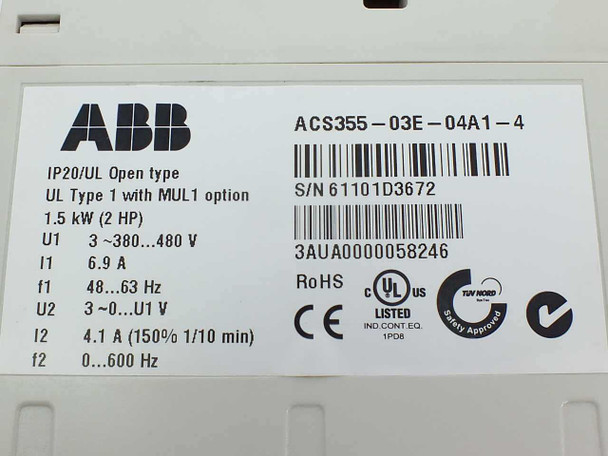

- Model: ACS355-03E-04A1-4
- Part Number: 3AUA0000058246
- Power Rating: 1.5 kW / 2 HP
- Input: 3-Phase, 380–480V AC
- Input Current (I1): 6.9 A
- Input Frequency (f1): 48–63 Hz
- Output Voltage (U2): 3-Phase, 0 to U1 V
- Output Current (I2): 4.1 A (150% for 10 min overload capacity)
- Output Frequency (f2): 0–600 Hz
- Control Method: Sensorless vector control
- Option Module: MUL1
- Enclosure: IP20 / UL Open Type
- UL Listing: UL Type 1 with MUL1 option
- Certifications: UL Listed, CE, RoHS, TÜV Safety Approved

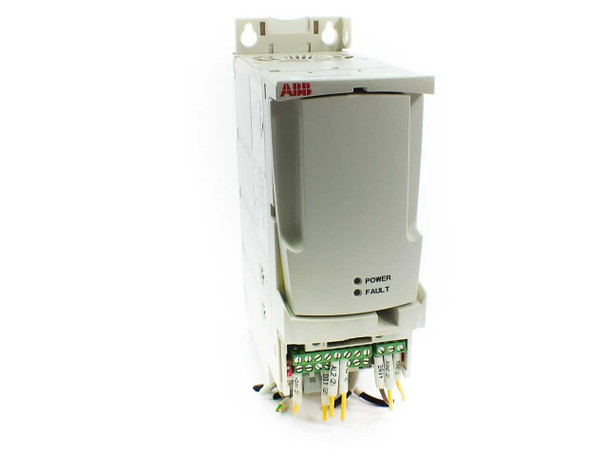

- Front panel: POWER and FAULT indicator LEDs

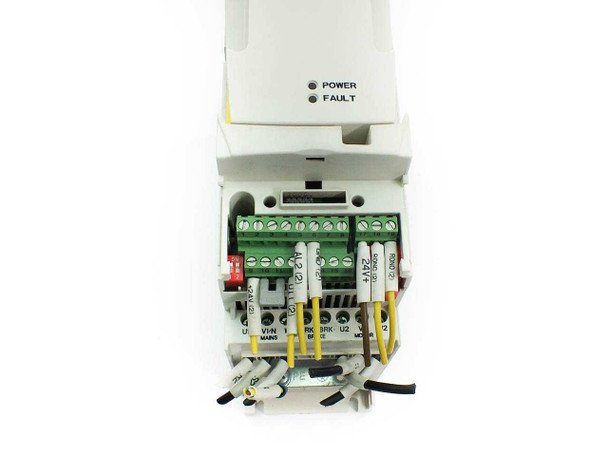

- Terminal block: Screw-type power and control terminals visible at base
- Unit only — no accessories included
Applications
The ABB ACS355 series is a micro drive intended for machine builder and OEM applications including material handling conveyors, food and beverage processing lines, and the processing of rubber, plastic, and wood. As a variable frequency drive, it controls AC motor speed and torque by varying the output frequency and voltage, which reduces energy consumption and mechanical stress compared to across-the-line starting. The sensorless vector control mode gives it strong low-speed torque capability without requiring a feedback encoder — useful in applications where precise speed regulation is needed but adding an encoder is not practical. The ACS355 family dates from the 2000s–2010s and remains a widely deployed drive in light industrial and packaging machinery worldwide. It is a drop-in replacement candidate for other ACS355 units of the same rating and is compatible with ABB's range of fieldbus adapter modules for integration into PLC-controlled systems.
This ABB ACS355-03E-04A1-4 2HP Variable Frequency Drive has been inspected and appears to be in good condition. It was pulled from a factory that closed. The unit shows normal wear consistent with previous industrial use. The enclosure, terminal block, and indicator LEDs are intact and show no signs of physical damage. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
ABB |
Model: |
ACS355-03E-04A1-4 |
MPN: |
ACS355-03E-04A1-4 |
Secondary Model: |
3AUA0000058246 |
SKU: |
51894 |
Type: |
Variable Frequency Drive (VFD) |
Power Rating: |
1.5 kW (2 HP) |
Input Voltage: |
3-Phase 380-480V AC |
Input Current: |
6.9 A |
Output Voltage: |
3-Phase 0 to U1 V |
Output Current: |
4.1 A (150% / 10 min) |
Input Frequency: |
48-63 Hz |
Output Frequency: |
0-600 Hz |
Phase: |
Three Phase |
Control Method: |
Sensorless Vector Control |
Enclosure Rating: |
IP20 / UL Open Type |
UL Listing: |
UL Type 1 with MUL1 option |
Certifications: |
UL, CE, RoHS, TÜV |
Form Factor: |
Panel/Cabinet Mount |
Option Module: |
MUL1 |
Country/Region of Manufacture: |
Finland |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; pulled from a closed factory. No accessories included. |
Condition Notes: |
ABB ACS355-03E-04A1-4 2HP VFD inspected and in good condition. Pulled from a closed factory. Normal wear from previous industrial use. No damage observed. |
