3M UBF 510-F ETFE Ultra Barrier Solar Film Top Sheet 352mm Wide per Meter

3M UBF 510-F ETFE Ultra Barrier Solar Film Top Sheet 352mm Wide per Meter

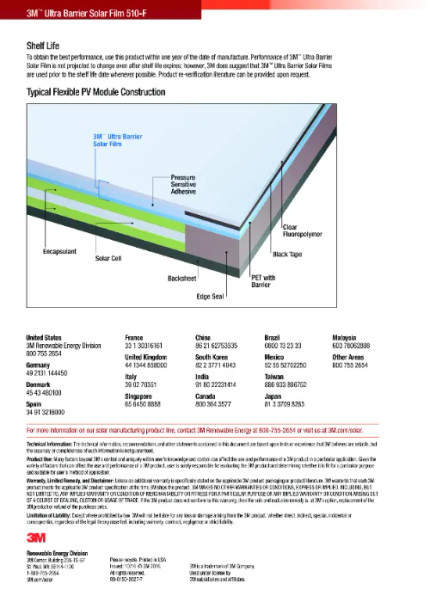

The 3M UBF 510-F is a multi-layer ETFE (ethylene tetrafluoroethylene) barrier film designed as a front sheet / top sheet encapsulant for lightweight, flexible thin-film photovoltaic modules. It functions as a glass replacement in flexible solar panel constructions, providing a transparent protective front layer between the solar cells and the environment. The film integrates a pressure-sensitive adhesive layer for bonding to edge seals and is engineered for use in laminated flexible PV module stacks including encapsulant, solar cell, and backsheet layers.

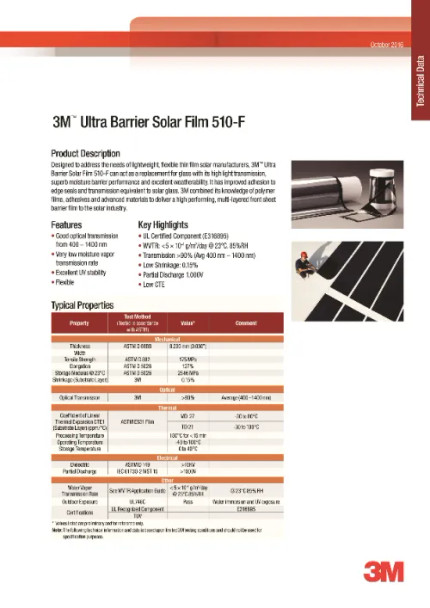

Specifications & What's Included

• Model: 3M UBF 510-F
• Material: ETFE (Ethylene Tetrafluoroethylene), multi-layer construction
• Width: 352 mm
• Unit of sale: 1 meter per unit (increase quantity for multiple meters)

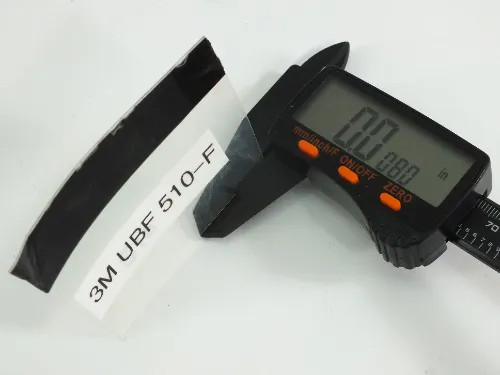

• Thickness: 0.333 mm (13.10 mil) — ASTM D6988
• Tensile Strength: 175 MPa — ASTM D882
• Elongation: 12% — ASTM D882
• Shrinkage at 23°C (balanced layer): 0.15% — ASTM 3M
• Optical Transmission: >80% average, 400–1400 nm
• Low Shrinkage: 0.15%
• Dielectric / Partial Discharge: >1,000V — ASTM D719 / IEC 61730-2 MST 11
• Water Vapor Transmission Rate (WVTR): <5 × 10⁻⁴ g/m²/day @ 23°C, 85% RH
• Coefficient of Linear Thermal Expansion (CTE): Low CTE
• Operating Temperature: −40°C to 100°C
• Processing Temperature: 100°C for approximately 10 minutes
• UV Stability: Yes
• Certifications: UL Certified Component (E316895)
• Manufacture Date: 2016

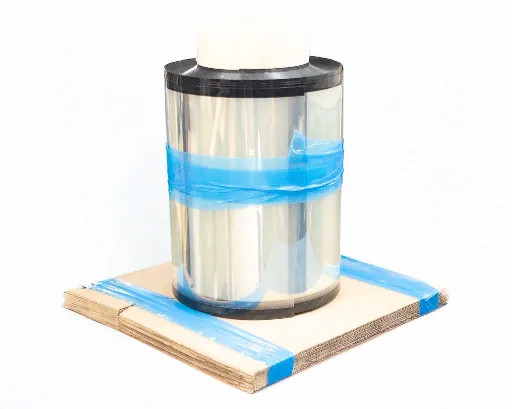

• Storage: Plastic-sealed rolls in original packaging
• Source: Originally purchased by Solopower (Portland, OR) or Dow Solar (San Jose, CA)

Applications

The 3M UBF 510-F is designed for use as the front sheet in flexible thin-film photovoltaic module construction, serving as a lightweight alternative to rigid solar glass. It was developed specifically for flexible CIGS (copper indium gallium selenide) and other thin-film solar cell technologies where conformability and low weight are required. This film was used by thin-film solar manufacturers including Solopower and Dow Solar (producers of flexible CIGS panels) during the 2010s manufacturing era. It is suited for research and development, prototype module fabrication, and small-scale or specialty PV manufacturing operations that require a certified, multi-layer ETFE front sheet. Buyers include solar panel R&D labs, academic institutions, and engineering teams working with flexible PV module construction.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
