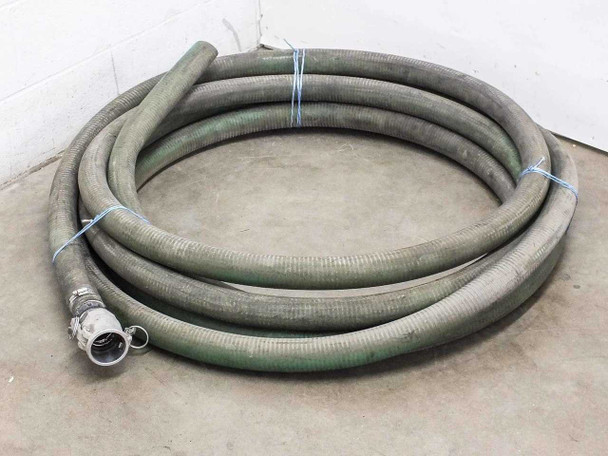

2 Inch x 50 Ft Flexible Transfer Hose Aluminum Cam Lock Coupling PT 20D
This is approximately 50 feet of 2-inch diameter flexible transfer hose fitted with an aluminum Type D cam lock (cam lever) coupling marked PT 20D. The hose features a corrugated, wire-reinforced flexible construction with a green inner liner, designed for suction and discharge transfer applications. The aluminum cam lock coupling provides a fast, tool-free connection using the standard cam lever locking system widely used in fluid transfer setups.
Specifications & What's Included

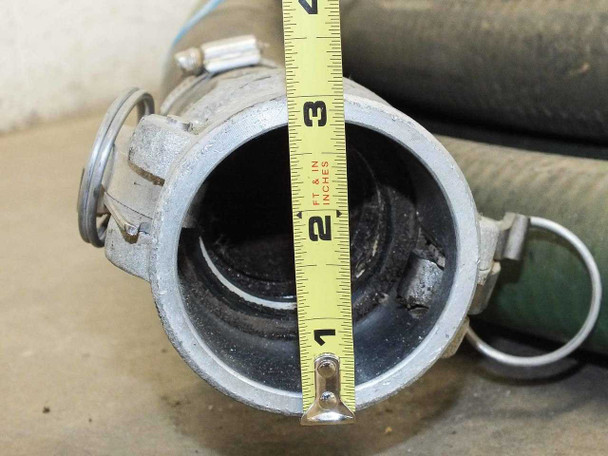

- Hose inner diameter: 2 inches
- Hose length: approximately 50 ft
- Hose construction: flexible corrugated / wire-reinforced with green inner liner
- Coupling type: Type D cam lock (cam lever) fitting
- Coupling designation: PT 20D
- Coupling material: aluminum

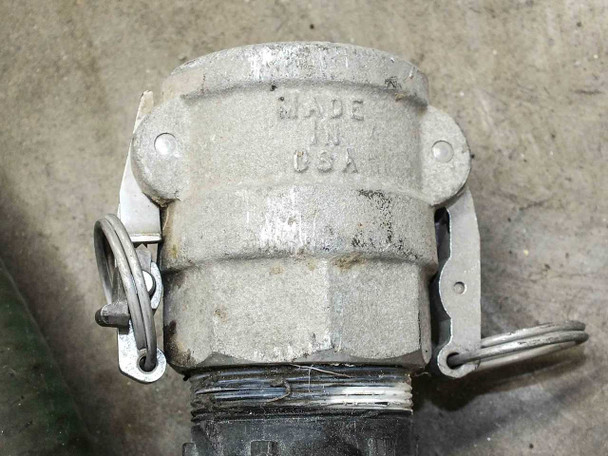

- Country of manufacture (coupling): Made in USA (visible on casting)

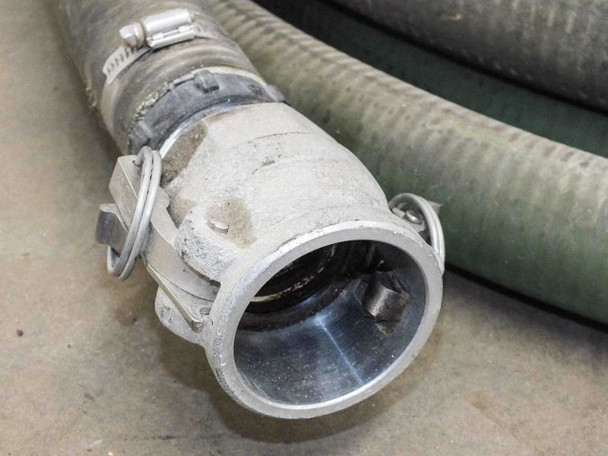

- Coupling attachment: stainless hose clamp at hose-to-coupling junction
- Both cam lever arms present on coupling
Applications
Cam lock transfer hoses like this are standard equipment in agriculture, construction, industrial processing, and fuel/water transfer operations. The Type D cam lock fitting is one of the most common coupling configurations in the cam-and-groove system (per MIL-C-27487 and similar standards), designed to connect to a Type C male adapter for a secure, leak-resistant connection without tools. A 2-inch diameter at 50 feet is a common configuration for pump suction and discharge lines — used to move water, fertilizer, light petroleum products, and other compatible fluids between tanks, trucks, ponds, and processing equipment. These hoses are found on farms, at construction sites, in municipal water operations, and in industrial plant settings where quick-connect fluid transfer is needed. The cam lever system allows one person to make or break a connection in seconds, which makes it a practical choice anywhere hoses need to be frequently connected and disconnected.

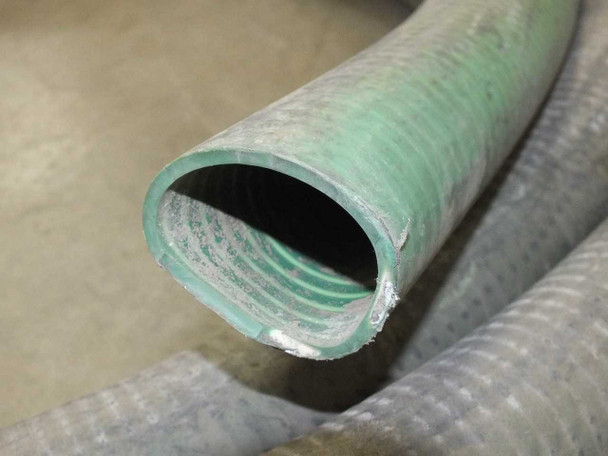

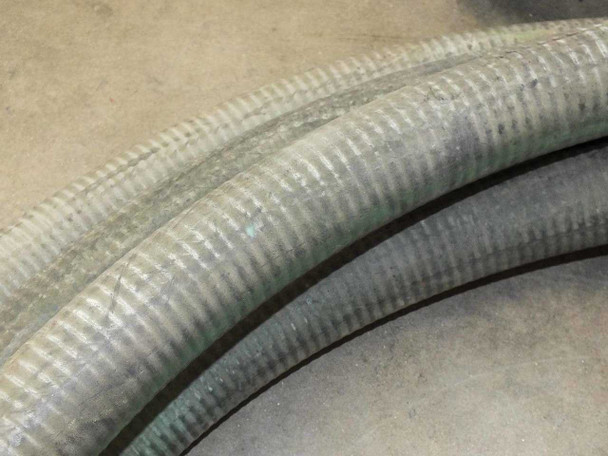

This 2-inch x 50 ft flexible transfer hose with aluminum Type D cam lock coupling (PT 20D) has been inspected and appears to be in good condition. It was pulled from a working environment where it was actively in use. The hose body shows surface weathering and some discoloration consistent with outdoor or industrial service, as visible in the photos. The aluminum cam lock coupling is intact with both lever arms present and functional; some surface oxidation and dirt are visible on the casting. The inner liner appears intact based on the visible cross-section. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
PT 20D |
MPN: |
PT 20D |
Type: |
Flexible Transfer Hose with Cam Lock Coupling |
SKU: |
47508 |
Hose Inner Diameter: |
2 in |
Hose Length: |
Approximately 50 ft |
Coupling Type: |
Type D Cam Lock (Cam Lever) |
Coupling Material: |
Aluminum |
Hose Construction: |
Flexible corrugated / wire-reinforced |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Approximately 50 ft of 2-inch transfer hose with aluminum Type D cam lock coupling attached. |
Condition Notes: |
2-inch x 50 ft transfer hose with aluminum PT 20D cam lock coupling. Pulled from working use. Hose shows surface weathering; coupling intact with both levers. Inner liner appears intact. Inspected and in good condition. |
