Zyxel ES-1016B Rev B1 16-Port 10/100 Ethernet Switch Board MoSys 68HC705J1A

(No reviews yet) Write a Review
SKU:
21523
MPN:
ES-1016B
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

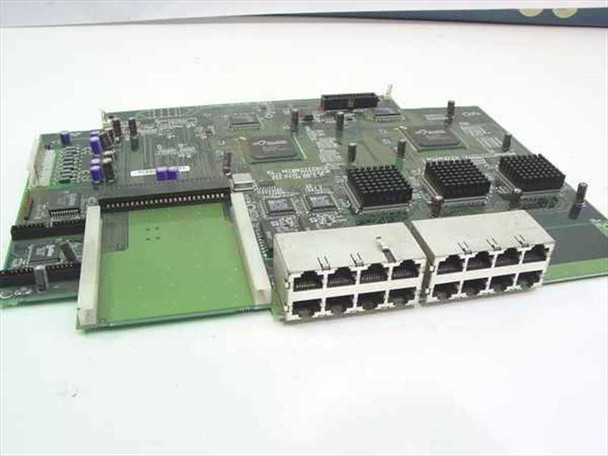

  • Zyxel ES-1016B Rev B1 Ethernet switch board — top view showing 16 RJ-45 ports, MoSys controller, and multiple ICs

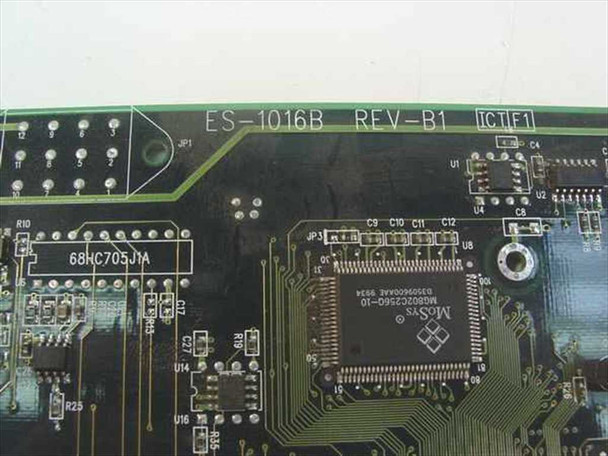

  • Zyxel ES-1016B Rev B1 PCB close-up showing board label, MoSys chip markings, and 68HC705J1A microcontroller

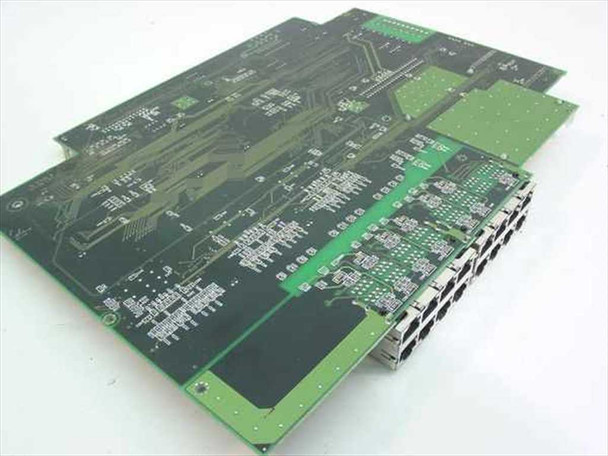

  • Zyxel ES-1016B Rev B1 Ethernet board — angled rear view showing PCB underside and RJ-45 port cluster
$45.00
Was: $90.00
Current Stock: 1

Sold Out

Description

Zyxel ES-1016B Rev B1 16-Port 10/100 Ethernet Switch Board MoSys 68HC705J1A

This is a 16-port Ethernet switch board from Zyxel's ES-1016 series. It functions as the core switching module for routing Fast Ethernet traffic across network connections.

Specifications & What's Included

  • Model: ES-1016B Rev B1
  • 16 RJ-45 ports, 10/100 Mbps Fast Ethernet
  • MoSys controller chipset (MoSys 0305600XA8 0034)
  • Motorola 68HC705J1A microcontroller
  • Unmanaged switch board
  • Form factor: PCB/board module only
  • Manufactured in Taiwan
  • Board only; no chassis or power supply included

Applications

This switch board was used in Zyxel ES-1016 series unmanaged switches, common in small business and departmental networks during the 2000s. The board handles Layer 2 packet switching for mixed 10 and 100 Mbps Ethernet segments. It is compatible with ES-1016 series chassis and serves as a direct replacement or repair component for those devices.

Condition: Used
This Zyxel ES-1016B Rev B1 16-port Ethernet switch board has been inspected and is in good used condition. It was pulled from a working environment where it was previously in active use. The board shows normal light wear consistent with service use. All 16 RJ-45 ports appear intact and undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
ZyXEL
Model:
ES-1016B
MPN:
ES-1016B
Hardware Revision:
Rev B1
Type:
Ethernet Switch Board
SKU:
21523
Number of Ports:
16
Port Type:
RJ-45
Network Speed:
10/100 Mbps Fast Ethernet
Form Factor:
PCB / Board Module
Main Controller Chipset:
MoSys (MoSys 0305600XA8 0034)
Microcontroller:
Motorola 68HC705J1A
Management Type:
Unmanaged
Connector Type:
RJ-45
Country/Region of Manufacture:
Taiwan
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; no chassis or power supply included.
Compatible With:
Zyxel ES-1016 series switches
Condition Notes:
Zyxel ES-1016B Rev B1 16-port Ethernet switch board. Inspected, in good used condition. Pulled from a working environment. All 16 RJ-45 ports intact. Please view photos and contact us with questions.
