Description
Zycad XP-140 Hardware Simulation Accelerator P/N 101291 Rev A 3-Board 100-240V
Hardware logic simulation accelerator manufactured by Zycad for EDA (Electronic Design Automation) workstations. This unit provides dedicated simulation acceleration for hardware design verification and testing.
Specifications & What's Included
- Model: XP-140 (MPN 101291, Rev A)

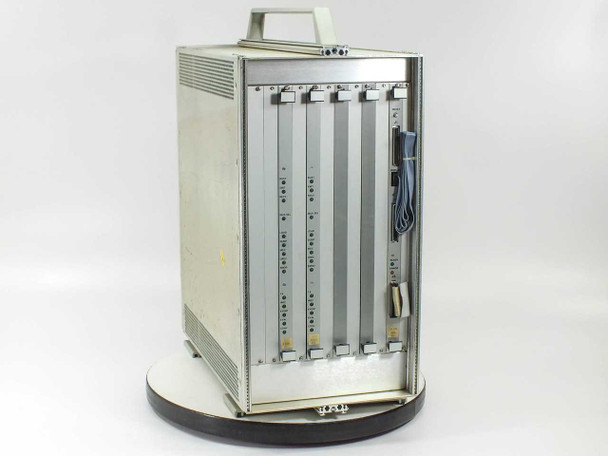

- Configuration: 3-board assembly (1x CBUSIB + 2x SM boards)

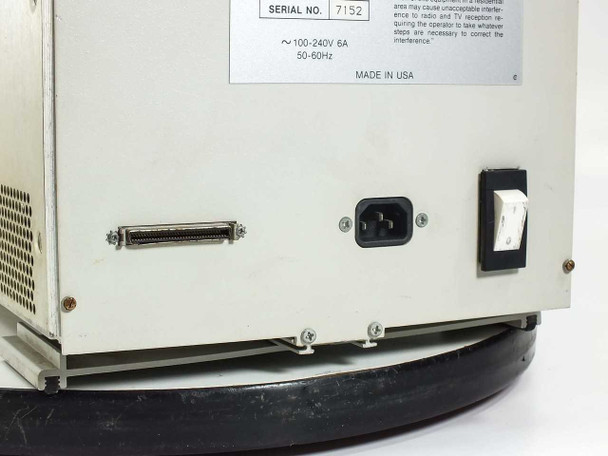

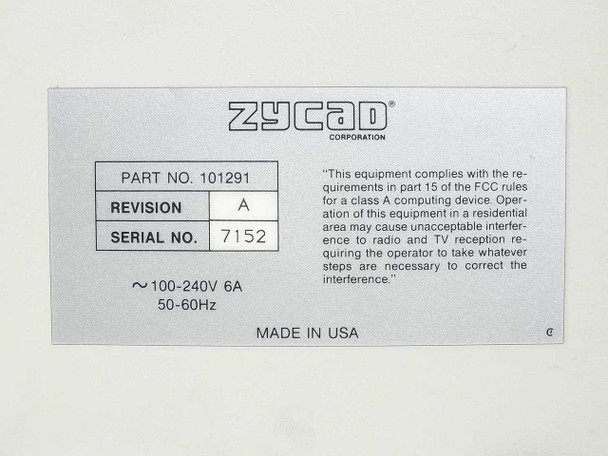

- Power: 100-240V AC, 6A, 50-60Hz

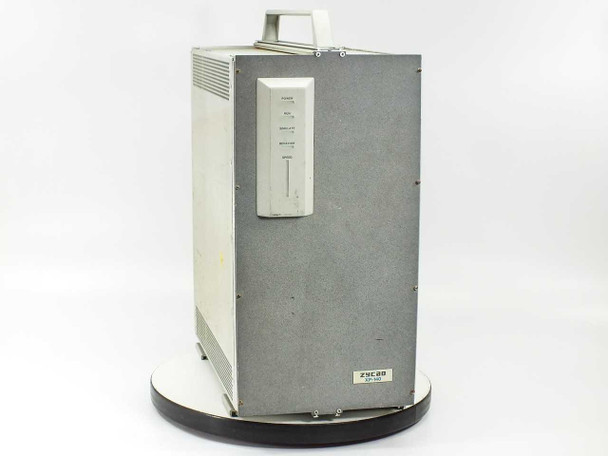

- Form Factor: Tower chassis with carry handle
- Host Interface: Ribbon cable / display header connectors

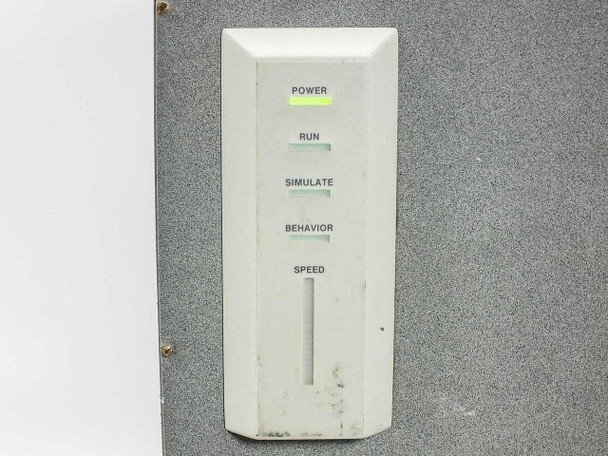

- Status Indicators: 16 LED indicators including POWER, RUN, SIMULATE, BUSY, XMIT, RECV, and others
Applications
The XP-140 was used for hardware logic simulation and acceleration in EDA environments during the 1990s. These accelerators interfaced with host workstations via ribbon cable to provide dedicated simulation processing for ASIC and FPGA design verification. Typical applications included pre-silicon validation, gate-level simulation, and behavioral testing of complex digital designs on engineering workstations.
Condition: Used

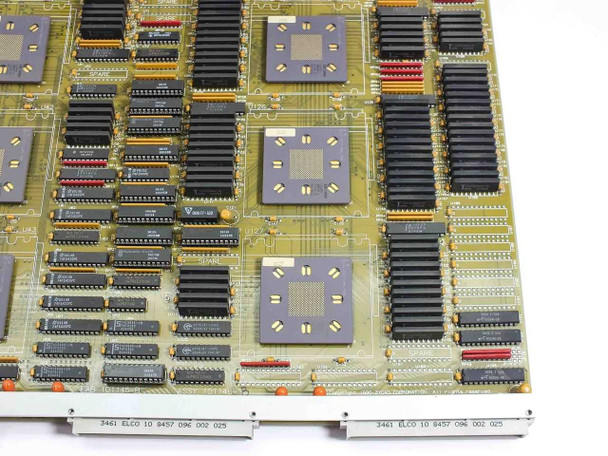

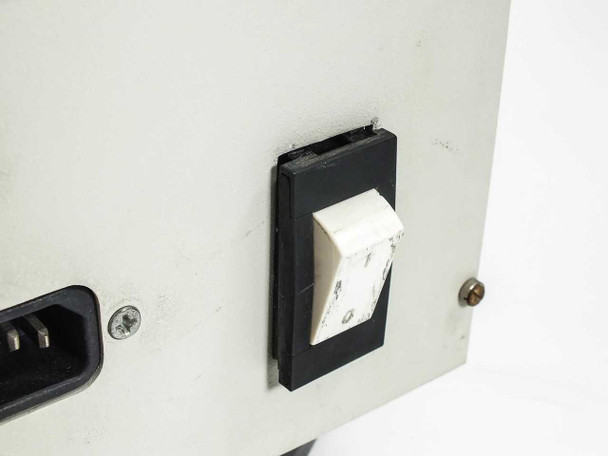

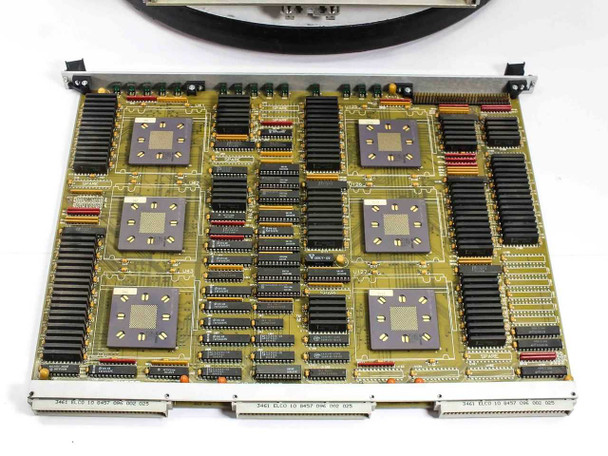

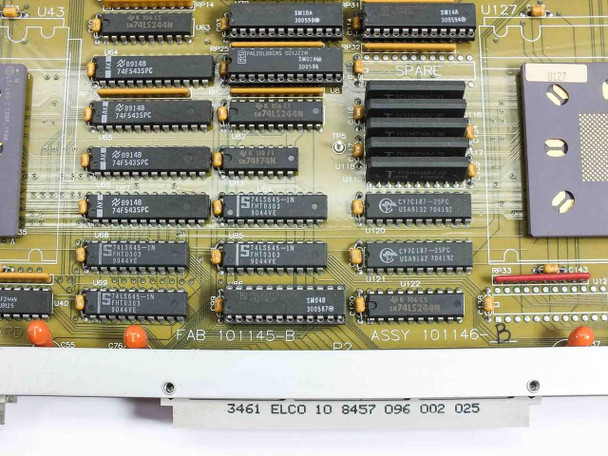

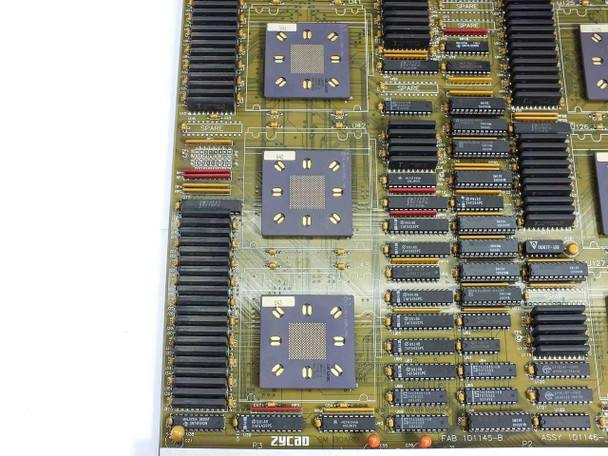

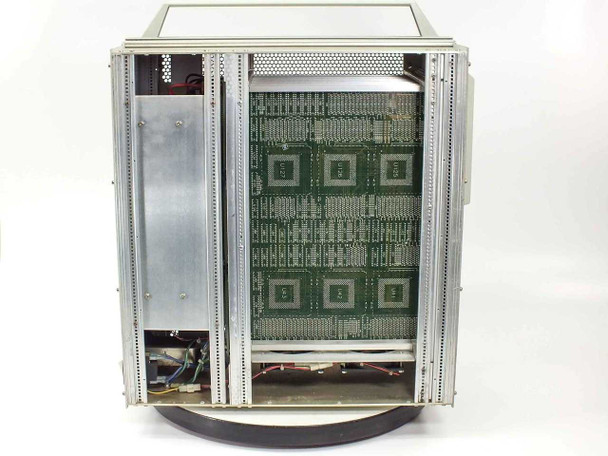

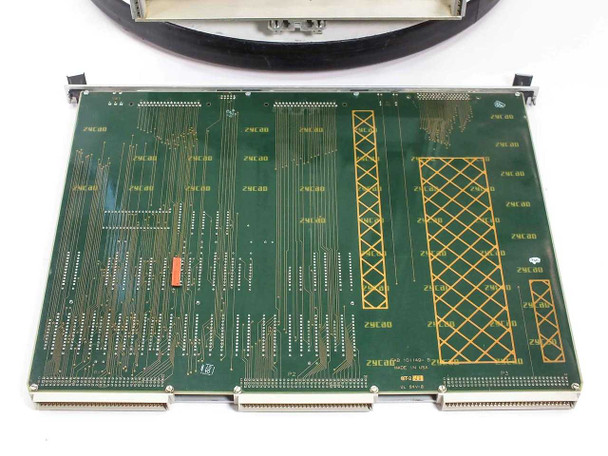

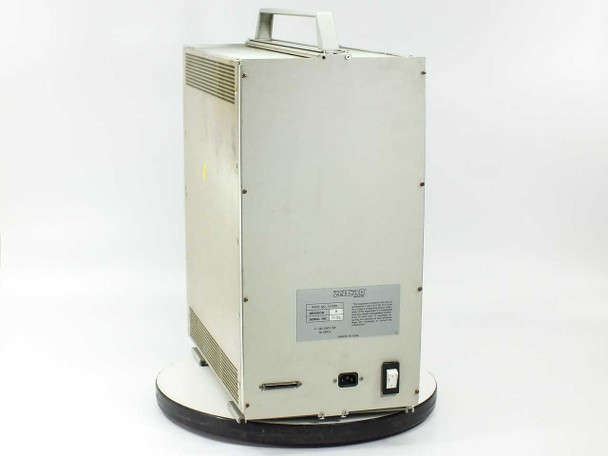

This Zycad XP-140 Hardware Simulation Accelerator (P/N 101291, Rev A) has been inspected and is in good used condition. The chassis exterior shows typical surface wear consistent with age — light scuffs and minor oxidation on the aluminum panels — but is structurally sound with the carry handle intact. All three boards are present and installed: one CBUSIB Board (FAB 101149-B, ASSY 101150-A) and two SM Boards (FAB 101145-B, ASSY 101146-B). The boards appear clean with no visible damage, burnt components, or missing ICs. The front panel status indicator module and card cage LED indicators are intact. The rear IEC power inlet and power switch are present. This unit has not been powered or bench-tested at our facility. Please view our photo set carefully and contact us with any questions before purchasing.
This Zycad XP-140 Hardware Simulation Accelerator (P/N 101291, Rev A) has been inspected and is in good used condition. The chassis exterior shows typical surface wear consistent with age — light scuffs and minor oxidation on the aluminum panels — but is structurally sound with the carry handle intact. All three boards are present and installed: one CBUSIB Board (FAB 101149-B, ASSY 101150-A) and two SM Boards (FAB 101145-B, ASSY 101146-B). The boards appear clean with no visible damage, burnt components, or missing ICs. The front panel status indicator module and card cage LED indicators are intact. The rear IEC power inlet and power switch are present. This unit has not been powered or bench-tested at our facility. Please view our photo set carefully and contact us with any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Zycad |
Model: |
XP-140 |
MPN: |
101291 |
SKU: |
48541 |
Revision: |
Rev A |
Condition: |
Used – Inspected |
Seller Notes: |
Includes 3 boards: CBUSIB (FAB 101149-B, ASSY 101150-A) and 2x SM (FAB 101145-B, ASSY 101146-B) |
Form Factor: |
Tower / Portable Chassis with Carry Handle |
Power Requirements: |
100-240V AC, 6A, 50-60Hz |
Country of Manufacture: |
USA |
Board 1: |

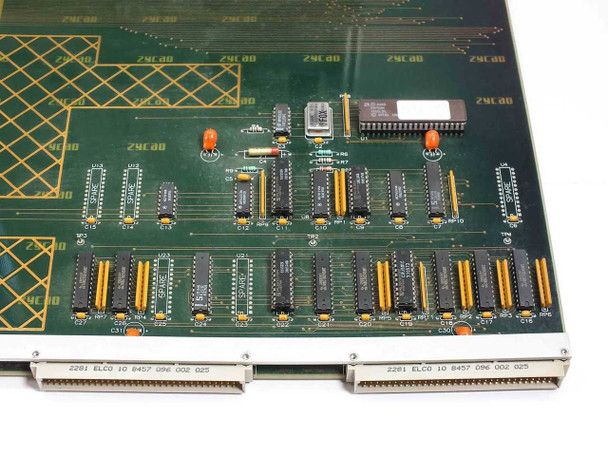

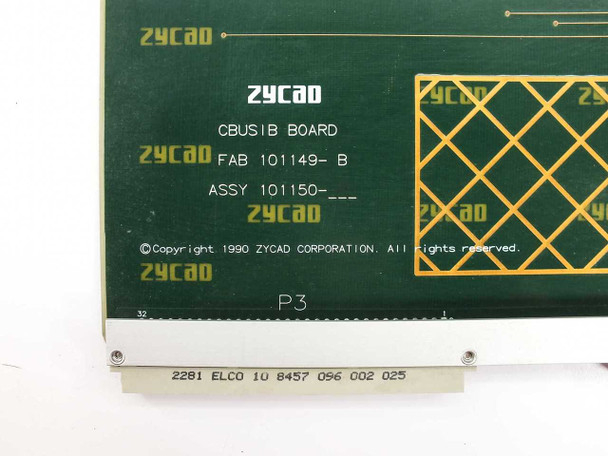

Zycad CBUSIB Board – FAB 101149-B, ASSY 101150-A |
Board 2: |

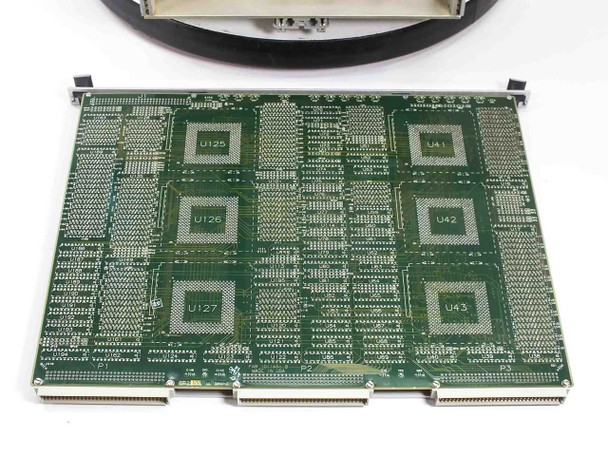

Zycad SM Board – FAB 101145-B, ASSY 101146-B |
Board 3: |
Zycad SM Board – FAB 101145-B, ASSY 101146-B |
Number of Boards: |
3 |
Application: |
Hardware Logic Simulation / EDA Acceleration |
Original List Price (1990): |
$47,500 |
FCC Class: |
Class A Computing Device |
Status Indicators: |

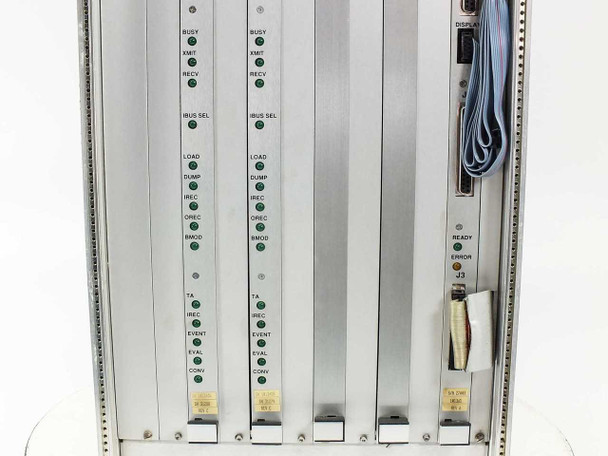

POWER, RUN, SIMULATE, BEHAVIOR, SPEED, BUSY, XMIT, RECV, IBUS SEL, LOAD, DUMP, IREC, DMCD, TA, EVAL, CONV |
Host Interface: |

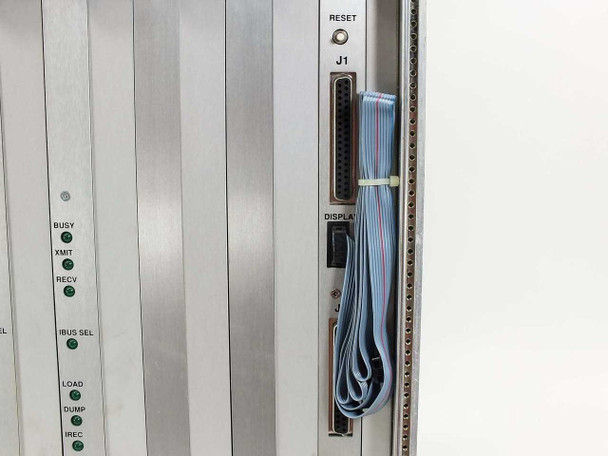

Ribbon cable / display header (J1 RESET, J3 READY/ERROR) |
Type: |
Hardware Simulation Accelerator |
Condition Notes: |
Zycad XP-140 Simulation Accelerator P/N 101291 Rev A inspected, in good used condition. All 3 boards present (CBUSIB + 2x SM). Chassis shows light age wear. Not bench-tested. Please contact us with questions. |
