Description
Ziehl-Abegg PDE10E-M Air Velocity Controller 230V 10A IP20 Fan Speed Control
Single-phase fan speed controller for HVAC and industrial ventilation systems. Accepts 0-10V control signal input and outputs variable AC power to modulate motor speed based on air velocity feedback.
Specifications & What's Included
- Model: PDE10E-M (MPN: 303511)
- Voltage: 230V AC, single phase, 50/60Hz
- Current rating: 10A
- Enclosure: IP20, DIN-rail / panel-mount
- Input: 0-10V signal; +24V reference output
- Setpoint adjustment: 20-100% dial
- Compatible sensors: DSG pressure sensor, MAL1/10 air speed meter
- Unit only; no accessories included
Applications
The PDE10E-M is used in ventilation systems requiring proportional fan motor control based on measured air velocity or pressure. Commonly installed in commercial HVAC, cleanroom systems, and industrial exhaust applications where maintaining target air speeds is necessary. Pairs with Ziehl-Abegg pressure and velocity sensors for closed-loop feedback control.
Condition: Used

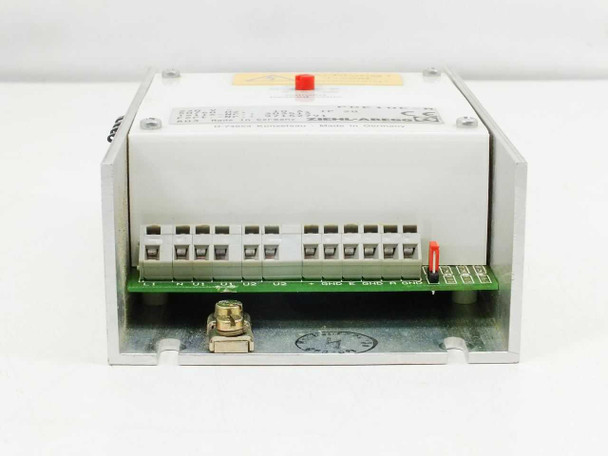

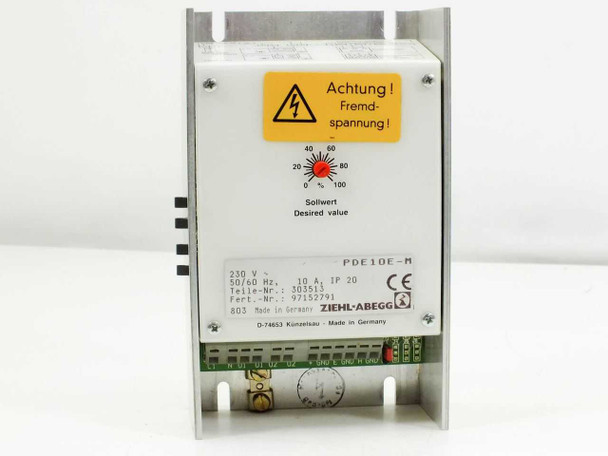

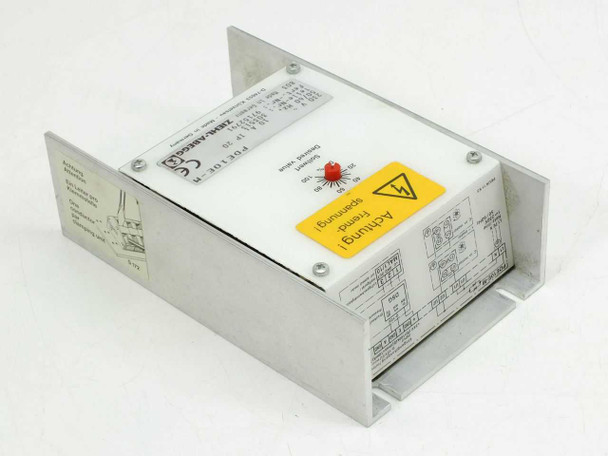

This Ziehl-Abegg PDE10E-M Air Velocity Controller has been inspected and appears to be in good condition. It was pulled from a working environment where it was in use. The aluminum enclosure is clean with minor surface marks consistent with normal use; the terminal block contacts, setpoint dial, and indicator light all appear intact. The rating label and wiring diagram decal are fully legible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Ziehl-Abegg PDE10E-M Air Velocity Controller has been inspected and appears to be in good condition. It was pulled from a working environment where it was in use. The aluminum enclosure is clean with minor surface marks consistent with normal use; the terminal block contacts, setpoint dial, and indicator light all appear intact. The rating label and wiring diagram decal are fully legible. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Ziehl-Abegg |
Model: |
PDE10E-M |
MPN: |
303511 |
Secondary Model: |
97152791 |
Type: |
Air Velocity / Fan Speed Controller |
SKU: |
46159 |
Voltage Rating: |
230V |
Current Rating (Amps): |
10A |
Phase: |
Single Phase |
Frequency: |
50/60Hz |
Enclosure Rating: |
IP20 |
Input/Output: |
0-10V signal input; +24V reference output |
Compatible Sensor: |
Pressure sensor (DSG); Air speed meter MAL1/10 |
Wiring Diagram: |
L1, N, PE input; U1, U1, U2, U2 motor output terminals |
Setpoint Adjustment: |
20-100% dial (Sollwert / Desired Value) |
Country/Region of Manufacture: |
Germany |
Form Factor: |
DIN-rail / panel-mount enclosure |
Power Requirements: |
230V AC, Single Phase, 50/60Hz |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; no accessories included. Pulled from working environment. |
Application: |
Fan motor speed / air velocity control in HVAC and industrial ventilation |
Condition Notes: |
Ziehl-Abegg PDE10E-M Air Velocity Controller in good used condition. Pulled from a working environment. Enclosure is clean with minor surface marks. Terminal blocks, dial, and indicator appear intact. |
