Description
Zenith ZDS 234-890 234-859 EIA-343 Power Supply Vintage 286 PC 115/230V
This is a Zenith Data Systems (ZDS) EIA-343 proprietary power supply used in Zenith 286-class desktop computers. It features a distinctive 15-pin rectangular motherboard connector (part number DE-00082-01A) not found on standard AT power supplies, making it a rare and sought-after replacement part for Zenith 286 system restoration. The unit accepts both 115V and 230V AC input, making it compatible with US and international systems.
Specifications & What's Included
- Brand: Zenith Data Systems (ZDS)
- Model: 234-890 (also listed as 234-859 — contact us to confirm variant availability)
- Connector Part Number: DE-00082-01A

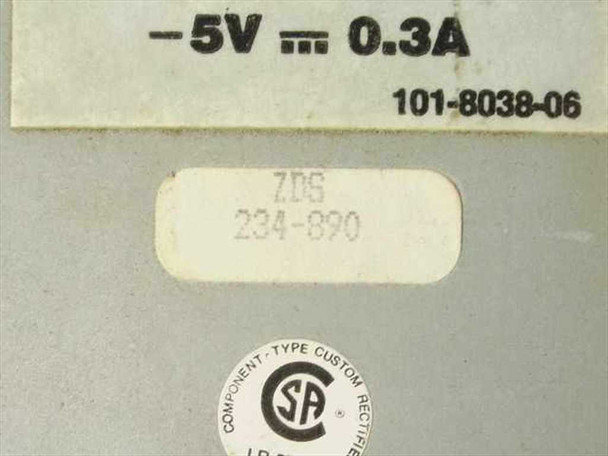

- Label Part Number: 101-8038-06
- Input: 115/230V AC, 4.0/2.0A, 60/50Hz
- Output: -5V DC, 0.3A (partial; see label)
- Connector: Proprietary 15-pin rectangular motherboard plug
- Standard: EIA-343
- Certifications: CSA Component-Type Custom Rectifier
- Includes: Power supply unit with full output harness (Molex drive connectors and 15-pin motherboard connector)
Applications
The Zenith ZDS 234-890 and 234-859 are proprietary power supplies designed for Zenith Data Systems 286-class desktop computers from the mid-to-late 1980s. Zenith used a non-standard EIA-343 form factor and connector arrangement, meaning standard AT power supplies are not compatible. These units are primarily sought for vintage computer restoration, repair of legacy Zenith 286 desktops, and parts sourcing by collectors and IT technicians maintaining older Zenith ZDS equipment.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

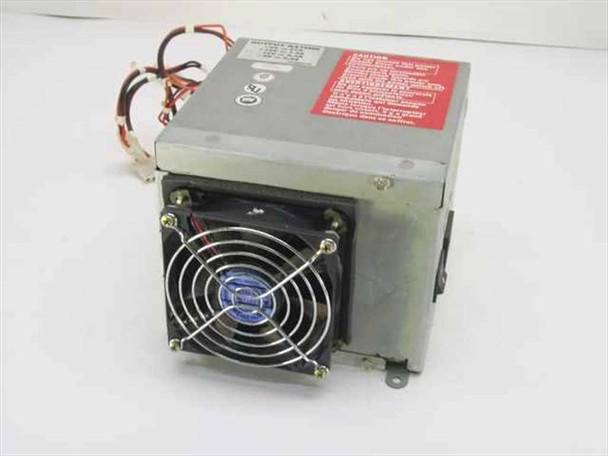

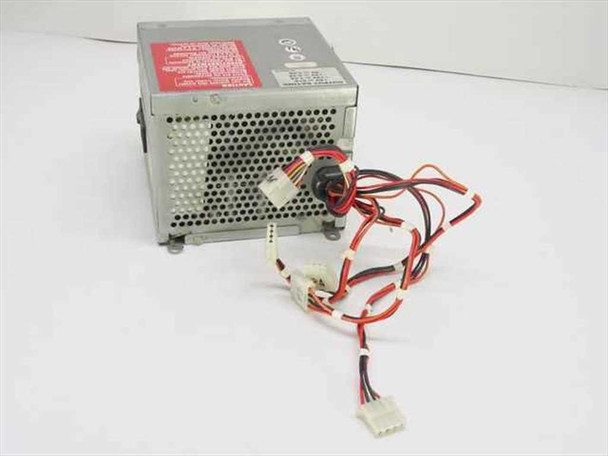

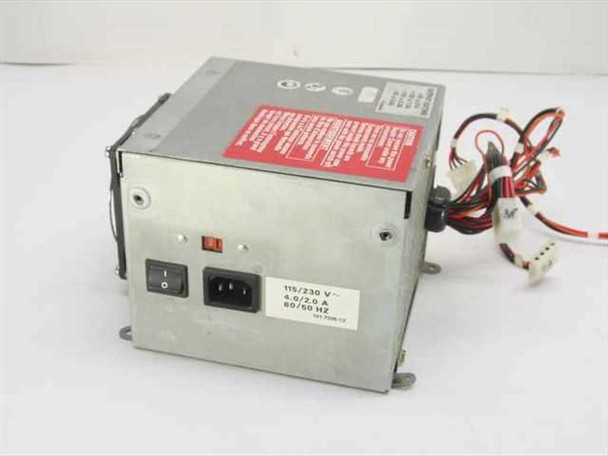

This Zenith ZDS 234-890 EIA-343 Desktop Power Supply has been powered and tested at our facility and is confirmed to be in good working order. The unit shows typical cosmetic wear consistent with its age — the gray metal housing has light scuffs and surface marks, and the red warning label on the top shows some fading. The output wiring harness, including the proprietary 15-pin rectangular motherboard connector and Molex drive connectors, appears intact and undamaged. The cooling fan and rear IEC inlet and rocker switch are present and in normal condition. Please note we may have both the 234-890 and 234-859 variants in stock — contact us if you have a preference and we will check availability. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Zenith Data Systems (ZDS) |
Model: |
234-890 |
Secondary Model: |
234-859 |
MPN: |
234-890 |
SKU: |
17183 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Includes power supply unit with harness; 15-pin rectangular motherboard connector DE-00082-01A |
Form Factor: |
Desktop / Proprietary AT-style |
Power Requirements: |
115/230V AC, 4.0/2.0A, 60/50Hz |
Voltage Rating: |
115/230V AC |
Current Rating: |
4.0A @ 115V / 2.0A @ 230V |
Frequency: |
60/50 Hz |
Connector Type: |
15-Pin Rectangular Motherboard Connector |
Part Number: |
DE-00082-01A |
Output Voltage: |
-5V DC, 0.3A (partial label visible) |
Compatible With: |
Zenith 286 Desktop PC (ZDS EIA-343 systems) |
Standards: |
EIA-343 |
Certifications: |
CSA Component-Type Custom Rectifier |
Country of Manufacture: |
USA |
Condition Notes: |
This Zenith ZDS 234-890 EIA-343 Power Supply has been powered and tested at our facility and is in good working order. Shows typical cosmetic wear for its age. Contact us for 234-890 vs 234-859 availability. |
