Zenith

Zenith Z-415-B Memory Expansion Board 181-7726-10 FSCM 6X803 30-Pin SIMM ISA

(No reviews yet) Write a Review
SKU:
45806
MPN:
Z-415B
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • Zenith Z-415-B memory expansion board shown in original open cardboard box — top view of full board
  • Zenith Z-415-B 181-7726-10 memory expansion board — top side showing 30-pin SIMM slots and ICs, angled left view
  • Zenith Z-415-B memory expansion board — top side showing logic ICs and 30-pin SIMM slots, angled right view
  • Zenith Z-415-B memory expansion board — bottom (solder) side showing unpopulated SIMM socket holes and edge connector
  • Zenith Z-415-B box label showing FSCM 6X803, MFR/PN Z-415-B, Memory Board, C/C 10/89
$55.00
Was: $100.00
Current Stock: 8

Sold Out

Description

Zenith Z-415-B Memory Expansion Board 181-7726-10 FSCM 6X803 30-Pin SIMM ISA

Proprietary memory expansion board designed for Zenith 286/386 desktop computers. Adds RAM capacity via four 30-pin SIMM slots on a full-length ISA card with non-standard 16-bit bus interface.

Specifications & What's Included

  • Model: Z-415-B | MPN: 181-7726-10 | FSCM: 6X803
  • Memory Slots: 4 x 30-Pin SIMM
  • Bus Interface: Proprietary 16-Bit ISA (non-standard connector)
  • Compatibility: Zenith 286/386 with proprietary backplane
  • Includes original instruction booklet
  • Manufactured October 1989

Applications

This board was used to upgrade memory in Zenith 286 and 386 desktop systems with proprietary expansion slots. It does not fit standard ISA backplanes due to its non-standard connector design. Compatible only with Zenith systems equipped with the matching proprietary slot configuration.

Condition: New
This Zenith Z-415-B Memory Expansion Board is new open-box stock, new from the manufacturer and never installed. The instruction booklet is included. The box label confirms a manufacture date of 10/89. The board itself shows no signs of use or installation — the edge connector contacts are clean and the SIMM slots are unoccupied. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Zenith
Model:
Z-415-B
MPN:
181-7726-10
Secondary Model:
FSCM 6X803
SKU:
45806
Type:
Proprietary ISA Memory Expansion Board
Form Factor:
Full-Length ISA Card
Bus Interface:
Proprietary 16-Bit ISA (non-standard — does not fit standard ISA slots)
Memory Slots:
4 x 30-Pin SIMM
Compatible With:
Zenith 286/386 Desktop with proprietary backplane
Compatible CPU Generation:
286, 386
Condition:
New – Open Box
Seller Notes:
New open-box; includes original instruction booklet. Manufactured 10/89.
Country/Region of Manufacture:
United States
Condition Notes:
Zenith Z-415-B Memory Expansion Board is new open-box, never installed, new from the manufacturer. Includes original instruction booklet. Manufacture date 10/89. Edge connector and SIMM slots are clean.
View AllClose

Related Products

Related Products

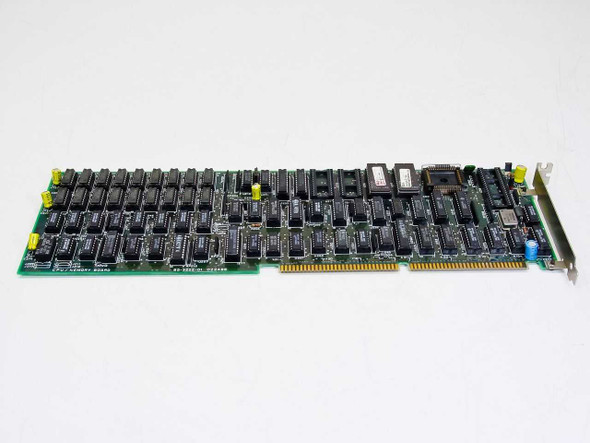

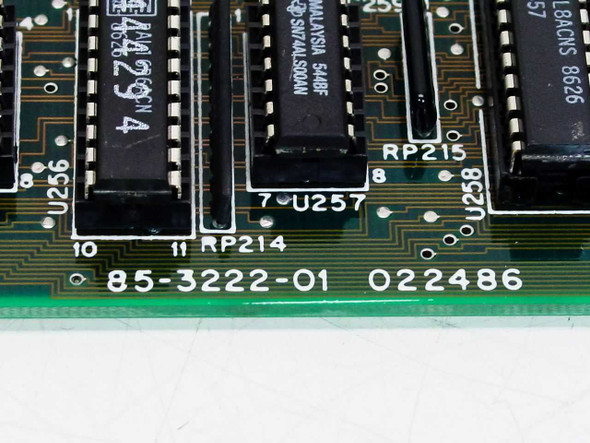

Zenith 85-3222-01 CPU memory expansion board – full top view showing populated DIP memory chips and proprietary ISA-style edge connector Zenith 85-3222-01 board – close-up of PCB silkscreen showing part number 85-3222-01, date code 022486, and IC markings including AMA4293NA and SN74ALS00AN Malaysia
Add to Cart
Quick view

Zenith 85-3222-01 CPU Memory Board Proprietary ISA Style Expansion Card

Zenith

$45.00
Was: $90.00
Zenith 85-3222-01 CPU Memory Board Proprietary ISA Style Expansion CardA CPU and memory expansion board designed for Zenith computer systems. This proprietary ISA-style card adds memory capacity to...
38853
SKU:
38853
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Zenith
Model:
85-3222-01
MPN:
85-3222-01
Type:
CPU / Memory Expansion Board
SKU:
38853
Form Factor:
Proprietary ISA-Style Full-Length Card
Bus Interface:
Proprietary ISA Style (non-standard — does not fit standard 16-bit ISA slots)
Compatible With:
Zenith systems requiring 85-3222-01 and special daughter board
Requires:
Special Zenith daughter board (not included)
Date Code:
022486
Condition:
Used – Pulled from Working Environment
Seller Notes:
Card only. Special daughter board required but not included.
Country/Region of Manufacture:
Malaysia (per chip markings: SN74ALS00AN Malaysia)
Condition Notes:
Zenith 85-3222-01 CPU/Memory Board inspected and in good used condition. Pulled from a working environment. Requires special Zenith daughter board (not included). Does not fit standard 16-bit ISA slots. Photos available.

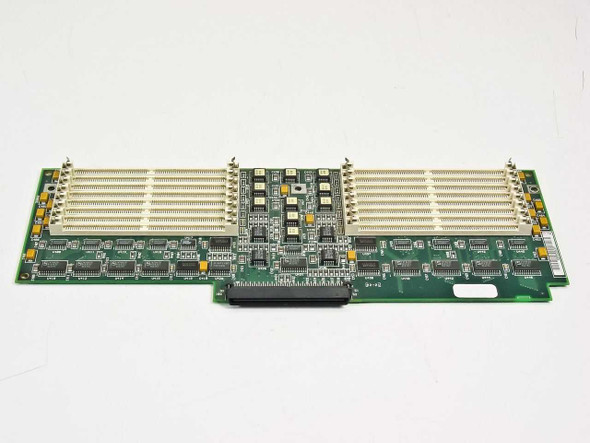

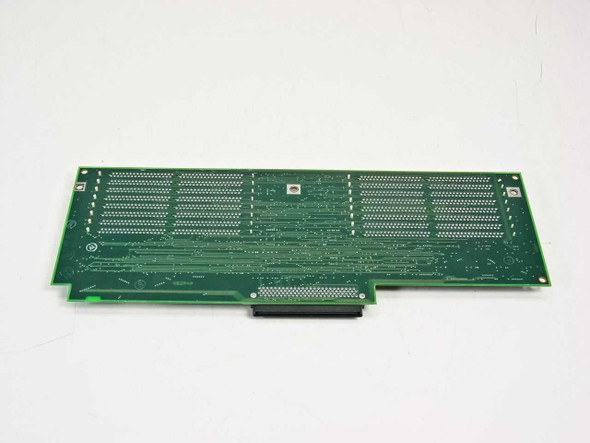

Zenith 85-3680-01 Memory Board 240-8076-1/B – top-side view showing full board with SIMM slot arrays and edge connector Zenith 85-3680-01 Memory Board – bottom (solder-side) view showing PCB traces and proprietary edge connector
