Description
Zenith Data Systems 85-3053-02 Parallel Serial Board 8-Bit ISA Card 112785

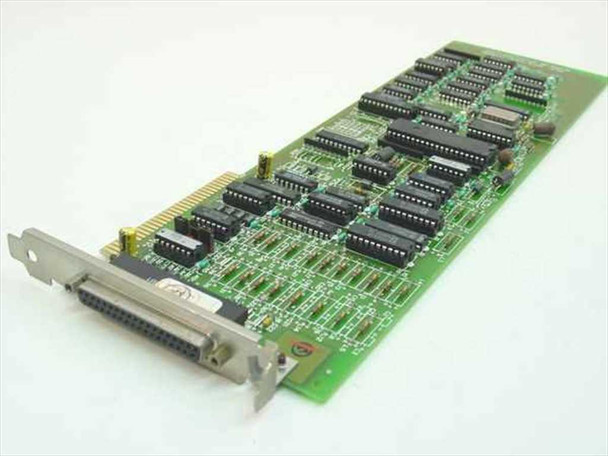

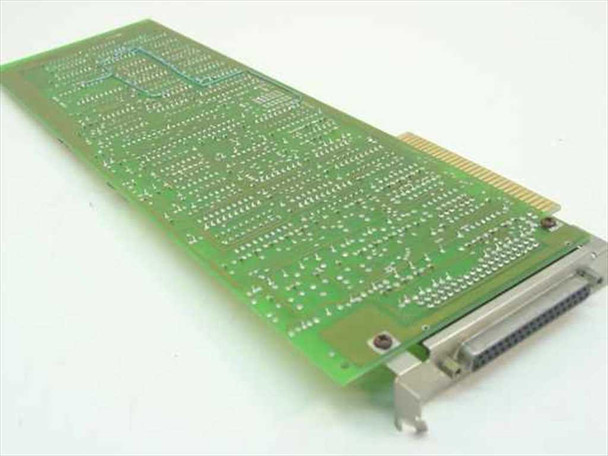

The Zenith Data Systems 85-3053-02 is an 8-bit ISA parallel/serial I/O expansion card designed for Zenith Data Systems ISA-bus personal computers. It adds parallel and serial port connectivity to compatible ZDS desktop systems via a DB-25 bracket connector, and is populated with standard 74-series TTL logic ICs typical of mid-1980s ISA I/O card design.
Specifications & What's Included
- Manufacturer: Zenith Data Systems
- Part Number: 85-3053-02
- Board Stamp: 112785 (November 1985)
- Bus Interface: 8-bit ISA
- Function: Parallel and Serial I/O expansion
- Bracket Connector: DB-25 female (parallel port)
- Form Factor: Half-length ISA expansion card

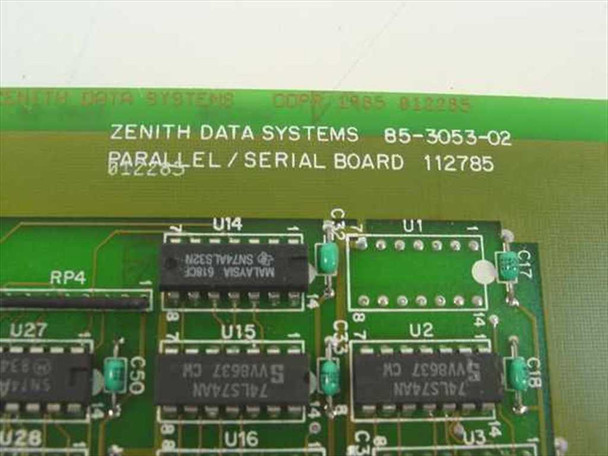

- Main Logic ICs: SN74ALS32N, 74LS74AN (TTL series)
- Country of Manufacture: Malaysia (per board label)
- Included: Card only — no cables or accessories
Applications
8-bit ISA parallel/serial I/O cards like the 85-3053-02 were standard expansion hardware in IBM PC/XT-compatible and proprietary ISA-bus desktop computers of the mid-1980s. Zenith Data Systems was a major supplier of IBM-compatible PCs to the U.S. government and commercial markets during this era, and produced a range of proprietary peripheral cards for their ZDS desktop lines. This card would have provided parallel printer port connectivity and serial communications capability — functions that in later designs were integrated onto the motherboard. Today these cards are sought by collectors and technicians maintaining vintage ZDS systems, or by hobbyists restoring period-correct ISA-bus machines. The 8-bit ISA bus standard dates this card firmly to the pre-AT/286 era of the mid-1980s.
This Zenith Data Systems 85-3053-02 Parallel/Serial ISA Board has been inspected and appears to be in good used condition. It was pulled from a working environment. The board shows normal age-related wear consistent with a vintage ISA card — the PCB and components look intact with no obvious physical damage visible. The DB-25 bracket and connector appear straight and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Zenith Data Systems |
Model: |
85-3053-02 |
MPN: |
85-3053-02 |
Secondary Model: |
112785 |
SKU: |
13012 |
Type: |
Parallel/Serial I/O Expansion Card |
Bus Type: |
ISA (8-bit) |
Interface: |
Parallel and Serial |
Form Factor: |
Half-Length ISA Card |
Connector Type: |
DB-25 (female, parallel port) |
Compatible With: |
Zenith Data Systems ISA-bus PCs |
Chipset: |
SN74ALS32N, 74LS74AN (TTL logic ICs) |
Condition: |
Used – Pulled from Working Environment |
Country/Region of Manufacture: |
Malaysia (per board label) |
Seller Notes: |
Card only. No cables or accessories included. |
Condition Notes: |
Zenith Data Systems 85-3053-02 8-bit ISA Parallel/Serial Board inspected and in good used condition. Pulled from a working environment. Normal age-related wear. No visible damage. Please contact us with any questions. |
