Zeiss Stemi SV8 Stereo Microscope Head with Focus Block 0.8x-6.4x Zoom

Zeiss Stemi SV8 Stereo Microscope Head with Focus Block 0.8x-6.4x Zoom

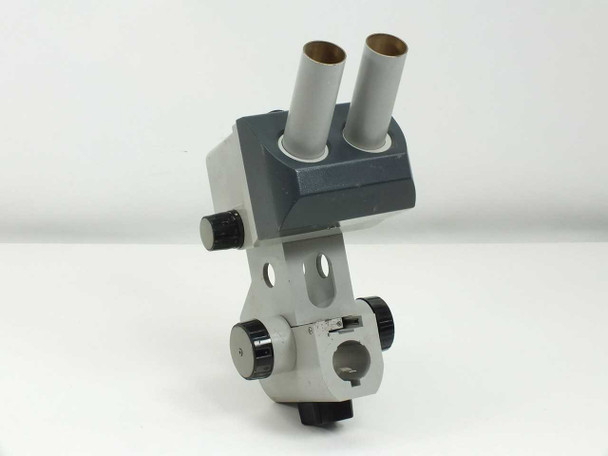

The Zeiss Stemi SV8 is a high-quality binocular zoom stereo microscope head from Carl Zeiss West Germany. This listing includes the zoom optical head and integrated focus block assembly — the core components of the Stemi SV8 system. The zoom body provides a continuous 0.8x to 6.4x magnification range, and the focus block provides 53mm of smooth vertical travel for precise specimen focusing.

Specifications & What's Included

• Manufacturer: Carl Zeiss, West Germany
• Model: Stemi SV8
• Zoom magnification range: 0.8x – 6.4x (8:1 zoom ratio)
• Eyepiece tube diameter: 30mm
• Eyepiece tube depth: 80mm
• Focus block vertical travel: 53mm
• Vertical mounting shaft port diameter: 1.25 in
• Optical configuration: Binocular

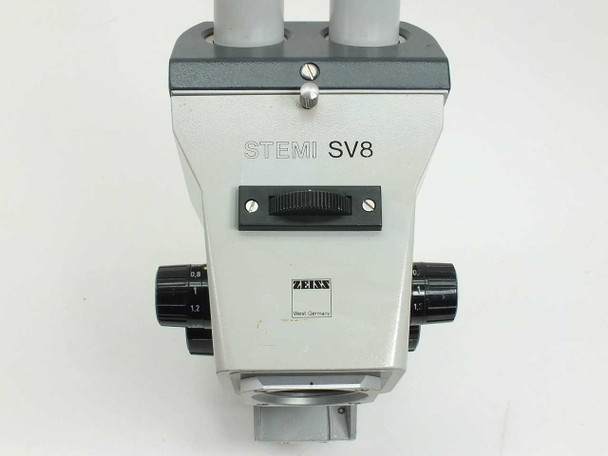

• Zoom control: front-panel thumbwheel with magnification scale
• Objective lens port visible on front face of zoom body
• Focus block rack-and-pinion with dual side knobs
• Included: zoom head and focus block assembly only
• Not included: stand, lamp, eyepieces, and objectives (required for full operation)

Applications

The Zeiss Stemi SV8 is a well-regarded stereo zoom microscope from the 1970s–1980s era of precision West German optical manufacturing. It was designed for demanding laboratory, industrial, and research applications where high-quality stereoscopic imaging is needed — including electronics assembly inspection, biological dissection, gemology, watchmaking, printed circuit board analysis, and quality control. The 8:1 zoom ratio (0.8x–6.4x) gives users a broad working range without changing objectives, making it versatile for both low-power survey work and higher-magnification detail inspection. The Stemi SV8 system is modular: the zoom head and focus block mount to a separate stand (post or boom arm) and accept interchangeable eyepieces and auxiliary objectives, allowing configuration for a wide range of working distances and total magnifications. These instruments remain in active use in research labs, repair shops, and educational settings, and are valued on the used market for their optical quality and robust construction.
