Zeiss Stemi SV 11 Binocular Stereo Microscope Head 0.6x-6.6x Achromat S 1.0x
The Zeiss Stemi SV 11 is the zoom head assembly from Zeiss's well-regarded Stemi SV series of stereo microscopes. This unit provides continuously variable zoom magnification from 0.6x to 6.6x via a smooth-turning knob and accepts standard 30mm eyepieces. It is offered here complete with the Zeiss Achromat S 1.0x objective, which provides a 90mm working distance — well suited to manipulation-heavy applications.
Specifications & What's Included
- Make: Zeiss
- Series: Stemi SV
- Model: Stemi SV 11
- Head type: Binocular zoom
- Head part number: 45 50 56
- Zoom magnification range: 0.6x – 6.6x (continuously variable)
- Eyepiece tube diameter: 30mm
- Eyepiece tube depth: 90mm
- Included objective: Zeiss Achromat S 1.0x (PN: 45 50 60)
- Objective focal length: f = 100mm
- Objective working distance: WD = 90mm
- Objective resolution: R = 3.9 µm
- Objective mount: Threaded bayonet-style, visible on front of head

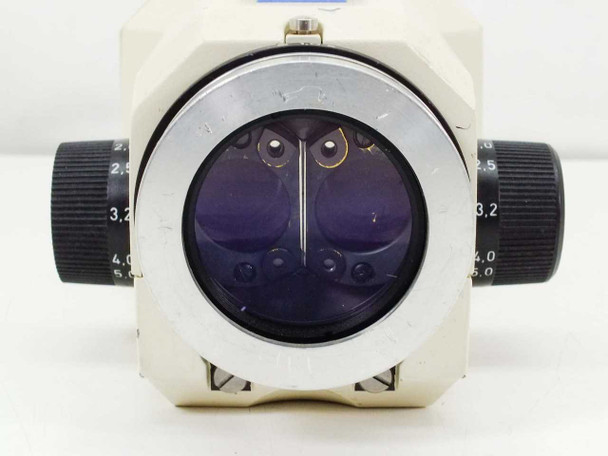

- Internal optics: Anti-reflection coated dual optical paths visible through objective port
- Country of manufacture: Germany
- Includes: Zeiss Stemi SV 11 zoom head + Achromat S 1.0x objective
- Not included: Stand, base, eyepieces, illuminator
Applications
The Zeiss Stemi SV series is a line of high-quality zoom stereo microscopes widely used in research laboratories, semiconductor and electronics inspection, microbiology, entomology, geology, and precision assembly work. The SV 11 head's 11:1 zoom ratio (0.6x–6.6x) combined with the 1.0x Achromat objective gives a generous working distance of 90mm, making it well suited for dissection, PCB inspection, microelectronics assembly, and fine manipulation tasks where hands or instruments must fit under the optical path. Zeiss Stemi SV-series microscopes were produced from the 1980s through the 1990s and remain in active use in labs today due to the quality of their Zeiss optics. This head is compatible with Zeiss Stemi SV 11 stands and focusing mounts, allowing integration into an existing Stemi SV setup.
This Zeiss Stemi SV 11 binocular stereo microscope head has been inspected and shows normal cosmetic wear consistent with lab use — light scuffing and minor marks on the housing are visible. The optics appear clean and clear with no visible haze or damage to the objective or internal lenses. The zoom knob turns smoothly through the full 0.6x–6.6x range. The unit includes the Zeiss Achromat S 1.0x objective (PN 45 50 60). The head was pulled from a working lab environment. Please review our photos and reach out with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Zeiss |
Model: |
Stemi SV 11 |
MPN: |
45 50 56 |
Type: |
Binocular Stereo Microscope Zoom Head |
SKU: |
46503 |
Zoom Magnification Range: |
0.6x to 6.6x |
Eyepiece Tube Diameter: |
30mm |
Eyepiece Tube Depth: |
90mm |
Included Objective: |
Achromat S 1.0x (PN: 45 50 60) |
Objective Focal Length: |
f = 100mm |
Objective Working Distance: |
WD = 90mm |
Objective Resolution: |
R = 3.9 µm |
Head Part Number: |
45 50 56 |
Objective Part Number: |
45 50 60 |
Microscope Series: |
Stemi SV |
Head Type: |
Binocular |
Compatible With: |
Zeiss Stemi SV 11 stereo microscope stands |
Country/Region of Manufacture: |
Germany |
Seller Notes: |
Includes Zeiss Achromat S 1.0x objective (PN 45 50 60). Head only — no stand, base, or eyepieces. |
Condition Notes: |
This Zeiss Stemi SV 11 binocular stereo microscope head shows light cosmetic wear on the housing. Optics appear clean with no visible haze. Zoom knob operates smoothly. Includes Achromat S 1.0x objective (PN 45 50 60). |
