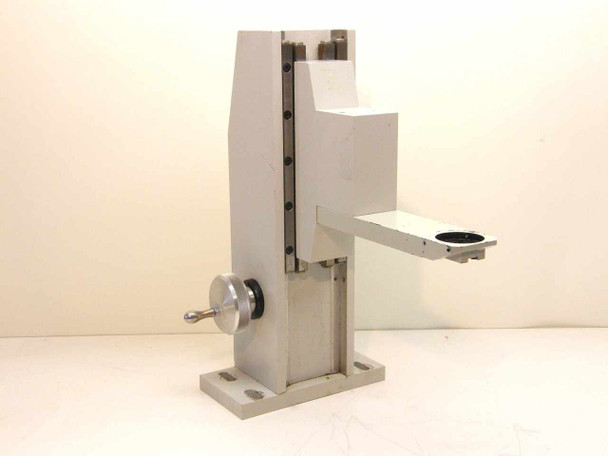

This is a heavy-duty vertical microscope positioning mount made by McBain Instruments, Inc., a California-based manufacturer of precision scientific and optical instruments. The unit provides motorized-ready or manual Z-axis (vertical) travel via a linear rail slide, allowing precise height adjustment of a mounted microscope or optical assembly. The large knurled manual focus knob on the left side of the column drives vertical movement, with a locking pin to secure position once set. A horizontal arm extends from the carriage and terminates in a circular objective/optics holder with a four-screw mounting ring.

Specifications & What's Included

• Manufacturer: McBain Instruments, Inc.
• Type: Vertical Z-axis microscope/optical positioning mount
• Linear rail: MIC brand, model RW 206.10, Made in U.S.A.
• Axis of travel: Z-axis (vertical)
• Adjustment: Manual — large knurled aluminum focus knob with locking pin

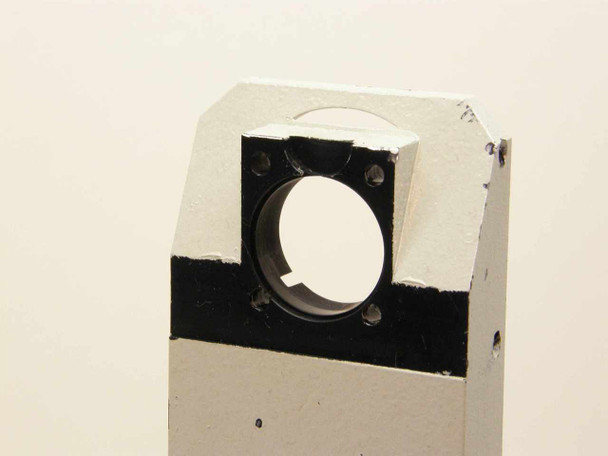

• Horizontal arm with circular objective/optics holder (black anodized ring, 4-screw pattern)

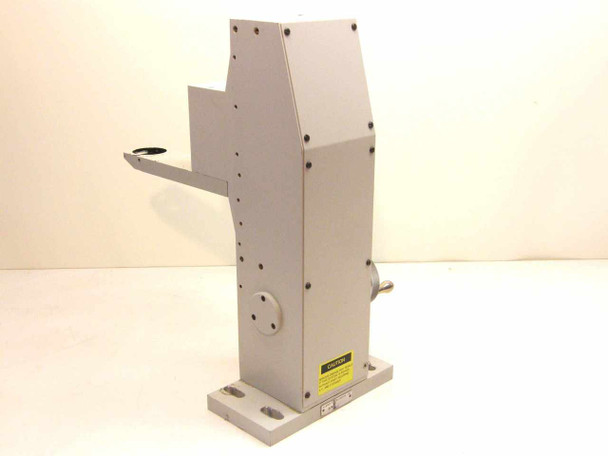

• Flat plate base with through-hole mounting points for table/optical breadboard attachment

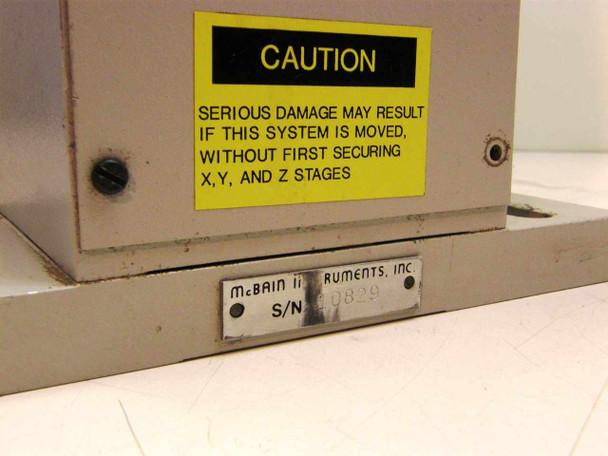

• Caution label references securing X, Y, and Z stages — designed as part of a multi-axis positioning system
• Construction: Painted aluminum/steel column and base
• Mount only — no microscope body, optics, or additional accessories included
