Description
Zebra Z90GM Thermal Transfer Barcode Label Printer 120VAC 4A Weber Legitronic

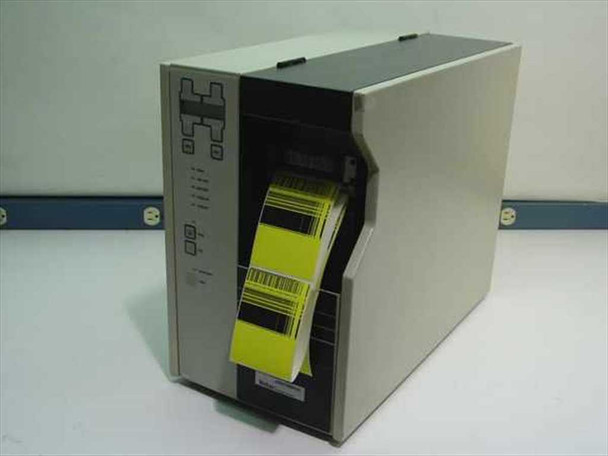

The Zebra Z90GM is a desktop thermal transfer barcode label printer built by Zebra Technologies Corporation and integrated into the Weber Marking Systems Legitronic print management platform. It supports both thermal transfer and direct thermal print modes, using a ribbon-driven mechanism to produce durable, high-contrast barcode and text labels up to 3.15 inches wide. The unit communicates via a serial RS-232 interface and is configured through an onboard printer parameter set visible on the configuration label.
Specifications & What's Included
- Brand: Zebra Technologies Corporation
- Model: Z90GM
- Print Method: Thermal Transfer (ribbon required); Direct Thermal also supported
- Print Width: 3.15 in (80.0 mm)
- Label Length: 5 in (127.0 mm)

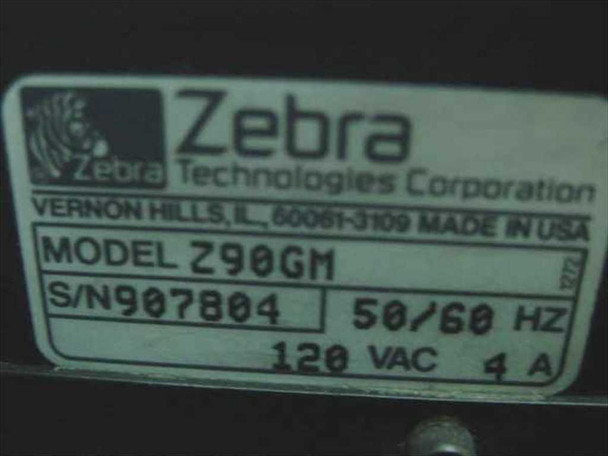

- Power: 120 VAC, 50/60 Hz, 4A

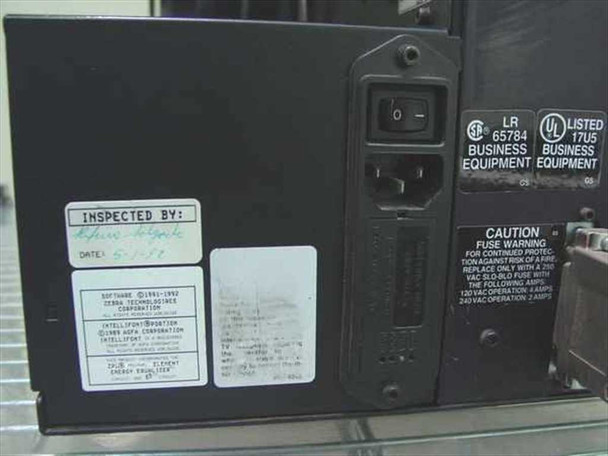

- IEC power inlet on rear panel with rocker on/off switch
- Interface: Serial RS-232
- Baud Rate: 9600
- Data Bits: 7
- Parity: Even
- Stop Bits: 1
- Handshake: XON/XOFF
- Head Resistance: 325
- Software Version: V7.00
- Software platform: Weber Legitronic (Legitronic branding label on front panel)

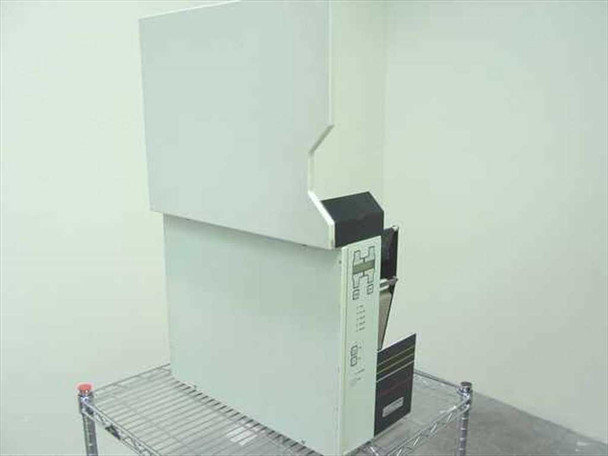

- Form Factor: Desktop / freestanding enclosure
- Country of Manufacture: USA
- Certifications: UL Listed (LR 65784), SLR Listed (17U5)
- Unit only — no ribbon or media stock included
Applications
The Zebra Z90GM is an industrial-grade thermal transfer label printer designed for high-volume barcode label production in manufacturing, warehousing, distribution, and logistics environments. It was widely deployed in the early-to-mid 1990s as part of the Weber Marking Systems Legitronic print-and-apply labeling platform, which combined Zebra print engines with Weber's label application hardware and Legitronic software for automated product identification lines. Thermal transfer printing — where a heated printhead melts ink from a ribbon onto label stock — produces labels that resist smearing, moisture, and abrasion, making it well suited for product labeling, shipping labels, inventory tags, and compliance labels that need to endure harsh conditions. The Z90GM's serial RS-232 interface connects directly to a host PC or programmable controller running Legitronic or compatible label design software. Units from this generation are still sought for replacement in legacy Legitronic print-and-apply installations where retaining the original software environment is preferred over a full system upgrade.
This Zebra Z90GM Thermal Transfer Barcode Label Printer has been inspected and appears to be in good used condition. It was pulled from a working environment where it was in active use. The exterior enclosure shows light scuffs and general handling wear typical of industrial use. The print mechanism, ribbon path, and media guides are intact and appear clean. An inspection sticker is visible on the rear panel. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Zebra Technologies |
Model: |
Z90GM |
MPN: |
Z90GM |
Type: |
Thermal Transfer Barcode Label Printer |
SKU: |
20709 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; no media or ribbon included |
Country/Region of Manufacture: |
United States |
Form Factor: |
Desktop |
Power Requirements: |
120 VAC, 50/60 Hz, 4A |
Print Method: |
Thermal Transfer |
Print Width: |
3.15 in (80.0 mm) |
Label Length: |
5 in (127.0 mm) |
Baud Rate: |
9600 |
Data Bits: |
7 Bits |
Parity: |
Even |
Stop Bits: |
1 |
Handshake: |
XON/XOFF |
Software Version: |
V7.00 |
Head Resistance: |
325 |
Compatible Software: |
Weber Legitronic |
Interface: |
Serial (RS-232) |
Certifications: |
UL Listed (LR 65784), SLR Listed 17U5 |
Condition Notes: |
Zebra Z90GM Thermal Transfer Label Printer. Inspected and in good used condition. Pulled from a working environment where it was in active use. Shows light cosmetic wear. Please view photos and contact us with questions. |
