Description
Zarak Abacus 82-00132 Portable Advanced Bulk Call Simulator Card Carrier 90-264V

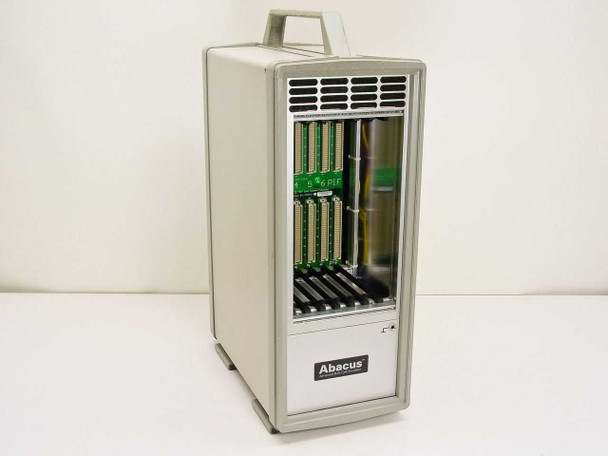

The Zarak Abacus 82-00132 is a portable chassis and card carrier for the Abacus Advanced Bulk Call Simulator system. It houses up to seven simulator cards in a self-contained carry case with an integrated backplane, providing all power distribution and interconnect for the Abacus call simulation platform. The unit connects to host systems via EIA-232 serial and LAN (Ethernet) interfaces for control and data collection.
Specifications & What's Included
- Part Number: 82-00132
- System: Zarak Abacus Advanced Bulk Call Simulator
- Card slots: 7 (numbered positions plus PIF slots on dual-sided backplane)
- Power input: AC 90–264 V, 50/60 Hz, 3 A (universal input)
- Power connector: IEC C14 inlet (rear)
- USER interface — EIA-232: DB9 serial port
- USER interface — LAN: RJ-45 Ethernet port
- Form factor: Portable handheld carry case with top-mounted carry handle
- Country of manufacture: United States
- Certifications: CE
- Included: Card carrier chassis only — Zarak Abacus simulator cards not included
Applications
The Zarak Abacus Advanced Bulk Call Simulator is a professional telecom test platform used in carrier labs, network equipment validation facilities, and telecommunications R&D environments. It generates high-volume call traffic to stress-test switching equipment, vocoders, media gateways, and other voice-network infrastructure. The portable card carrier chassis allows the system to be deployed at remote test sites or moved between lab benches — a practical advantage for field acceptance testing and on-site carrier validation work. The chassis houses the Abacus simulator cards that produce the actual call signaling and media streams, while the EIA-232 and LAN interfaces connect to a controlling host PC running the Abacus software suite. The Abacus platform was widely used from the late 1990s through the 2000s in PSTN, SS7, and VoIP testing environments as telecom networks transitioned from circuit-switched to packet-switched architectures.

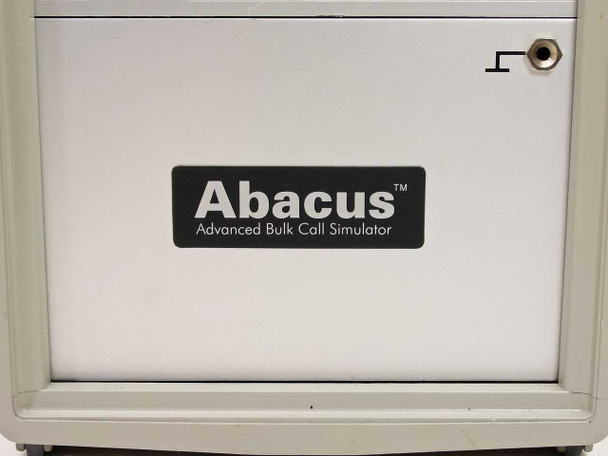

This Zarak Abacus 82-00132 Portable Advanced Bulk Call Simulator card carrier has been inspected and is in good used condition. The chassis is clean overall, with only light surface scuffing typical of portable test equipment that has seen regular use. The carry handle, card cage, backplane slots, and front Abacus badge are all intact. The rear USER interface panel — with its EIA-232 (DB9) and LAN (RJ-45) ports — shows no damage, and the IEC AC inlet and ventilation areas are clean. This listing is for the card carrier chassis only; Zarak Abacus simulator cards are not included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Zarak |
Model: |
82-00132 |
MPN: |
82-00132 |
Product Line: |
Abacus Advanced Bulk Call Simulator |
Type: |
Portable Bulk Call Simulator Card Carrier |
SKU: |
39682 |
Form Factor: |
Portable / Handheld Carry Case |
Number of Card Slots: |
7 |
Power Requirements: |
AC 90 to 264 V, 50/60 Hz, 3 A |
Interface Type: |
EIA-232, LAN |
Connector Types: |
DB9 (EIA-232), RJ-45 (LAN) |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Card carrier/chassis only — simulator cards not included. |
Condition Notes: |
Zarak Abacus 82-00132 Portable Bulk Call Simulator card carrier. Inspected, good condition. Light surface scuffing; chassis, handle, backplane, and rear I/O ports all intact and undamaged. Chassis only — no simulator cards included. |
Certifications: |
CE |
Compatible With: |
Zarak Abacus simulator cards |
