The Yokogawa SR1015B82 is a direct drive (DD) servo actuator controller from the Dynaserv product line, co-developed and marketed by Litton Precision Products. The Dynaserv series pairs this controller with a compatible direct drive rotary or linear motor to form a high-precision, gearless servo axis — eliminating backlash and compliance associated with traditional gear or belt drives. This unit accepts 200-230VAC input and is rated for 500VA at 50/60 Hz, with a maximum output torque of 15 N·m.

Specifications & What's Included

• Manufacturer: Yokogawa / Litton Precision Products
• Model: SR1015B82
• Suffix: -2MN*1C/L1D99092
• Unit No.: 200RD34321F0
• Type: DD (Direct Drive) Servo Actuator Controller
• Supply Voltage: 200-230VAC (+10% / -15%)
• Power Rating: 500VA
• Frequency: 50/60 Hz
• Max Torque: 15 N·m
• Country of Manufacture: Japan
• CN1: DB9 (9-pin D-sub) connector — command/control interface
• CN2: Large high-density SCSI-style connector — motor/encoder interface

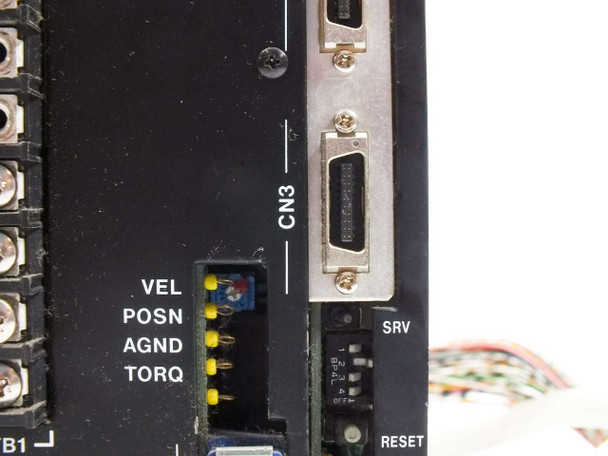

• CN3: High-density D-sub connector

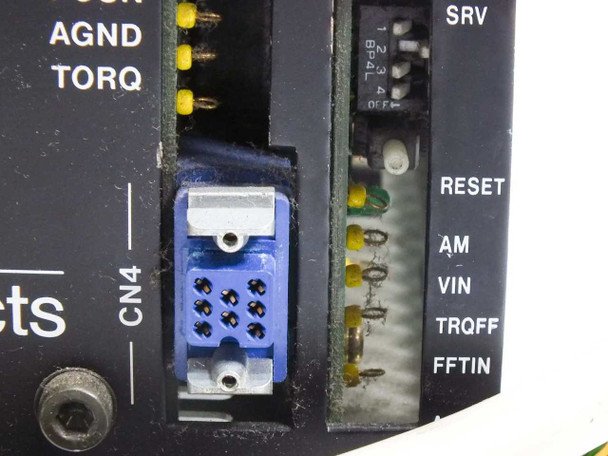

• CN4: 9-pin mini connector (blue housing)
• Analog monitor outputs: VEL (velocity), POSN (position), AGND, TORQ (torque)
• Control inputs: AM, VIN, TRQOFF, FFTIN
• Additional controls: SRV (servo on/off), RESET
• Status indicators: RDY, ERR, BUSY, PLC LEDs; 7-segment numeric display
• Cooling: passive aluminum fin heatsink (full rear panel)
• Includes: attached multi-conductor cable harness terminating in a large SCSI-style connector

Applications

The Dynaserv DD (direct drive) servo system was designed for high-precision motion control applications where zero backlash and exceptional positional accuracy are critical. Typical applications include semiconductor wafer handling and inspection equipment, precision optical positioning stages, robotics, coordinate measuring machines (CMMs), and high-speed pick-and-place systems. The Yokogawa Dynaserv line was widely adopted in the 1980s and 1990s across Japanese and international semiconductor fabrication and precision automation industries. Because the motor is directly coupled to the load — with no intervening gearbox, belt, or leadscrew — these systems achieve very high dynamic stiffness and smooth, repeatable motion. The SR1015B82 controller interfaces with a matched Dynaserv direct drive motor via the CN2 connector harness, and accepts velocity, position, and torque commands through its analog and serial interfaces. These systems remain in use today in legacy semiconductor, optics, and research automation equipment, and replacement controllers are actively sought for maintenance of installed systems.
