Xtreme Power Conversion V80-1500 1500VA 900W Pure Sine UPS AVR 120V 2U
The Xtreme Power Conversion V80-1500 is a 1500VA / 900W line interactive uninterruptible power supply with pure sine wave output and automatic voltage regulation (AVR). It mounts in a standard 2U rack space and is designed to protect connected equipment from power interruptions, sags, surges, and line noise. The V80 series uses a line interactive topology, meaning AVR actively corrects incoming voltage without switching to battery, extending battery life and providing cleaner power delivery.
Specifications & What's Included
- Model: V80-1500
- Capacity: 1500VA / 900W
- Output Waveform: Pure Sine Wave
- Voltage Regulation: Automatic Voltage Regulation (AVR)
- Input Voltage: 120V AC, 50/60Hz
- Input Current: 12A
- Input Connector: IEC C14 (rear)
- Output Voltage: 120V AC
- Voltage Range: 82–148 VAC (before switching to battery)
- Transfer Time: 2–6 ms (typical)

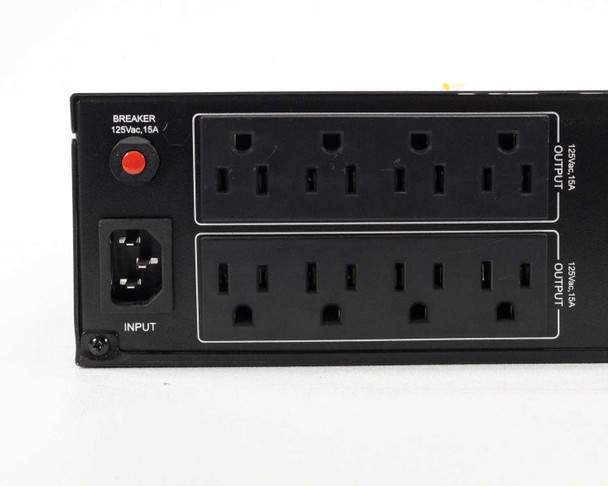

- Output Outlets: 8x NEMA 5-15R (two banks of 4), rated 125VAC 15A
- Rear Circuit Breaker: 125VAC, 15A
- Front Panel: LCD display (shows input/output voltage), Power button, Mute button
- Form Factor: 2U Rackmount

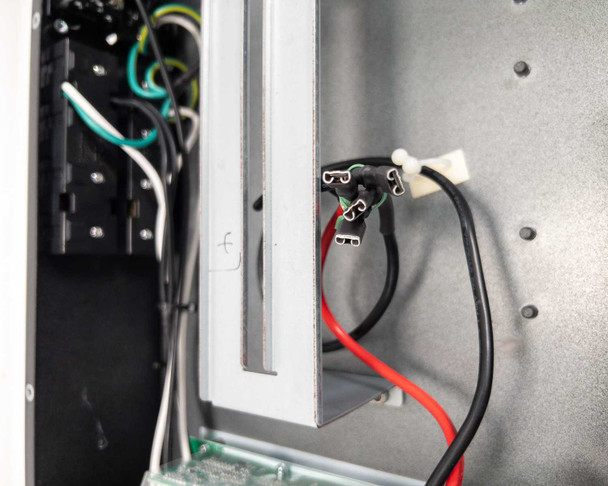

- Battery Requirement: (2) 12V 9AH sealed lead-acid — NOT INCLUDED
- Certifications: UL listed, cUL listed, RoHS compliant
- Includes: Power input cable (as shown in photos)
- Does NOT include internal batteries

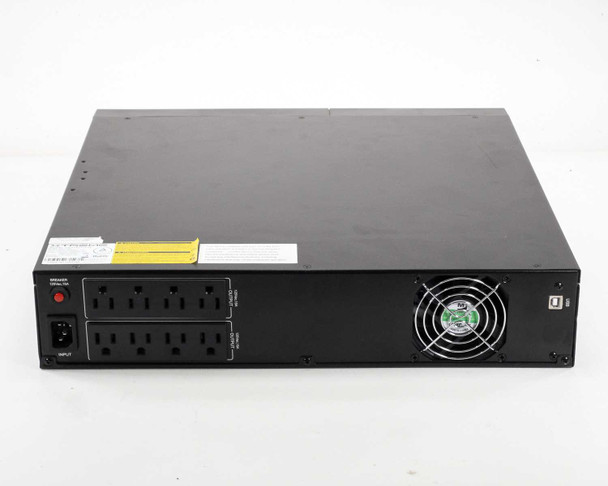

- Known issues: constant audible alarm that does not respond to the Mute button; rear cooling fan does not appear to be functioning
Applications
Line interactive UPS units like the V80-1500 are standard equipment in server rooms, network closets, and small data centers, where they protect servers, network switches, storage arrays, and workstations from brownouts, spikes, and outages. The pure sine wave output makes the V80-1500 compatible with active PFC power supplies found in most modern servers and enterprise networking gear — a requirement that simulated or stepped sine wave units cannot meet. AVR is particularly useful in environments with unstable utility power, as it corrects voltage sags and swells without battery drain. The 2U rackmount form factor fits standard 19-inch equipment racks. At 1500VA / 900W, this class of UPS is well suited to protecting a small server, NAS enclosure, or a rack of network switches during short outages or while systems are shut down gracefully. This unit was manufactured in late 2020.
This Xtreme Power Conversion V80-1500 Line Interactive UPS has been powered and tested at our facility and is in working order. The unit was plugged in, confirmed to power on, and output from the rear outlets was verified as successful. Two known issues: the UPS emits a constant beep that does not stop even when the Mute button is pressed, and the rear cooling fan does not appear to be functioning. The internal batteries have been removed prior to reaching our facility and are not included — the unit will require (2) 12V 9AH batteries for battery backup operation. Power input cable is included as shown in the photos. The exterior shows normal used wear consistent with a rack-mounted unit. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Xtreme Power Conversion |
Model: |
V80-1500 |
MPN: |
V80-1500 |
SKU: |
52986 |
Type: |
Line Interactive UPS |
Output Volt Ampere: |
1500VA |
Output Wattage: |
900W |
Input Voltage: |
120V AC, 50/60Hz |
Output Voltage: |
120V AC |
Input Current: |
12A |
Input Frequency: |
50/60Hz |
Voltage Range: |
82 - 148 VAC |
Waveform Type: |
Pure Sine Wave |
Voltage Regulation: |
Automatic Voltage Regulation (AVR) |
Typical Transfer Time: |
2–6 ms |
Battery Type: |
(2) 12V 9AH — NOT INCLUDED |
Phase: |
Single Phase |
Form Factor: |
2U Rackmount |
Input Connector: |
IEC C14 |
Output Outlets: |
8x NEMA 5-15R (two banks of 4), 125V AC 15A |
Rear Breaker: |
125VAC 15A |
Display: |
LCD front panel |
Front Panel Controls: |
Power button, Mute button |
Certifications: |
UL, cUL listed; RoHS compliant |
Country/Region of Manufacture: |
China |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Cables included. Batteries NOT included. Constant beep; rear fan not functioning. |
Condition Notes: |
Xtreme Power Conversion V80-1500 UPS tested and functional — output verified from rear outlets. Known issues: constant beep (Mute non-functional), rear fan not working. Batteries NOT included. Cables included. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
