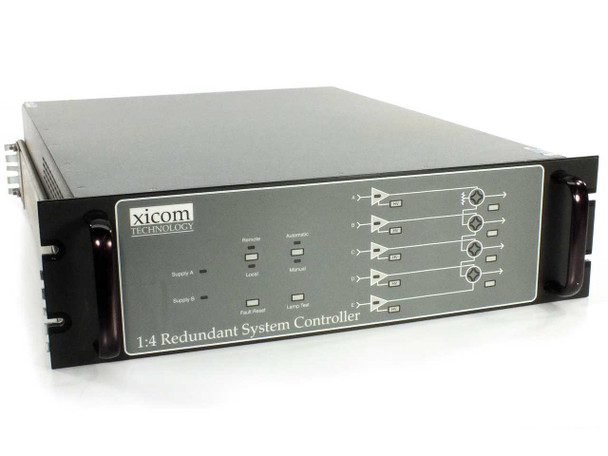

Xicom XTC-140D 1:4 Redundant System Controller 305-0244-101 w/ 4 Cable Sets
This is a 4U rackmount redundancy controller for satellite earth station amplifier systems. It manages 1:4 redundancy switching—one standby amplifier and four online units—using dual power supplies and supporting both local and remote control modes.
Specifications & What's Included
- Model: XTC-140D; MPN: 305-0244-101
- 5 amplifier ports (A–E) with RS-232 and RS-485 interfaces
- Dual redundant power supplies (100–260 VAC)

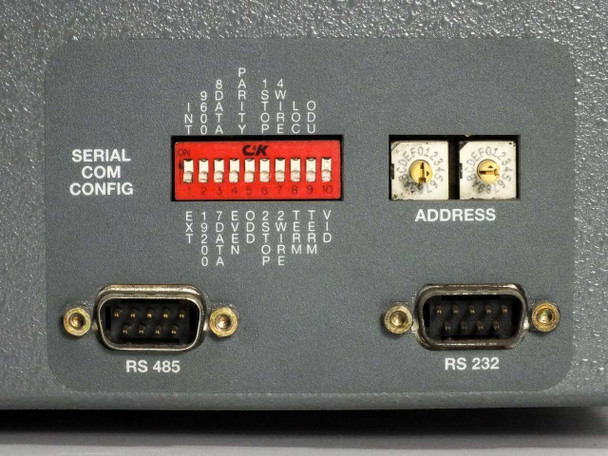

- DB15 and DB9 connectors (AUX, W/G Switch, RS-232, RS-485, Ext Fault)
- Manual and automatic control modes; local and remote operation

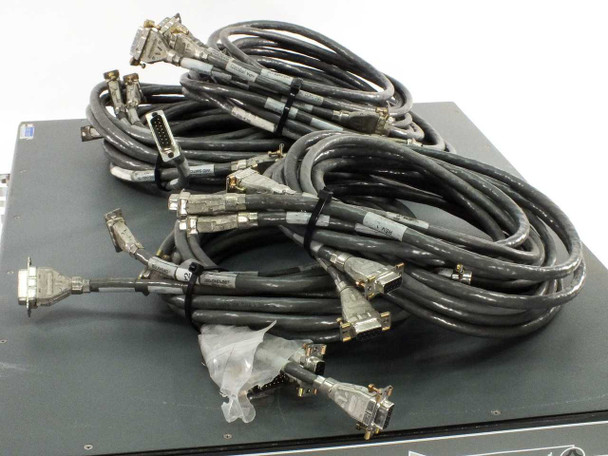

- Includes 4 cable sets
Applications
The XTC-140D is designed for satellite SSPA and HPA amplifier redundancy switching in earth stations. It provides automatic failover between amplifiers and is compatible with Xicom satellite communication amplifier systems. This type of controller is standard in broadcast uplink and telecom satcom stations requiring high-availability amplifier configurations.
Condition: Used
This Xicom Technology XTC-140D 1:4 Redundant System Controller powers on and the front panel indicators light up. The cooling fans run, though they spin noticeably loudly. The unit was pulled from an active satcom earth station where it had been in service. The chassis shows normal wear consistent with rack-mounted field use. All four cable sets are included, as shown in the photos. Please view our photo set and contact us if you have any questions.
This Xicom Technology XTC-140D 1:4 Redundant System Controller powers on and the front panel indicators light up. The cooling fans run, though they spin noticeably loudly. The unit was pulled from an active satcom earth station where it had been in service. The chassis shows normal wear consistent with rack-mounted field use. All four cable sets are included, as shown in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Xicom Technology |
Model: |
XTC-140D |
MPN: |
305-0244-101 |
Type: |
1:4 Redundant System Controller |
SKU: |
51590 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes 4 sets of interface cables |
Country/Region of Manufacture: |
United States |
Form Factor: |
Rackmount, 4U |
Power Requirements: |
100-260 VAC |
Redundancy Configuration: |
1:4 (one spare, four online amplifiers) |
Number of Amplifier Ports: |

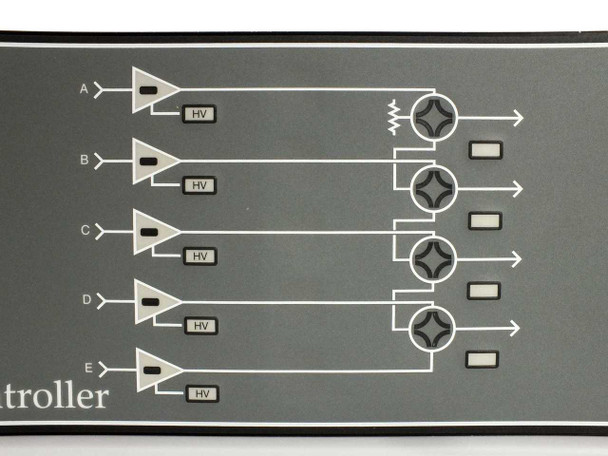

5 (A, B, C, D, E) |
Interface Type: |
RS-232, RS-485 |
Connector Types: |
DB15 (AUX, W/G Switch), DB9 (RS-232, RS-485, Ext Fault) |
Rear Connectors: |

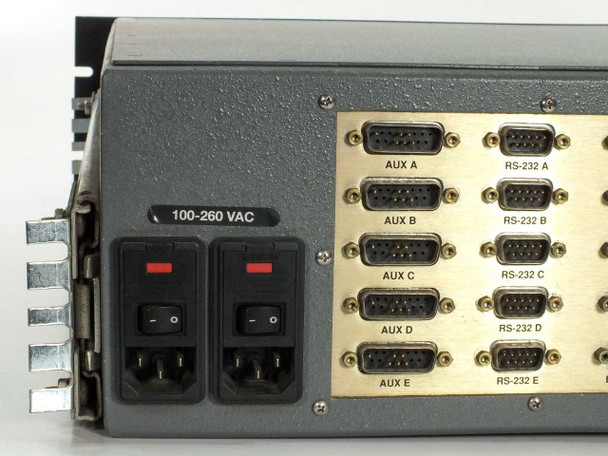

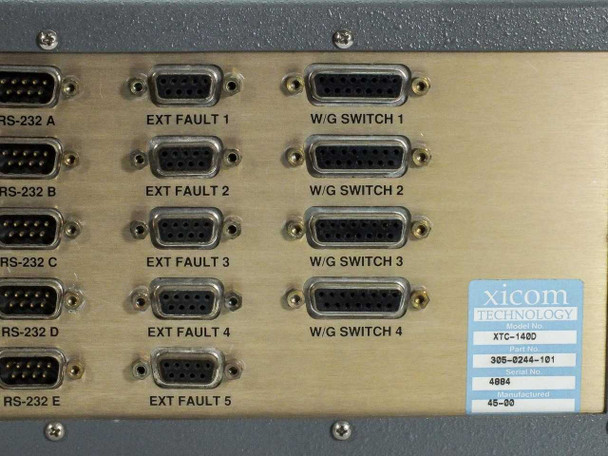

AUX A-E, RS-232 A-E, W/G Switch 1-4, Ext Fault 1-5 |
Control Modes: |
Local / Remote, Manual / Automatic |
Front Panel Indicators: |

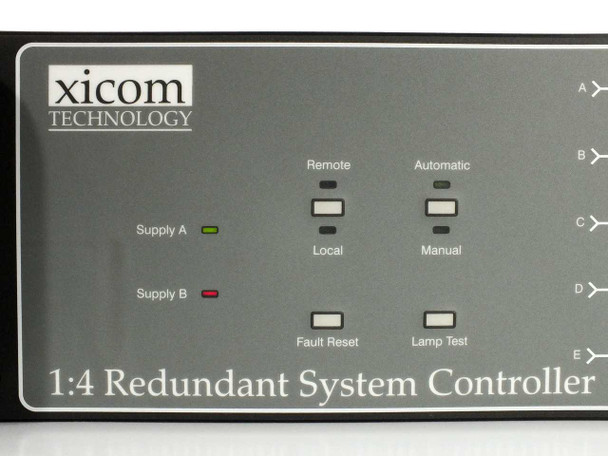

Supply A (green), Supply B (red), Remote, Local, Automatic, Manual, Fault Reset, Lamp Test |
Dual Power Supplies: |
Yes – Supply A and Supply B (redundant) |
Application: |
Satellite earth station SSPA/HPA redundancy switching |
Compatible With: |
Xicom SSPA / HPA amplifier systems, satcom earth stations |
Manufacture Date: |

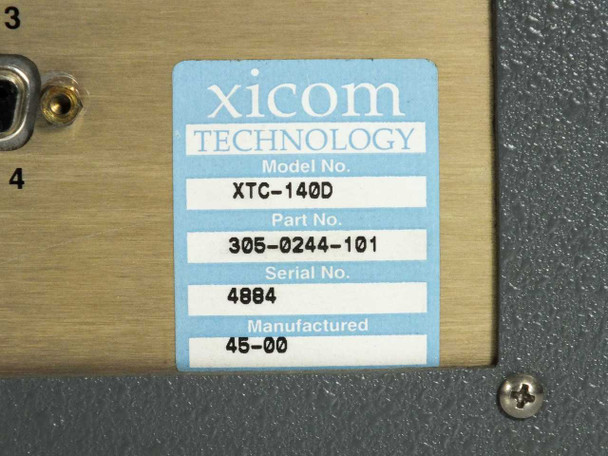

45-00 (month-year per label) |
Serial Number Reference: |
Internal use only — see internal_fields |
Condition Notes: |
Xicom XTC-140D 1:4 Redundant System Controller powers on, front panel lights up, fans spin (loudly). Pulled from a working satcom station. Includes 4 cable sets. Normal rack-use wear. |
