Xerox N17 Logic Board 140E37101A1 Parallel Serial RJ45 BNC Ethernet NIC

(No reviews yet) Write a Review
SKU:
40720
MPN:
140E37101A1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Xerox N17 Logic Board 140E37101A1 – angled front view showing bracket with Parallel, Serial, RJ45, and BNC ports and green PCB
  • Xerox N17 140E37101A1 Controller Board – reverse angled view showing full PCB with Flash memory chips, ICs, and edge connectors
  • Xerox N17 140E37101A1 PCB close-up – board silkscreen reads '140E37101A1 CONTROLLER' with U13 and U14 ICs visible

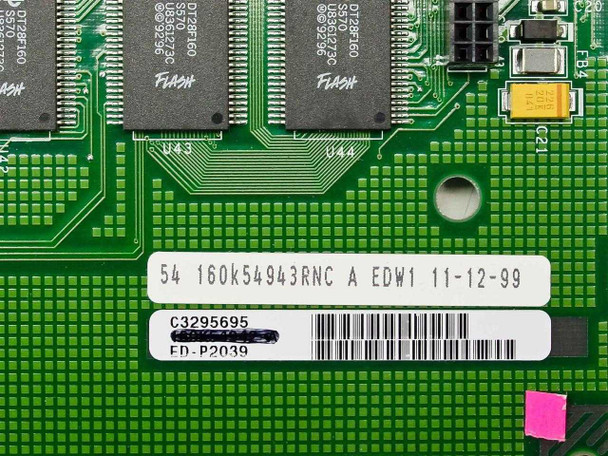

  • Xerox N17 logic board close-up – label reads '54 160k54943RNC A EDW1 11-12-99' with Flash memory chips and barcode sticker C3295695
  • Xerox N17 140E37101A1 bracket close-up – rear I/O ports: Parallel (Centronics), Serial (DB9), RJ45 E'Net, and BNC connectors; Optional NIC area labeled
$20.00
Was: $40.00
Current Stock: 1

Sold Out

Description

Xerox N17 Logic Board 140E37101A1 Parallel Serial RJ45 BNC Ethernet NIC

Controller board for the Xerox N17 laser printer. Manages print operations and provides integrated networking capability with multiple interface options.

Specifications & What's Included

  • Model: Xerox N17
  • Part Number: 140E37101A1
  • Interfaces: Parallel (Centronics), DB9 Serial, RJ45 Ethernet, BNC Ethernet
  • Networking: 10Base-T (RJ45) and 10Base2 (BNC)
  • Integrated NIC included on board
  • Date Code: 11-12-99, Revision A EDW1
  • Manufactured: United States

Applications

Used in Xerox N17 laser printer systems for local and network printing environments. Supports both legacy 10Base2 and standard 10Base-T Ethernet connections, allowing integration into older networks or direct printer sharing via parallel and serial connections.

Condition: Used
This Xerox N17 Logic Board (140E37101A1) has been inspected and is in good used condition. The PCB is clean with no visible damage, cracked components, or burnt areas. The bracket shows minor scuffs typical of a pulled board, and the I/O connectors — Parallel, Serial, RJ45, and BNC — all appear intact and undamaged. Three Flash memory chips and the main controller ICs are present and seated. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Xerox
Model:
N17
MPN:
140E37101A1
Type:
Printer Logic / Controller Board with Networking
SKU:
40720
Compatible With:
Xerox N17 Laser Printer
Interface:
Parallel, Serial, RJ45 Ethernet, BNC Ethernet
Networking:
10Base-T (RJ45) and 10Base2 (BNC) Ethernet
Connector Types:
Parallel (Centronics), DB9 Serial, RJ45, BNC
Form Factor:
Card / Module
Optional NIC:
Included — integrated on board
Board Marking:
140E37101A1 CONTROLLER
Date Code:
11-12-99
Revision:
A EDW1
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Logic board with integrated NIC; includes Parallel, Serial, RJ45, and BNC ports.
Country/Region of Manufacture:
United States
Condition Notes:
Xerox N17 Logic Board 140E37101A1 inspected and in good used condition. PCB clean, no visible damage. I/O connectors intact. Flash chips and controller ICs present. Minor cosmetic wear on bracket.
