Description
WR75 to SMA Waveguide Adapter Transition 10-15 GHz X-Band RF Microwave AD-75-3MM
Waveguide to coaxial adapter that transitions WR75 waveguide to SMA female connector. Operates across 10–15 GHz X-Band frequency range for RF and microwave signal transmission and measurement.
Specifications & What's Included
- Waveguide Size: WR75 with standard 4-hole flange
- Coax Connector: SMA Female, gold-plated center pin
- Frequency Range: 10–15 GHz (X-Band/Ku-Band)
- Body Material: Machined aluminum/stainless steel
- Model: AD-75-3MM
Applications
WR75 adapters are used in microwave test systems, radar installations, satellite communications equipment, and RF laboratory benches. This transition component connects waveguide transmission systems to coaxial instrumentation and test equipment operating in the X-Band frequency range. Commonly found in defense, aerospace, and telecommunications infrastructure.
Condition: Used

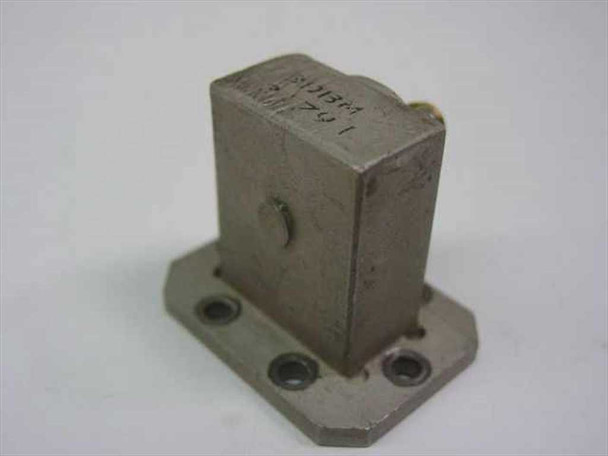

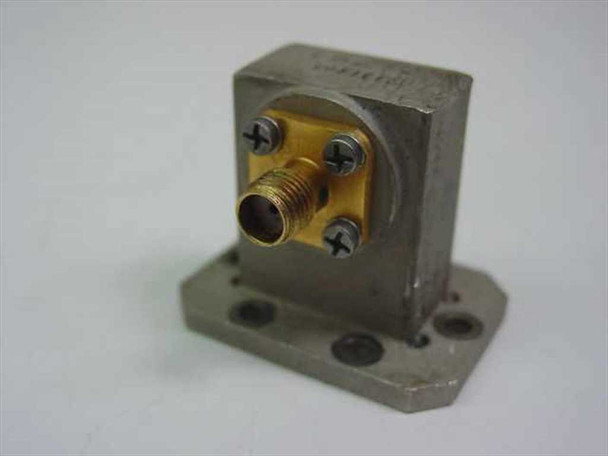

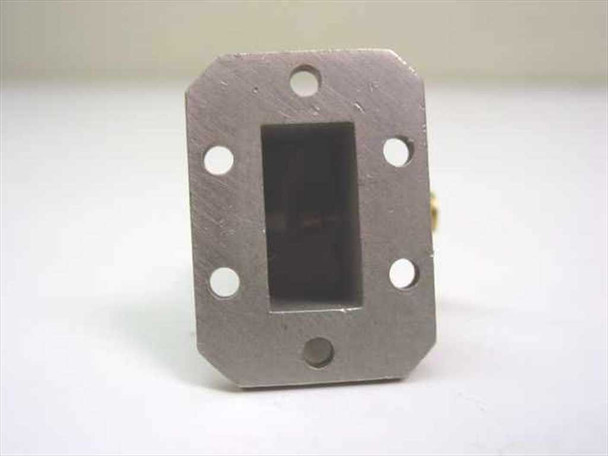

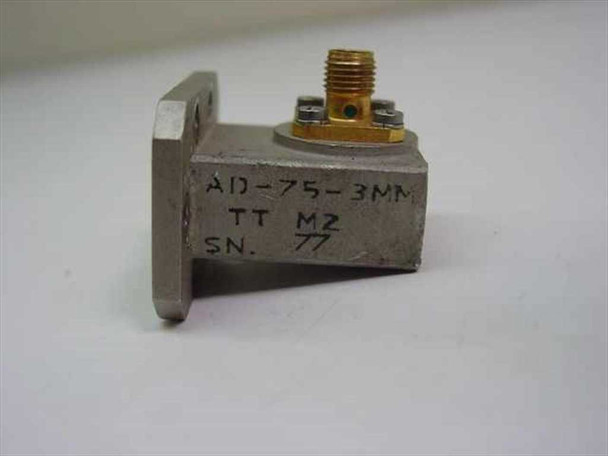

This WR75 to SMA Waveguide Transition (model AD-75-3MM) has been inspected and appears to be in good used condition. The machined metal body is solid with no visible cracks or deformation. The SMA female connector shows normal wear but the threads and gold-plated center pin look intact. The WR75 flange face and rectangular waveguide aperture appear clean with no obvious damage. There is some light surface oxidation on the body consistent with age and prior use, and the unit carries hand-written identifying markings on two sides. Please view our photo set and contact us if you have any questions.
This WR75 to SMA Waveguide Transition (model AD-75-3MM) has been inspected and appears to be in good used condition. The machined metal body is solid with no visible cracks or deformation. The SMA female connector shows normal wear but the threads and gold-plated center pin look intact. The WR75 flange face and rectangular waveguide aperture appear clean with no obvious damage. There is some light surface oxidation on the body consistent with age and prior use, and the unit carries hand-written identifying markings on two sides. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Unbranded |
Model: |
AD-75-3MM |
MPN: |
AD-75-3MM |
Type: |
Waveguide to Coax Adapter / Transition |
SKU: |
33261 |
Waveguide Size: |
WR75 |
Coax Connector Type: |
SMA Female |
Frequency Range: |
10–15 GHz |
Frequency Band: |
X-Band / Ku-Band |
Flange Type: |
WR75 Standard Flange (4-hole) |
Flange Mounting Holes: |
4 |
Body Material: |
Machined Metal (aluminum/stainless) |
Connector Finish: |
Gold-plated SMA center pin |
Seller Notes: |
Single unit; SMA port and WR75 flange face intact as shown in photos. |
Application: |
Microwave / RF test, radar, satellite, lab bench |
Condition Notes: |
This WR75 to SMA Waveguide Transition (model AD-75-3MM) has been inspected and appears to be in good used condition. The machined metal body is solid with no visible cracks or deformation. |
