Winsmith MDSX E30 Indexing Drive E30MDSX532X0JM Baldor ZDM3581T 1HP 230/460V

(No reviews yet) Write a Review
SKU:
51772
MPN:
MDSX E30
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
265.00 LBS
Shipping:
Calculated at Checkout
  • Winsmith MDSX E30 indexing drive with Baldor ZDM3581T motor assembly on pallet — front-left 3/4 view showing Montalvo KL 1800 brake and hydraulic hose

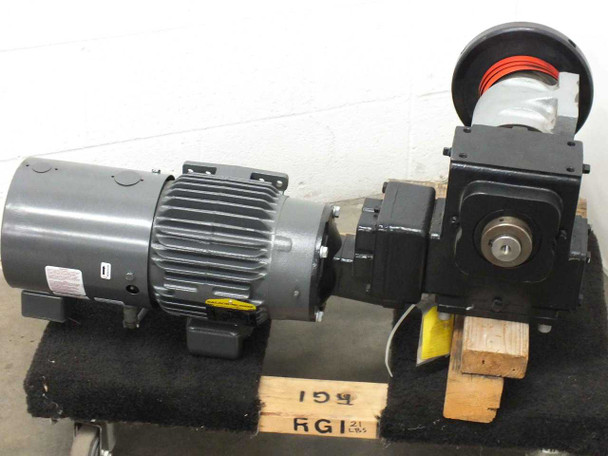

  • Winsmith E30 MDSX indexing drive and Baldor ZDM3581T vector motor — right side view showing motor cooling fins and output shaft

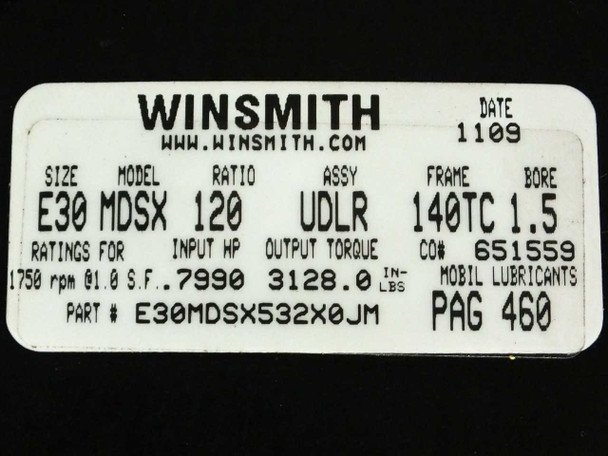

  • Winsmith MDSX E30 indexing drive nameplate: model E30MDSX532X0JM, ratio 120:1, 3128 in-lb torque, 1HP input, frame 140TC, bore 1.5 in

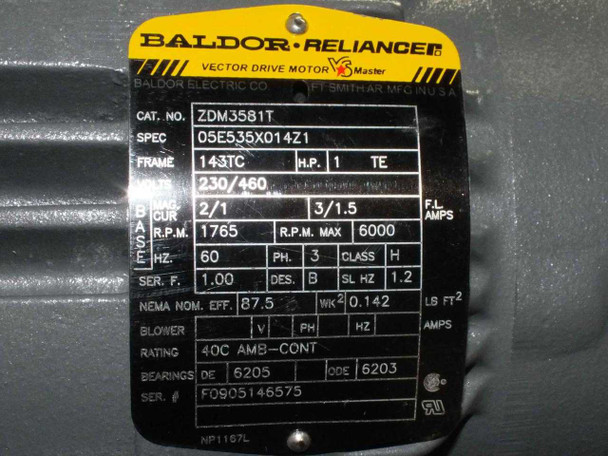

  • Baldor Reliance Vector Drive Motor nameplate: model ZDM3581T, 1HP, 230/460V, 3-phase, 60Hz, 1765 RPM, frame 143TC, TE enclosure

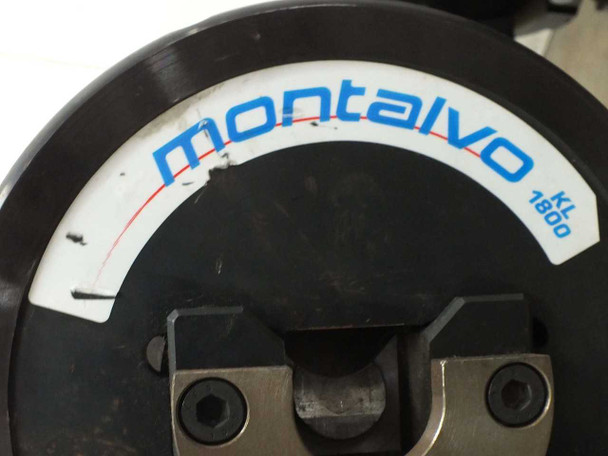

  • Montalvo KL 1800 tension brake disc closeup on Winsmith E30 indexing drive output
$1,400.00
Was: $2,800.00
Current Stock: 1

Sold Out

Description

Winsmith MDSX E30 Indexing Drive E30MDSX532X0JM Baldor ZDM3581T 1HP 230/460V

Rotary indexing drive with integrated 1 HP three-phase motor. Delivers 3128 in-lb output torque at 120:1 reduction ratio from 1750 RPM input.

Specifications & What's Included

  • Winsmith MDSX E30 indexing drive, ratio 120:1, output torque 3128 in-lb
  • Baldor ZDM3581T motor: 1 HP, 230/460V, 3-phase, 60 Hz, 1765 RPM
  • Motor frame 143TC, NEMA Class H, 87.5% efficiency, TE enclosure
  • Input bore 1.5 in, UDLR assembly configuration
  • Montalvo KL 1800 tension brake/clutch included
  • Manufactured November 2009, USA-made

Applications

Indexing drives provide synchronized rotary motion for automated machinery and assembly equipment. This E30 model commonly appears in packaging lines, material handling systems, and industrial automation requiring precise positional control. Compatible with standard three-phase industrial power systems at 230 or 460 volts.

Condition: Used
This Winsmith MDSX E30 Indexing Drive (E30MDSX532X0JM) with Baldor ZDM3581T 1HP vector motor was pulled from a working environment. The unit shows typical used industrial wear — the motor housing and gearbox body have minor surface scuffs consistent with shop use, and there is some light soiling on the exterior. The Montalvo KL 1800 brake disc is visible and appears intact. A hydraulic hose/fitting is present on the indexing head. The unit sits on a wooden shipping skid as shown. It has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Winsmith
Model:
MDSX E30
MPN:
E30MDSX532X0JM
Secondary Model:
ZDM3581T
SKU:
51772
Type:
Rotary Indexing Drive with Motor
Size:
E30
Ratio:
120:1
Assembly:
UDLR
Frame:
140TC
Bore:
1.5 in
Output Torque:
3128 in-lb
Input HP:
1 HP
Input RPM:
1750 RPM
Service Factor:
1.0
Lubricant:
Mobil PAG 460
CO Number:
651559
Date Code:
1109 (November 2009)
Motor Brand:
Baldor Reliance
Motor Model:
ZDM3581T
Motor Spec:
05E535X014Z1
Motor Frame:
143TC
Motor HP:
1 HP
Motor Voltage:
230/460V
Motor Phase:
Three Phase
Motor Frequency:
60 Hz
Motor RPM:
1765 RPM (6000 max)
Motor Amps:
2/1 (base), 3/1.5 (full load)
Motor Class:
H
Motor Enclosure:
TE (Totally Enclosed)
Motor Design:
B
Motor Service Factor:
1.00
Motor NEMA Efficiency:
87.5%
Motor Type:
Vector Drive Motor (VS Master)
Motor Bearings:
DE 6205 / ODE 6203
Brake Component:
Montalvo KL 1800 tension brake/clutch
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
United States
Seller Notes:
Includes Winsmith MDSX E30 indexing drive and Baldor ZDM3581T motor assembly
Condition Notes:
Winsmith MDSX E30 Indexing Drive (E30MDSX532X0JM) with Baldor ZDM3581T 1HP 230/460V 3-phase motor. Pulled from a working environment. Shows normal shop wear. Not bench-tested at our facility. Sold as-is.
View AllClose

Related Products

Related Products

Winsmith E30 MDSX indexing drive with Baldor ZDM3581T 1HP motor – full assembly right-side view showing reducer, motor, and mounting bracket Winsmith E30 MDSX helical worm indexing drive assembly – left-side view showing reducer housing, motor wiring, and vertical mounting plate
Add to Cart
Quick view

Winsmith E30 MDSX Indexing Drive Helical Worm Reducer Baldor ZDM3581T 1HP

Winsmith

$1,350.00
Was: $2,700.00
Winsmith E30 MDSX Indexing Drive Helical Worm Reducer Baldor ZDM3581T 1HPThis is a Winsmith E30 MDSX helical/worm indexing drive paired with a Baldor Reliance ZDM3581T 1HP vector drive motor. The...
51773
SKU:
51773
Availability:
Usually ships within 1-2 business days.
Weight:
275.00 LBS
Brand:
Winsmith
Model:
E30 MDSX
MPN:
E30MDSX532X0JM
Secondary Model:
ZDM3581T
Type:
Helical/Worm Indexing Drive with Motor
SKU:
51773
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes Baldor ZDM3581T 143TC 1HP motor and Montalvo KL1800 brake/clutch
Country/Region of Manufacture:
United States
Size:
E30
Ratio:
120:1
Assembly:
UDLR
Frame:
140TC
Bore:
1.5 in
Output Torque:
3128.0 in-lbs
Input HP (at 750 RPM, 1.0 SF):
0.7990 HP
Lubricant:
Mobil PAG 460
Date Code:
1109 (November 2009)
CO#:
651559
Motor Brand:
Baldor Reliance
Motor Catalog Number:
ZDM3581T
Motor Spec:
05E535X014Z1
Motor Frame:
143TC
Motor HP:
1 HP
Motor Voltage:
230/460V
Motor Phase:
3-Phase
Motor Frequency:
60 Hz
Motor Base RPM:
1765 RPM
Motor Max RPM:
6000 RPM
Motor Magnetizing Current:
2/1
Motor Full Load Amps:
3/1.5
Motor Service Factor:
1.00
Motor Class:
H
Motor NEMA Efficiency:
87.5%
Motor Enclosure:
TE (Totally Enclosed)
Motor Rating:
40C AMB-CONT
Motor DE Bearing:
6205
Motor ODE Bearing:
6203
Motor Type:
Vector Drive Motor (VS Master)
Encoder Connector:
A, B, ZIC-INDEX, +VDC, ZICD-INDEX, SHIELD, CASE GROUND
Brake/Clutch Component:
Montalvo KL1800
Overall Dimensions:
32" x 29" x 30" tall
Compatible With:
Web tension control, converting, packaging machinery
Form Factor:
Floor/Base Mount
Power Requirements:
230/460V AC, 3-Phase, 60Hz
Condition Notes:
Winsmith E30 MDSX indexing drive with Baldor ZDM3581T 1HP motor. Inspected and in good used condition. Pulled from a working environment where it was in active use. Normal industrial wear. Please contact us with any questions.
Chanto JG20X5 BD-2AA-008-P01A pneumatic indexing drive assembly – front-left isometric view showing full unit with valves and cylinder Chanto JG20X5 BD-2AA-008-P01A indexing drive – rear-left isometric view showing teal motor housing, mounting plate, and tooling head
Add to Cart
Quick view

Chanto JG20X5 BD-2AA-008-P01A Indexing Drive Humphrey TAC2 41P Pneumatic

Indexing Drive

$375.00
Was: $750.00
Chanto JG20X5 BD-2AA-008-P01A Indexing Drive Humphrey TAC2 41P PneumaticPneumatic indexing drive unit designed for rotary positioning and intermittent motion control in industrial automation. Outputs...
49418
SKU:
49418
Availability:
Usually ships within 1-2 business days.
Weight:
77.00 LBS
Brand:
Chanto
Model:
JG20X5
MPN:
BD-2AA-008-P01A
Secondary Model:
BD-2AA-008-P01A
SKU:
49418
Type:
Pneumatic Indexing Drive
Actuation Type:
Pneumatic
Included Valve Brand:
Humphrey
Included Valve Model:
TAC2 41P
Included Cylinder Brand:
Bimba (Chanto JG20X5)
Included Cylinder Pressure Rating:
10 kgf/cm²
Included Sensor:
Starrett JW-190-R position sensor
Fittings/Connectors:
Push-to-connect pneumatic fittings (Bimco TF18-40-18M)
Drive Output:
Toothed belt pulley / timing pulley output
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes Humphrey TAC2 valves, Starrett sensor, and Bimba cylinder as assembled
Country/Region of Manufacture:
Taiwan
Condition Notes:
Used Chanto JG20X5 BD-2AA-008-P01A pneumatic indexing drive. Inspected and in good condition. Surface rust on flange faces; Humphrey TAC2 valves, Starrett sensor, and cylinder all present and intact.

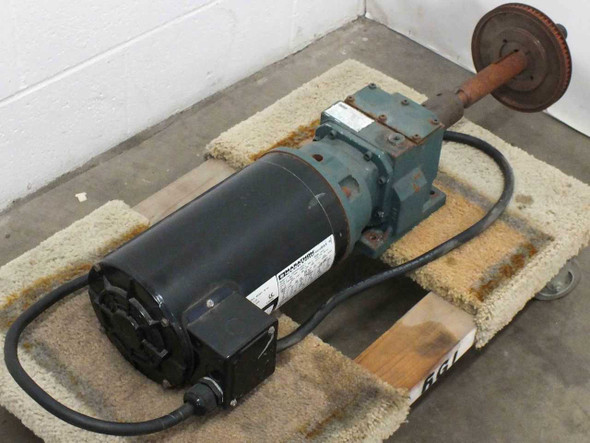

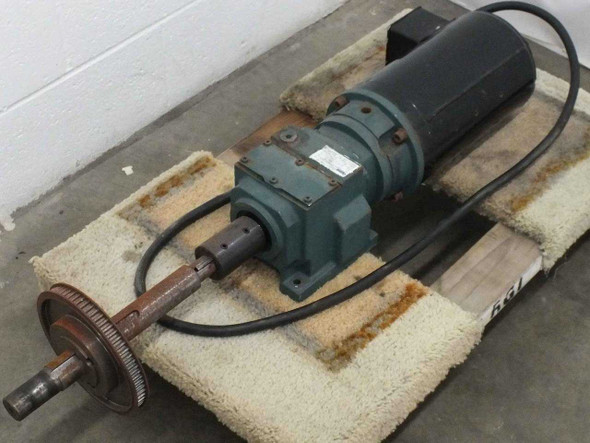

Dodge Quantis HB382CN140TC gearmotor with Marathon Electric motor and spur gear output shaft – front-left view on pallet Dodge Quantis HB382CN140TC motorized indexing drive gearmotor – right-side view showing Marathon Electric motor nameplate and output shaft assembly
Add to Cart
Quick view

Dodge Quantis HB382CN140TC Gearmotor 230/460V 2.21HP 24.5:1 Ratio Marathon

Dodge

$450.00
Was: $900.00
Dodge Quantis HB382CN140TC Gearmotor 230/460V 2.21HP 24.5:1 Ratio Marathon ElectricThree-phase AC motorized indexing drive gearmotor with integrated Marathon Electric induction motor. Rated 2.21 HP...
51691
SKU:
51691
Availability:
Usually ships within 1-2 business days.
Weight:
98.00 LBS
Brand:
Baldor-Dodge
Model:
HB382CN140TC
MPN:
HB382CN140TC
Secondary Model:
7710391-001
SKU:
51691
Type:
Motorized Indexing Drive Gearmotor
Product Series:
Quantis
Product Size:
QUA38
Voltage Rating:
230/460V AC
Current Rating (Amps):
4.8/2.4 A
Power Rating:
2.21 HP
Input Speed:
1,750 RPM
Gear Ratio:
24.5:1
Output Torque:
1,947 in-lb Max
Phase:
Three Phase
Motor Frame:
NEMA 145TC
Motor Mount:
NEMA 140
Mounting Position:
A1
Output Shaft Size:
1.000 x 1.97 inch
Lube Type:
STD
Service Factor:
1.00
Motor Manufacturer:
Marathon Electric
Motor Model:
HVJ 145THTR5329AA P
Motor Type:
3-Phase Inverter Duty AC Induction Motor
Operations Manual:
MN1697
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; includes attached motor and gearbox assembly with output shaft and spur gear
Country/Region of Manufacture:
United States
Condition Notes:
Dodge Quantis HB382CN140TC gearmotor, used surplus. Pulled from a working environment. Unit is intact and complete. Output shaft and spur gear show surface rust; gearbox housing and motor show normal industrial wear.

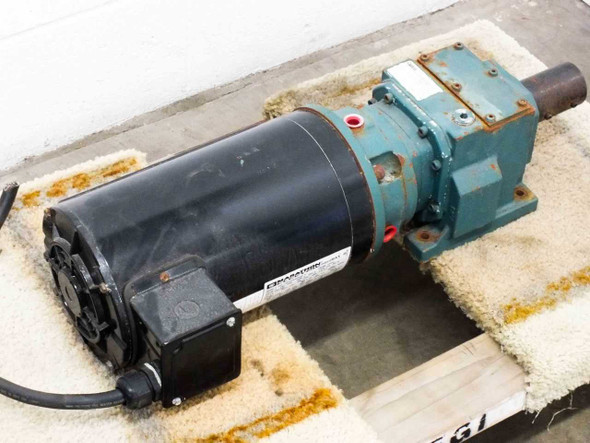

Dodge Quantis HB382CN140TC gearmotor with Marathon Electric motor — left side and output shaft view Dodge Quantis HB382CN140TC gearmotor — right side view showing Marathon Electric motor nameplate label
