Description
Wilkerson A08-HH-P00 A07-AH-P00 Refrigerated Air Dryer 460V 3Ph 150 SCFM
The Wilkerson A08-HH-P00 is a refrigerated compressed air dryer in a floor-standing cabinet enclosure. It removes moisture from compressed air by cooling the air stream to near its pressure dew point, causing water vapor to condense and drain away before the dry air continues downstream. This unit includes an integrated 1.5 HP refrigeration compressor rated at 2095 watts. The listing also references a companion model, the A07-AH-P00, which shares the same platform at 115V single-phase with lower flow ratings; both sets of specifications are detailed below.
Specifications & What's Included
- Primary Model: Wilkerson A08-HH-P00
- Voltage: 460V AC
- Phase: 3-Phase
- Frequency: 60 Hz
- Compressor: 1.5 HP, 2095 watts
- Flow Rate: 150 SCFM @ 39°F PDP
- Flow Rate: 210 SCFM @ 50°F PDP
- Secondary Model: Wilkerson A07-AH-P00
- Voltage (A07): 115V AC
- Phase (A07): Single Phase
- Frequency (A07): 60 Hz
- Flow Rate (A07): 100 SCFM @ 39°F PDP
- Flow Rate (A07): 140 SCFM @ 50°F PDP
- Form Factor: Floor-standing cabinet enclosure

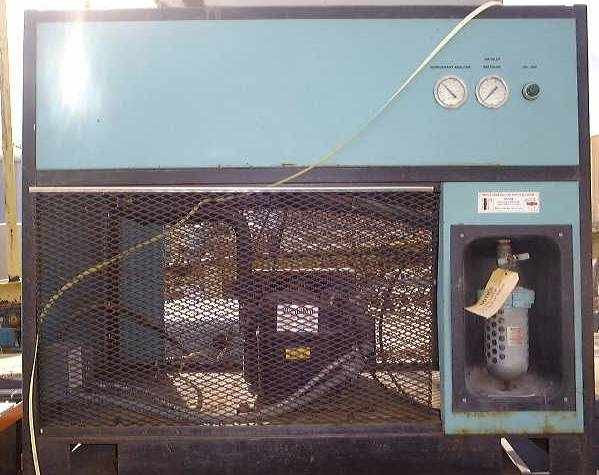

- Front panel: Two gauges (suction and discharge or inlet/outlet pressure), mesh lower section with visible internal components
- Right-side filter/separator assembly present
Applications
Refrigerated air dryers are standard equipment in industrial compressed air systems. They protect downstream equipment — pneumatic tools, actuators, instrumentation, control valves, and spray finishing systems — from moisture damage, corrosion, and freeze-ups in cold environments. By chilling the compressed air to a low pressure dew point (typically 35–50°F), they drop out the bulk of the water vapor before it can reach process equipment. Wilkerson is a well-established brand in compressed air filtration and treatment, and their refrigerated dryers have been widely used in manufacturing plants, automotive shops, and general industrial facilities. Units like the A08-HH-P00 are suited to medium-to-large air systems where 3-phase power is available, while the single-phase A07-AH-P00 variant serves smaller installations or facilities without 3-phase service.
This Wilkerson A08-HH-P00 Refrigerated Air Dryer was pulled from a working industrial environment where it was previously in service. The unit has been visually inspected and photographed. The blue cabinet exterior shows typical wear for equipment of this age, including surface rust on the lower mesh panel and frame. The internal compressor motor and refrigeration components are visible through the mesh and appear intact. The right-side filter/separator assembly is present. It has not been powered up or tested at our facility. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Wilkerson |
Model: |
A08-HH-P00 |
Secondary Model: |
A07-AH-P00 |
MPN: |
A08-HH-P00 |
SKU: |
10789 |
Type: |
Refrigerated Air Dryer |
Voltage: |
460V (A08-HH-P00); 115V (A07-AH-P00) |
Phase: |
3-Phase (A08-HH-P00); Single Phase (A07-AH-P00) |
Frequency: |
60 Hz |
Horsepower: |
1.5 HP |
Power (Watts): |
2095W |
Max Flow Rate: |
150 SCFM @ 39°F PDP; 210 SCFM @ 50°F PDP |
Pressure Dew Point (PDP): |
39°F and 50°F |
Flow Rate (A07-AH-P00): |
100 SCFM @ 39°F PDP; 140 SCFM @ 50°F PDP |
Application: |
Compressed Air Drying / Air Treatment |
Form Factor: |
Floor-Standing Cabinet |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit only — no additional accessories observed. |
Condition Notes: |
This Wilkerson A08-HH-P00 Refrigerated Air Dryer was pulled from a working industrial environment. Visually inspected; shows surface rust on the mesh panel and frame. Not powered or tested at our facility. Please contact us with questions. |
