Whitman Controls P117V-3N-C52L Vacuum Switch 2.7-28.2 inHg 250VAC 1/8 NPT

(No reviews yet) Write a Review
SKU:
48418
MPN:
P117V-3N-C52L
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

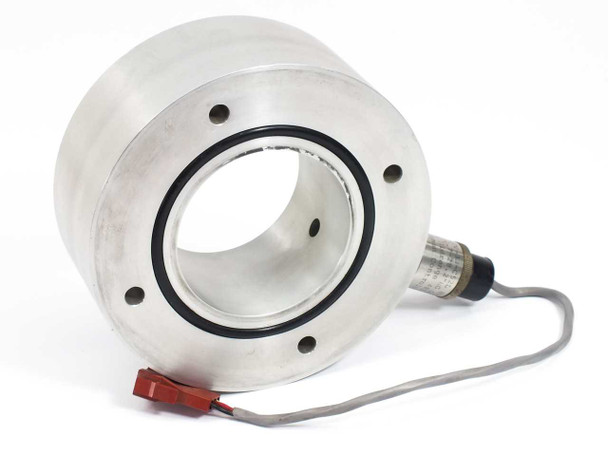

  • Whitman Controls P117V-3N-C52L vacuum switch with feedthrough adapter – angled front view showing aluminum ring body and red 2-pin connector lead
  • Whitman Controls P117V-3N-C52L vacuum switch with feedthrough adapter – rear three-quarter view showing flanged aluminum ring body and sensor assembly

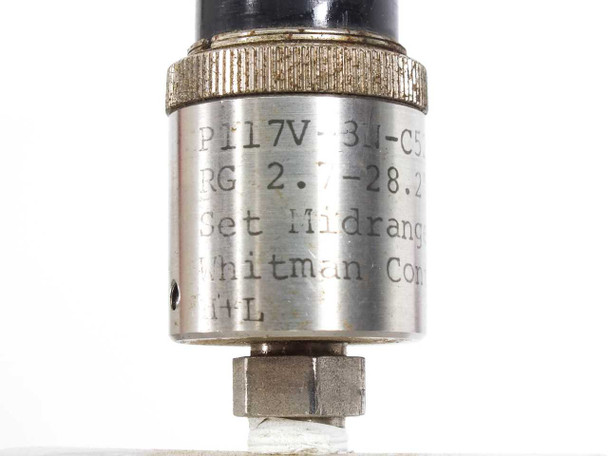

  • Whitman Controls P117V-3N-C52L vacuum switch label – close-up showing model number P117V-3N-C52L, range 2.7-28.2 inHg, and Whitman Controls marking
  • Whitman Controls P117V-3N-C52L vacuum switch label – close-up showing set midrange 483, Whitman Controls name, and partial model suffix C52L
  • Whitman Controls P117V-3N-C52L vacuum switch – close-up of red 2-pin keyed connector with gold pins on gray pigtail lead
  • Whitman Controls P117V-3N-C52L vacuum switch with feedthrough adapter – straight-on front view showing large aluminum flange ring with center bore and O-ring seal
$50.00
Was: $100.00
Current Stock: 1

Sold Out

Description

Whitman Controls P117V-3N-C52L Vacuum Switch 2.7-28.2 inHg 250VAC 1/8 NPT

This is a vacuum switch designed to monitor and control pressure levels within vacuum chambers. It operates at up to 250 VAC and 5 amps, with a set point range of 2.7 to 28.2 inHg vacuum.

Specifications & What's Included

  • Set Point Range: 2.7 – 28.2 inHg vacuum
  • Max Voltage: 250 VAC; Max Amperage: 5 Amps
  • Vacuum Port: 1/8 NPT
  • Body Material: Stainless Steel
  • Connector: 2-pin red keyed pigtail lead
  • Includes vacuum feedthrough chamber adapter (6.0" OD, 3.0" ID, 2.5" height, 1/8 FNPT port)

Applications

Vacuum switches like this are used in industrial and laboratory vacuum systems to trigger alarms or control equipment when pressure reaches specified thresholds. They are commonly found in vacuum chambers, coating systems, degassing operations, and process monitoring setups where reliable pressure indication is required.

Condition: Used
This Whitman Controls P117V-3N-C52L stainless steel body vacuum switch has been inspected and is in good used condition. The switch body, feedthrough adapter, and pigtail lead with red 2-pin connector are all present. The aluminum feedthrough ring shows light handling marks consistent with prior use, and the O-ring seal appears intact. The vacuum switch body label is legible and confirms the model and range markings. No damage or corrosion is noted. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Whitman Controls
Model:
P117V-3N-C52L
MPN:
P117V-3N-C52L
Type:
Vacuum Switch
SKU:
48418
Body Material:
Stainless Steel
Set Point Range:
2.7 - 28.2 inHg Vacuum
Max Voltage:
250 VAC
Max Amperage:
5 Amps
Set Midrange:
483
Vacuum Port Size:
1/8 NPT
Feedthrough Adapter Included:
Yes
Feedthrough Outer Diameter:
6.0 in
Feedthrough Inner Diameter:
3.0 in
Feedthrough Height:
2.5 in
Feedthrough Port Size:
1/8 FNPT
Connector Type:
2-pin red keyed connector (pigtail lead)
Application / Use Case:
Vacuum chamber pressure monitoring and control
Condition:
Used – Inspected
Seller Notes:
Includes vacuum feedthrough chamber adapter with 1/8 FNPT port
Condition Notes:
Whitman Controls P117V-3N-C52L vacuum switch inspected and in good used condition. Switch body, feedthrough adapter, and red 2-pin pigtail lead all present. No damage or corrosion noted. Please contact us with any questions.
View AllClose

Related Products

Related Products

Perkin-Elmer Vacuum Products Chamber 1 Control Panel front view showing toggle switches and yellow indicator LED Perkin-Elmer Chamber 1 Control Panel rear panel with ten circular multi-pin connectors and IEC AC power inlet
Add to Cart
Quick view

Perkin-Elmer Vacuum Products Chamber 1 Control Panel Switch Box Rackmount 110V

Perkin Elmer

$150.00
Was: $300.00
Perkin-Elmer Vacuum Products Chamber 1 Control Panel Switch Box Rackmount 110VControl panel for Perkin-Elmer vacuum deposition systems. Routes power and signals to chamber components via multiple...
20322
SKU:
20322
Availability:
Usually ships within 1-2 business days.
Weight:
13.00 LBS
Brand:
Perkin-Elmer
Model:
Chamber 1 Control Panel
MPN:
Chamber 1 Control Panel
Type:
Vacuum Chamber Control Panel / Switch Box
SKU:
20322
Form Factor:
Rackmount
Power Requirements:
110 VAC Input Only, 5A Fuse
Voltage Rating:
110 VAC
Fuse Rating:
5A
Connector Type:
Circular Multi-Pin (Mil-Spec Style), IEC AC Inlet
Number of Connectors:
10 rear circular connectors (J101–J110+)
Switch Type:
Toggle Switches (multiple circuits)
Application / Use Case:
Vacuum deposition / PVD sputtering chamber control
Compatible With:
Perkin-Elmer Vacuum Products deposition systems
Condition:
Used – Pulled from Working Environment
Seller Notes:
One broken switch noted; otherwise pulled from working environment
Condition Notes:
Perkin-Elmer Vacuum Products Chamber 1 Control Panel Switch Box. Pulled from working environment; in good used condition. One front-panel toggle switch is broken. Rear circular connectors and IEC inlet appear intact. Sold as-is for that defect.
Huntington stainless steel 90-degree DN50KF vacuum radius elbow with 1/8 inch NPT feedthrough port stub visible on body — side profile view showing Huntington logo Huntington DN50KF NW-50 stainless 90-degree vacuum elbow — angled view showing both KF flanges and elbow curve
Add to Cart
Quick view

Huntington Stainless 90° Elbow DN50KF NW-50 Vacuum Flange w/ 1/8" NPT

Huntington

$75.00
Was: $150.00
Huntington Stainless 90° Elbow DN50KF NW-50 Vacuum Flange w/ 1/8" NPT FeedthroughThis Huntington Mechanical Labs stainless steel 90-degree radius elbow is a DN50KF (NW-50) vacuum flange fitting with...
49132
SKU:
49132
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Huntington
Model:
DN50KF 90° Radius Elbow w/ Feedthrough
MPN:
DN50KF
Type:
Vacuum Flange 90-Degree Radius Elbow
SKU:
49132
Material:
Stainless Steel
Flange Standard:
DN50KF / NW-50 (ISO-KF)
Flange Size:
DN50 / NW-50
Elbow Angle:
90 Degrees
Outer Diameter (OD):
75 mm
Inner Diameter (ID):
52 mm
Tube Inner Diameter:
47 mm
Feedthrough Port:
1/8" Female NPT
Feedthrough Type:
Electrical Feedthrough
Compatible With:
DN50KF / NW-50 vacuum systems and chambers
Country/Region of Manufacture:
United States
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Stainless elbow with 1/8" NPT electrical feedthrough port. No additional accessories included.
Application:
High vacuum systems, vacuum chambers, vacuum plumbing
Condition Notes:
Huntington DN50KF NW-50 stainless 90° vacuum elbow inspected and in good used condition. Light surface marks and minor discoloration on body. NPT feedthrough weld shows heat discoloration typical of use. Both KF flange faces intact.

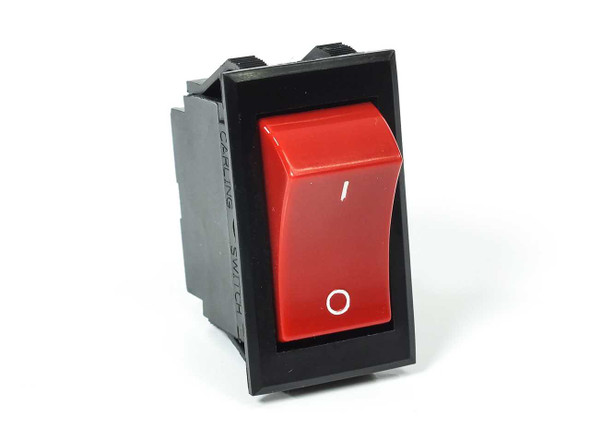

Carling TIGAS1-6S-RD-NBL-XWG1 red rocker switch front view showing red rocker with I and O markings in black housing Carling TIGAS1 red rocker switch angled rear view showing two gold blade terminals and rating label
