Wheelco Instruments

Wheelco Barber-Colman 152 S150-421 Amplitrol 0-600°C Temperature Indicator Gauge

(No reviews yet) Write a Review
SKU:
47629
MPN:
152
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
9.00 LBS
Shipping:
Calculated at Checkout

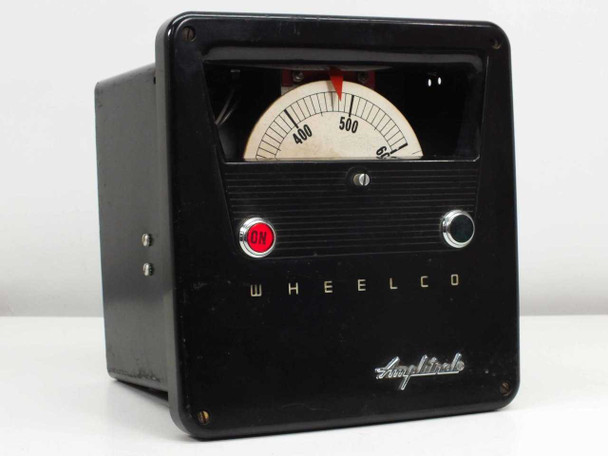

  • Wheelco Instruments Amplitrol 152 temperature gauge front view showing arc-scale 0-600°C dial, red pilot light, and chrome control knob

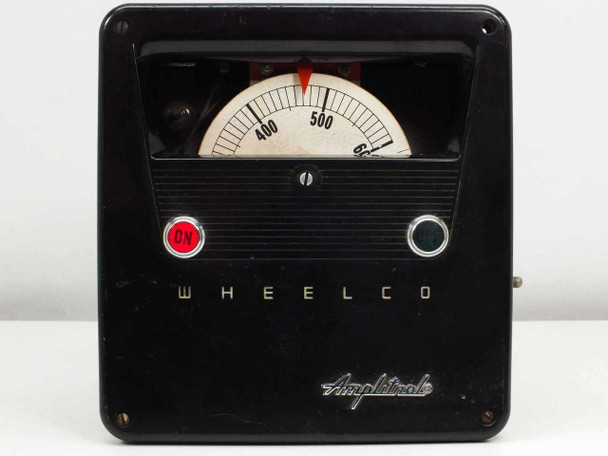

  • Wheelco Barber-Colman Amplitrol 152 temperature indicator front panel close-up with meter face and Wheelco nameplate

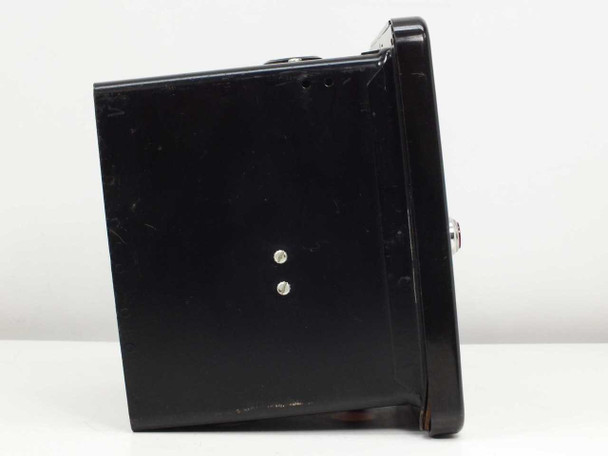

  • Right side view of Wheelco Amplitrol 152 temperature gauge showing black painted steel enclosure with mounting flange
  • Rear view of Wheelco Amplitrol 152 panel gauge showing 3-pin AC receptacle and circular knockout port

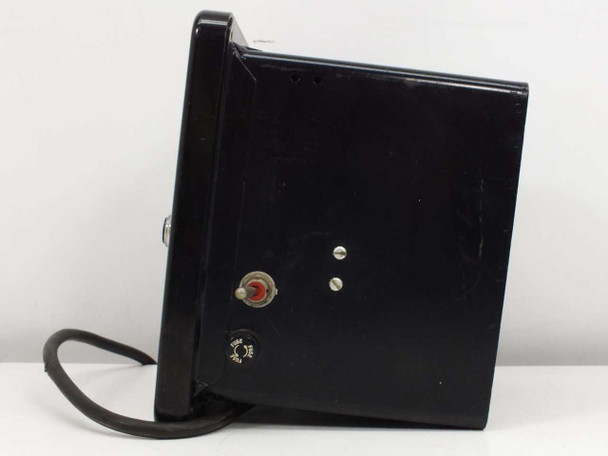

  • Left side view of Wheelco Amplitrol 152 temperature indicator showing toggle switch, red indicator, and attached AC power cord

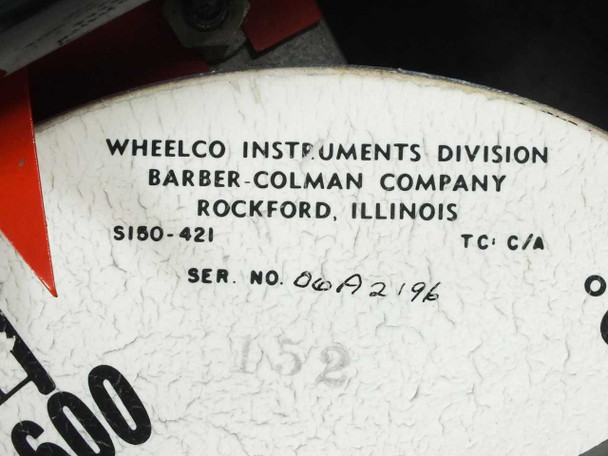

  • Close-up of Wheelco Amplitrol 152 dial face showing Wheelco Instruments Division, Barber-Colman Company label, model S150-421, TC: C/A designation, and serial number 06A2196

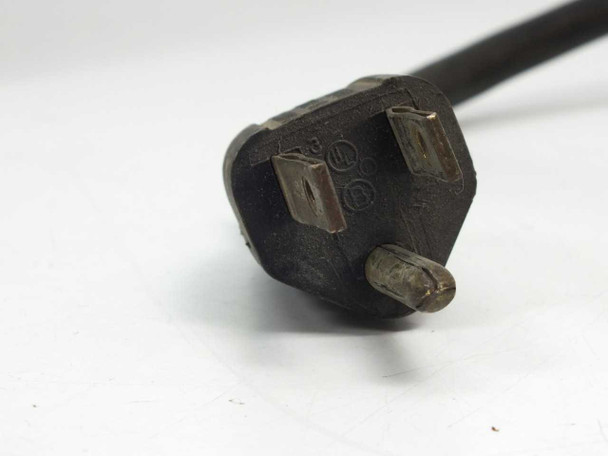

  • Close-up of the 3-prong AC power plug attached to the Wheelco Amplitrol 152 temperature gauge
$65.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Wheelco Barber-Colman 152 S150-421 Amplitrol 0-600°C Temperature Indicator Gauge

Analog thermocouple temperature indicator panel gauge manufactured by Wheelco Instruments Division. Displays temperature readings from 0 to 600°C on an illuminated arc-scale meter movement.

Specifications & What's Included

  • Model: 152 (MPN: S150-421)
  • Temperature Range: 0–600°C
  • Thermocouple Type: C/A (Chromel-Alumel)
  • Display: Illuminated analog arc-scale meter
  • Form Factor: Flush-mount panel enclosure, black
  • Power: AC hardwired with 3-prong plug
  • Rear Connector: 3-pin NEMA-style AC receptacle
  • Manufactured in Rockford, Illinois, USA
  • Includes hardwired AC power cord

Applications

Amplitrol gauges were used in industrial process control and monitoring systems where direct thermocouple temperature measurement was required. These panel-mount indicators were deployed in manufacturing facilities, furnace operations, and equipment requiring continuous temperature supervision. The 0–600°C range supports high-temperature monitoring in kilns, ovens, and thermal processing environments. Compatible with standard C/A (Type K) thermocouples and designed for hardwired AC-powered installation in control panels and machinery enclosures.

Condition: Used
This Wheelco Instruments Division (Barber-Colman) 152 Amplitrol temperature indicator has been inspected and appears to be in good used condition overall. The black painted steel enclosure shows surface wear, scuffing, and minor scratches consistent with age and previous industrial use — visible on the sides and rear of the housing. The front panel and meter face are intact; the arc-scale dial is legible and the glass (or acrylic) cover is present. A hardwired AC power cord is attached, terminating in a 3-prong plug. Please view our photo set for a full look at the current cosmetic condition and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Wheelco Instruments Division (Barber-Colman)
Model:
152
MPN:
S150-421
Secondary Model:
S150-421
Type:
Analog Thermocouple Temperature Indicator / Panel Gauge
SKU:
47629
Temperature Range:
0–600°C
Thermocouple Type:
TC: C/A (visible on dial face)
Display Type:
Analog arc-scale meter movement, illuminated
Scale:
0 to 600 degrees Celsius
Series / Product Line:
Amplitrol
Manufacturer Location:
Rockford, Illinois, USA
Country/Region of Manufacture:
United States
Form Factor:
Panel-mount / Flush-mount enclosure
Enclosure Color:
Black
Power Connection:
AC power cord with 3-prong plug (hardwired)
Rear Connector:
3-pin NEMA-style AC receptacle on rear panel
Condition:
Used – Inspected, pulled from working environment
Seller Notes:
Includes hardwired AC power cord. Vintage Amplitrol panel gauge.
Condition Notes:
Wheelco Barber-Colman 152 Amplitrol 0-600°C temperature gauge in good used condition. Enclosure shows surface wear and scuffing from prior industrial service. Dial face intact and legible. Hardwired AC cord included. Inspected and ready to ship.
View AllClose

Related Products

Related Products

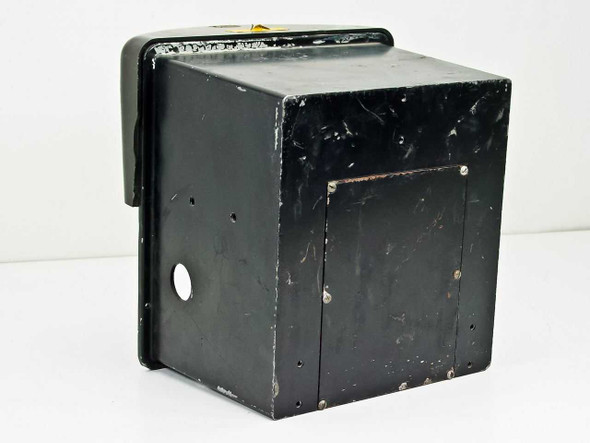

Wheelco Model 402 analog temperature meter front view showing 0–1200°C centigrade scale with red pointer indicator and brass adjustment knob, open bottom compartment with terminal screws visible Wheelco Model 402 temperature meter rear and side view showing black painted metal enclosure with significant scratching and paint wear, rear access panel with two screws
