Description
Western Digital AC26400 6.4GB IDE Hard Drive 3.5" WD Caviar Enhanced IDE

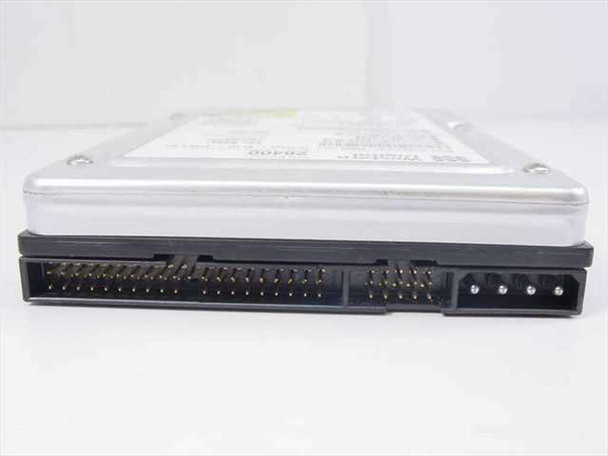

The Western Digital AC26400 is a 6.4GB 3.5-inch Enhanced IDE (EIDE) hard drive from the WD Caviar series. It uses a 40-pin parallel ATA interface and a standard 4-pin Molex power connector, making it compatible with desktop PCs of the mid-to-late 1990s era that support IDE or EIDE storage.
Specifications & What's Included
- Brand: Western Digital
- Series: WD Caviar
- Model: AC26400 (MPN: AC26400-00RTT2)
- Capacity: 6.4 GB
- Interface: Enhanced IDE (EIDE) / Parallel ATA (PATA), 40-pin connector
- Form Factor: 3.5-inch internal hard drive
- Drive Parameters: 13,328 cylinders, 15 heads, 63 sectors per track
- Power: 5VDC @ 0.86A, 12VDC @ 0.24A
- Country of Manufacture: Malaysia

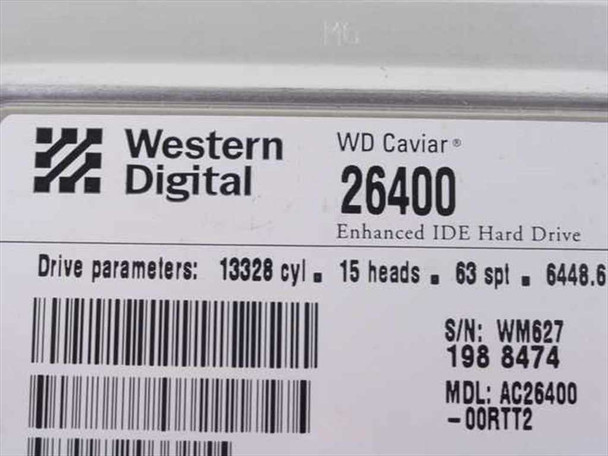

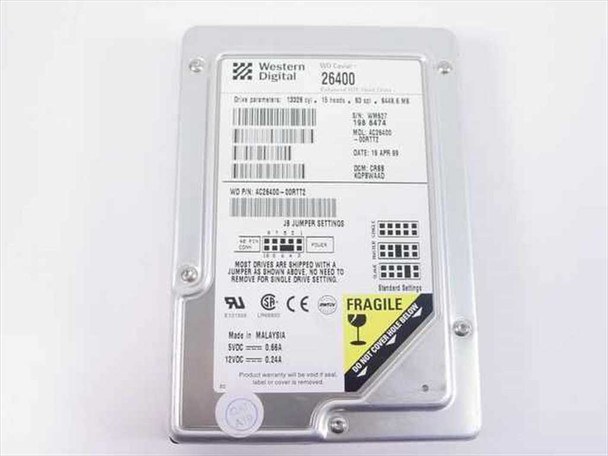

- Jumper settings printed on drive label (Master/Slave/Cable Select)
Applications
The WD Caviar AC26400 was a mainstream desktop hard drive aimed at home and business PCs during the late 1990s, when 6.4GB represented a generous capacity for the time. It connects via the 40-pin IDE/EIDE interface standard on motherboards from that era and is suitable for use as a primary or secondary drive in vintage or retro PC builds, period-correct restorations, and legacy industrial or embedded systems that rely on PATA storage. It is also commonly sought for maintaining older systems — such as late-1990s workstations, early Pentium II/III machines, and industrial PCs — that require a compatible IDE replacement drive. The EIDE standard supported transfer modes up to Ultra DMA/33 on drives of this generation.
This Western Digital AC26400 WD Caviar 6.4GB IDE hard drive has been tested, formatted, and wiped, and is in good working condition. All previous data has been securely erased. The drive shows normal cosmetic wear consistent with prior use — the top label is intact and legible, and the IDE and power connectors appear clean and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Western Digital |
Model: |
AC26400 |
MPN: |
AC26400-00RTT2 |
Type: |
Internal Hard Drive (HDD) |
SKU: |
26318 |
Storage Capacity: |
6.4 GB |
Interface: |
Enhanced IDE (EIDE) / Parallel ATA |
Form Factor: |
3.5" |
Drive Series: |
WD Caviar |
Drive Parameters: |
13328 cylinders, 15 heads, 63 sectors |
Power Requirements: |
5VDC 0.86A, 12VDC 0.24A |
Country/Region of Manufacture: |
Malaysia |
Seller Notes: |
Tested, formatted, and wiped. All previous data securely erased. |
Compatible With: |
Desktop PCs with IDE/EIDE/PATA interface |
Jumper Settings: |
Jumper settings printed on drive label |
Condition Notes: |
This Western Digital AC26400 WD Caviar 6.4GB IDE hard drive has been tested, formatted, and wiped, and is in good working condition. All previous data has been securely erased. |
