Wellfleet

Wellfleet 73000 BCN Backbone Concentrator Node Communications Server 1000W

(No reviews yet) Write a Review
SKU:
14797
MPN:
73000
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
195.00 LBS
Shipping:
Calculated at Checkout

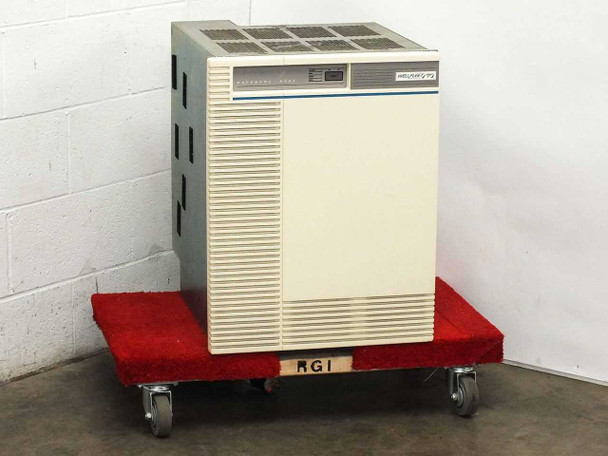

  • Wellfleet 73000 BCN Backbone Concentrator Node – front right view showing ventilated tower chassis on rolling dolly
  • Wellfleet 73000 BCN – rear view showing populated card cage, dual power supply modules, and attached power cable

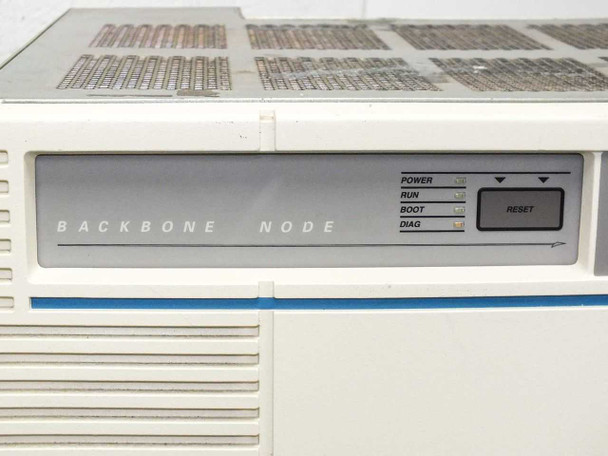

  • Wellfleet 73000 BCN front panel close-up showing POWER, RUN, BOOT, DIAG indicator LEDs and RESET button
  • Zytec Wellfleet AC/PS power supply label showing P/N 22927480 Rev AK, 100-120/200-240V 50/60Hz 1Ph 1000W input, multiple DC output voltages

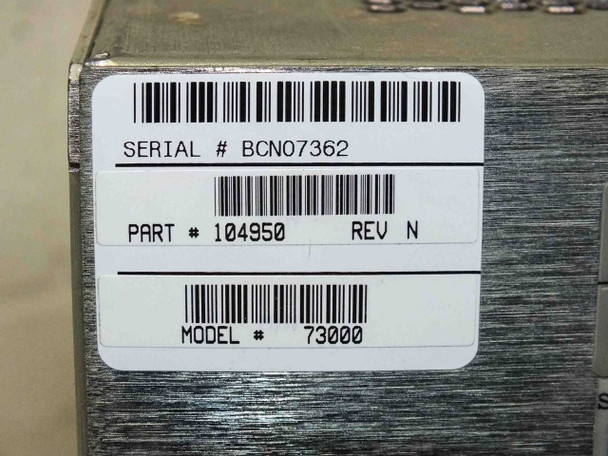

  • Wellfleet 73000 identification label showing Serial Number BCN07362, Part Number 104950 Rev N, Model 73000
  • Wellfleet 73000 BCN chassis front view with door removed, showing 14 populated circuit board slots

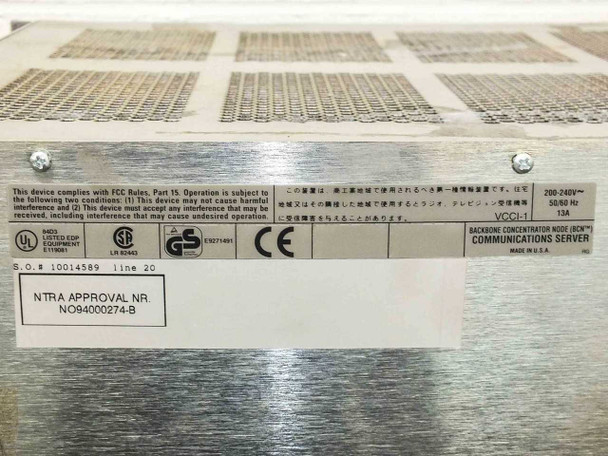

  • Wellfleet 73000 BCN bottom compliance label showing VCCI-1, FCC, UL, CE, GS, TÜV markings and 200-240V 13A rating
  • Wellfleet 73000 BCN rear card cage showing installed modules with DB-25, RJ-45 and other interface connectors across slots 1–14
  • Wellfleet 73000 BCN right-side view showing upper 620W hot-swap power module with POWER ON LED indicator

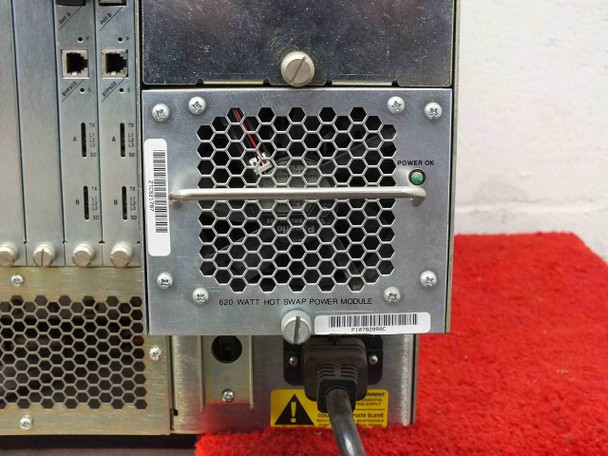

  • Wellfleet 73000 BCN right-side view showing lower 620W hot-swap power module label and attached power cable
  • Wellfleet 73000 BCN hot-swap power module removed, showing multi-pin backplane connector
  • Wellfleet power cable twist-lock plug close-up showing 20A/250V handwritten label

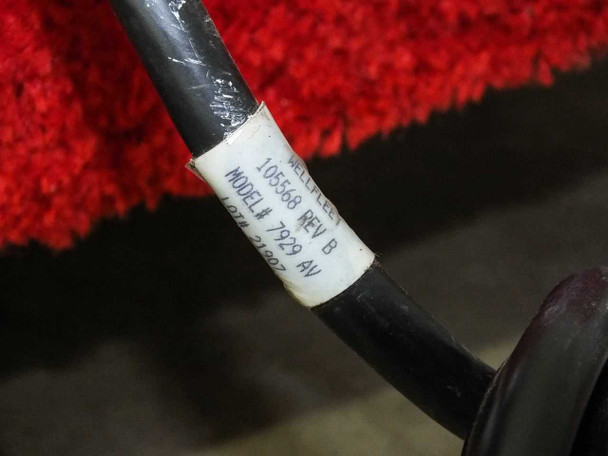

  • Wellfleet power cable strain-relief label showing Part 105568 Rev B, Model 7929 AV
  • Wellfleet 73000 BCN card cage top-down view showing installed module edge connectors and slot numbering 1–14 with SRML label
$700.00
Was: $1,400.00
Current Stock: 1

Sold Out

Description

Wellfleet 73000 BCN Backbone Concentrator Node Communications Server 1000W

Modular router chassis and backbone concentrator node from Wellfleet's BCN platform. This tower-format communications server handled network backbone and concentration functions in enterprise and carrier telecommunications environments.

Specifications & What's Included

  • Model: 73000 BCN (MPN 104950)
  • 14-slot modular chassis for Wellfleet BCN networking modules
  • Dual 620W hot-swap power modules (1000W total)
  • Power requirements: 200-240V AC, 50/60Hz, 13A
  • Front-panel indicators: POWER, RUN, BOOT, DIAG, RESET
  • Installed circuit boards and Wellfleet 20A/250V power cable included
  • Certifications: VCCI-1, FCC Part 15, UL, CE, TÜV, GS

Applications

The Wellfleet BCN platform was deployed in backbone and core networking roles within enterprises and service provider networks during the 1990s-2000s. These chassis supported various Wellfleet line cards for routing, switching, and concentration. The modular architecture allowed configuration for different network topologies and traffic types. Replacement or expansion of installed modules requires compatible Wellfleet BCN circuit boards.

Condition: For Parts or Not Working
This Wellfleet 73000 BCN Backbone Concentrator Node is being sold AS-IS for parts or repair. It has not been tested or powered at our facility and no functionality is guaranteed. The chassis is physically intact with the card cage populated with circuit boards, dual 620W hot-swap power modules installed, and the Wellfleet power cable included. The exterior shows typical wear consistent with prior data center use — light scuffing and some discoloration on the cream-colored front panels. The rear card cage and installed modules appear undamaged and complete as photographed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Wellfleet
Model:
73000
MPN:
104950
Secondary Model:
BCN
Type:
Backbone Concentrator Node / Modular Router Chassis
SKU:
14797
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes installed circuit boards and Wellfleet power cable (20A/250V, Model 7929)
Country/Region of Manufacture:
United States
Form Factor:
Tower / Floor-Standing Chassis
Number of Slots:
14
Power Supply Type:
620W Hot-Swap Power Module (x2)
Power Requirements:
200-240V AC, 50/60Hz, 13A
Standards Compliance:
VCCI-1, FCC Part 15, UL, CE, TÜV, GS
Power Supply Part Number:
Zytec 22927480 Rev AK (1000W AC/PS)
Cust P/N:
107820E Rev E
Power Cable Model:
105568 Rev B / Model 7929 AV
Power Cable Plug:
20A / 250V twist-lock
NTRA Approval:
NO94000274-B
Management Type:
Front-panel POWER / RUN / BOOT / DIAG indicators with RESET
Compatible With:
Wellfleet BCN platform networking modules
Condition Notes:
Wellfleet 73000 BCN Backbone Concentrator Node sold AS-IS for parts or repair. Not tested or powered at our facility; no functionality guaranteed. Chassis intact with boards, dual 620W PSUs, and power cable included. Light cosmetic wear.
View AllClose
