Wearnes CDD-620 6x IDE Internal CD-ROM Drive 5.25" Half-Height Desktop PC
The Wearnes CDD-620 is a 6x-speed internal CD-ROM drive using the IDE (ATAPI) interface, housed in a standard 5.25" half-height form factor for desktop PC installation. It connects via a 40-pin IDE ribbon cable and a standard 4-pin Molex power connector, and supports Master/Slave jumper configuration to share an IDE channel with a second drive.
Specifications & What's Included
- Model: Wearnes CDD-620
- Interface: IDE / ATAPI (40-pin)
- Read Speed: 6x
- Form Factor: 5.25" half-height internal

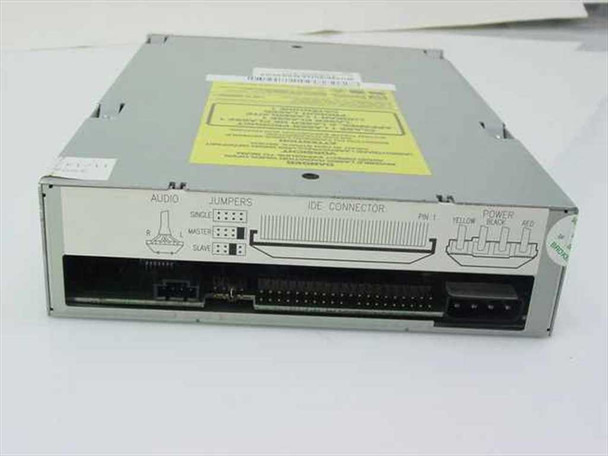

- Jumper Configuration: Master / Slave selectable (jumper block on rear)
- Power Connector: 4-pin Molex (standard desktop)

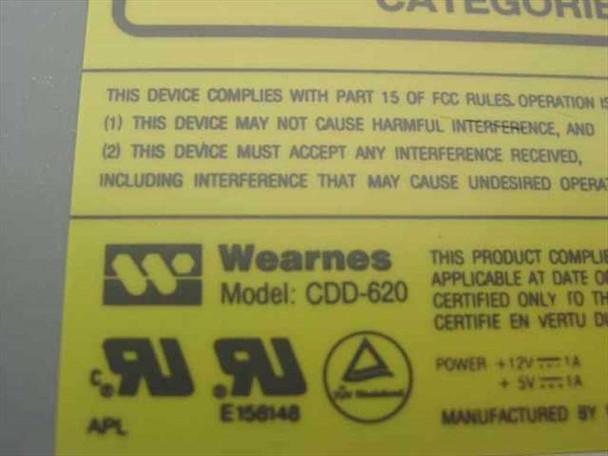

- Power Requirements: +12V 1A, +5V 1A (per label)
- Audio: Front-panel headphone jack with volume wheel; rear analog audio connector
- Certifications: FCC Part 15, UL, cUL
- Includes: Drive only — no IDE cable, no mounting screws, no audio cable
Applications
6x IDE CD-ROM drives like the CDD-620 were standard equipment in mid-1990s desktop PCs, spanning the era when CD-ROM became the dominant software distribution and multimedia format. They are compatible with DOS, Windows 3.x, Windows 95, and Windows 98 systems, making them a direct replacement for failed optical drives in period-correct vintage PC builds and retro computing projects. The ATAPI/IDE interface was universal across that generation of desktops, so the CDD-620 drops into any system with an available 5.25" bay and an open IDE channel. Collectors and restorers maintaining IBM-compatible systems from the 1994–1998 timeframe often seek these drives as like-for-like replacements.
This Wearnes CDD-620 6x IDE internal CD-ROM drive is in good used condition. It was pulled from a working environment where it was previously in use. The bezel and housing show light surface wear consistent with normal use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Wearnes |
Model: |
CDD-620 |
MPN: |
CDD-620 |
Type: |
Internal CD-ROM Drive |
SKU: |
19716 |
Interface: |
IDE / ATAPI |
Read Speed: |
6x |
Form Factor: |
5.25" Half-Height |
Drive Bay: |
5.25" Internal |
Jumper Configuration: |
Master / Slave selectable |
Power Connector: |
4-pin Molex (standard desktop power) |
Power Requirements: |
+12V 1A, +5V 1A |
Audio Output: |
Front headphone jack; rear analog audio connector |
Compatible With: |
IDE/ATAPI-equipped desktop PCs, Windows 9x/DOS era |
Certifications: |
FCC Part 15, UL, cUL |
Country/Region of Manufacture: |
Malaysia |
Seller Notes: |
Drive only — no cables or mounting hardware included. |
Condition Notes: |
This Wearnes CDD-620 6x IDE internal CD-ROM drive is in good used condition. Pulled from a working environment. Light surface wear on bezel. Please contact us with any questions. |
