Description

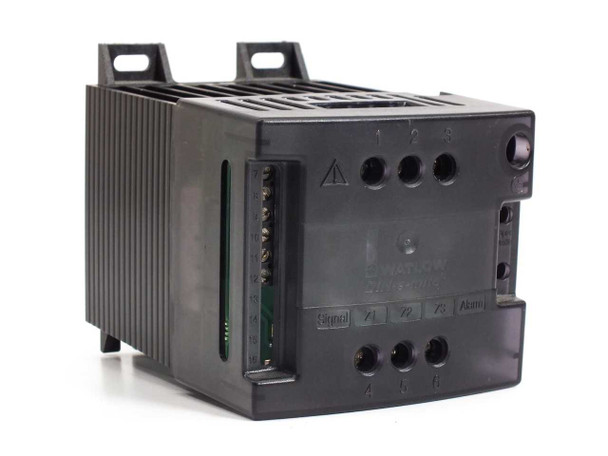

Watlow DB90-24C0-0000 DIN-a-mite 3-Phase SSR Power Controller 15A 100-240V
This is a solid-state relay (SSR) power controller designed for three-phase industrial applications. It regulates power delivery in heating, motor control, and process automation systems via DIN rail mounting.
Specifications & What's Included
- Model: DB90-24C0-0000 (DIN-a-mite DB90 series)
- Type: 3-Phase Solid-State Power Controller
- Voltage: 100–240V AC, 50/60 Hz
- Current Rating: 15A @ 50°C
- SCCR: 200kA (Type 1 & 2)
- Mounting: DIN Rail
- Terminal Torque: 12 in-lb (line), 4.4 in-lb (control)
- Certifications: UL Listed (E246T), CE
- Unit only; no accessories included
Applications
The DB90 series is used in industrial process control, heating element management, and machinery power distribution. These controllers are common in manufacturing environments, thermal systems, and OEM equipment where three-phase solid-state switching is required. They interface with PLCs, temperature controllers, and other industrial automation devices.
Condition: Used
This Watlow DB90-24C0-0000 DIN-a-mite solid-state power controller has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The unit shows normal surface wear consistent with industrial service. The heatsink fins, terminal blocks, and DIN rail clip all appear intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Watlow DB90-24C0-0000 DIN-a-mite solid-state power controller has been inspected and is in good used condition. It was pulled from a working environment where it was in use and functional. The unit shows normal surface wear consistent with industrial service. The heatsink fins, terminal blocks, and DIN rail clip all appear intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Watlow |
Model: |
DB90-24C0-0000 |
MPN: |
DB90-24C0-0000 |
Type: |
Solid-State Power Controller (SSR) |
SKU: |
49508 |
Series: |
DIN-a-mite DB90 |
Phase: |
Three Phase |
Voltage Rating: |
100 - 240V AC, 50/60 Hz |
Current Rating: |
15 Amps @ 50°C |
SCCR Rating: |
200kA, Type 1 & 2 |
Frequency: |
50/60 Hz |
Enclosure / Mounting: |
DIN Rail Mount |
Terminal Torque (Line): |
12 in-lb (1.4 Nm) |
Terminal Torque (Control): |
4.4 in-lb (0.5 Nm) |
Wire Gauge: |
65°C or 75°C Copper Conductor Only |
Certifications: |
UL Listed (File E246T), CE |
Country/Region of Manufacture: |
United States |
Form Factor: |
DIN Rail |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; no accessories included. |
Date Code: |
0914 |
Condition Notes: |
Watlow DB90-24C0-0000 DIN-a-mite 3-phase SSR power controller. Inspected, in good used condition. Pulled from a working environment where it was in use and functional. Normal wear from industrial service. |
