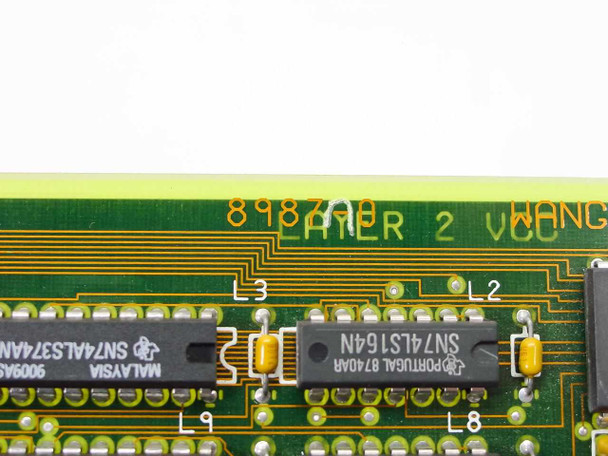

The Wang 8987-0 is a 16-bit ISA expansion card designed to interface Ricoh-manufactured document scanners with Wang workstations and PC-compatible systems. The card translates commands and data between the host ISA bus and the scanner's parallel interface, enabling controlled document acquisition within Wang's scanning software environment. PCB silk-screen markings read "8987AB LAYER 2 WANG," confirming this is a genuine Wang-manufactured board.

Specifications & What's Included

• Model / Part Number: Wang 8987-0 (PCB marked 8987AB)
• Bus Interface: 16-bit ISA (Industry Standard Architecture)
• External Connector: DB25 (25-pin D-sub) on rear bracket

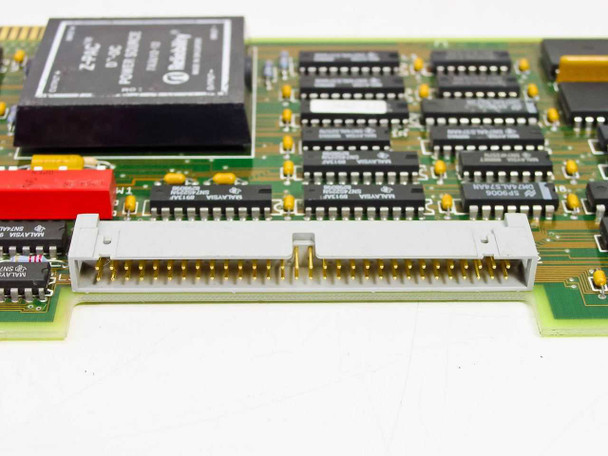

• Internal Connector: 50-pin header (visible on board surface)

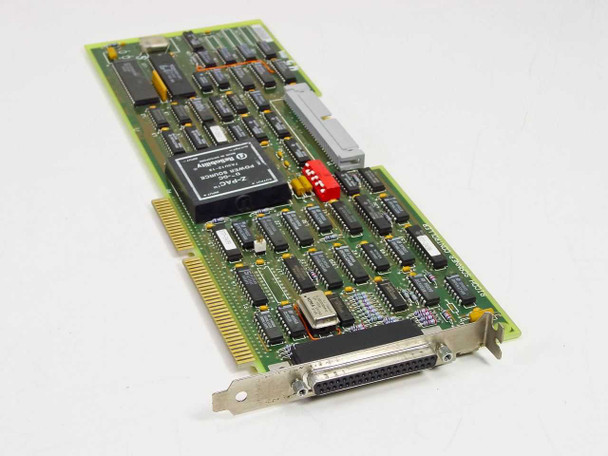

• Controller IC: Z-PAC / Zilog EPAC (large black IC, center of board)
• Logic ICs: Multiple TI SN74ALS-series and DM74ALS-series chips (SN74ALS374AN, SN74ALS86N, SN74ALS135N, SN74S225N, SN74ALS520, DM74ALS02N, DM74ALS74AN, DM74ALS244, SN74LS164N, and others)

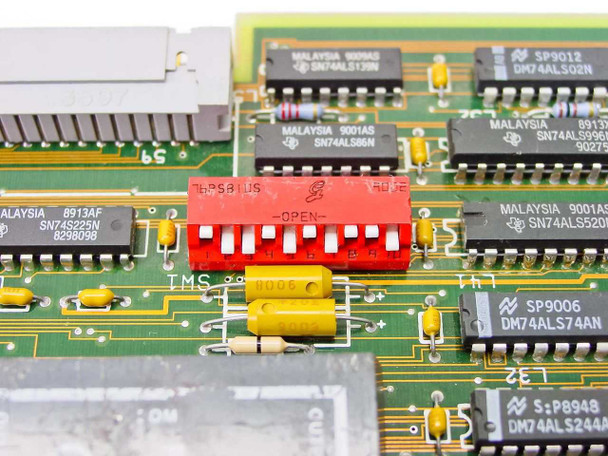

• Configuration: Red DIP switch bank (labeled TMS, OPEN) for hardware address/IRQ selection
• PCB Origin: Malaysia (per date codes and country markings)
• Form Factor: Full-length ISA expansion card
• Included: Card only — no cables or accessories
