Wago 787-612 Switched Mode Power Supply 24VDC 2.5A 60W 100-240VAC DIN Rail
The Wago 787-612 is a single-output switched-mode power supply designed for DIN-rail mounting in industrial control panels and automation systems. It accepts a universal AC input (100–240V) and delivers a regulated 24 VDC output at up to 2.5A (60W), with a front-panel trimmer for fine output voltage adjustment. Connection is made via WAGO's pluggable spring-cage terminal blocks, which allow tool-free wiring and easy replacement without disturbing field wiring.
Specifications & What's Included
- Model: Wago 787-612
- Type: Switched-Mode DIN Rail Power Supply
- Input Voltage: 100–240 VAC (universal)
- Input Current: 0.6 A
- Input Frequency: 50–60 Hz
- Output Voltage: 24 VDC
- Output Current: 2.5 A
- Output Power: 60 W
- Output Adjustment: ADJ trimmer on front panel for fine voltage adjustment
- Indicators: DC OK green LED; ADJ amber LED

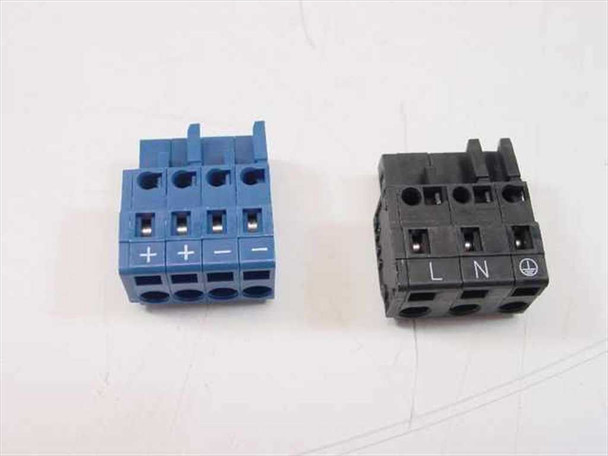

- Input Connector: Black 3-terminal pluggable spring-cage block (L, N, GND)
- Output Connector: Blue 4-terminal pluggable spring-cage block (+, +, −, −)
- Mounting: 35mm DIN rail
- Certifications: CE, UL
- Includes: Blue output connector block, black input connector block, WAGO instruction sheet
Applications
The WAGO 787 series switched-mode power supplies are standard components in industrial control panels, PLC enclosures, building automation systems, and factory automation equipment. The 24 VDC output is the dominant control-voltage standard in industrial automation, powering PLCs, I/O modules, sensors, relays, and field devices. DIN-rail mounting makes these units a drop-in fit for standard IEC/EN 60715 mounting rails used in virtually all industrial enclosures. The pluggable WAGO spring-cage connector blocks are a hallmark of WAGO's system — they allow field wiring to be pre-terminated and the power supply body to be swapped out quickly without rewiring, which is a key advantage in maintenance-intensive applications. Units like the 787-612 are used across process control, machine automation, building management systems, and general-purpose industrial power distribution.
This Wago 787-612 Switched-Mode DIN Rail Power Supply has not been powered up or tested at our facility, but it came out of a working industrial environment where it was previously in use. The unit is in good cosmetic condition with light surface wear typical of used industrial equipment. Both the blue output connector block and the black input connector block are included, along with the original WAGO instruction sheet. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Wago |
Model: |
787-612 |
MPN: |
787-612 |
Type: |
Switched-Mode DIN Rail Power Supply |
SKU: |
32160 |
Output Voltage: |
24 VDC |
Output Current: |
2.5 A |
Output Power: |
60 W |
Input Voltage: |
100–240 VAC |
Input Current: |
0.6 A |
Input Frequency: |
50–60 Hz |
Number of Outputs: |
1 |
Mounting: |
DIN Rail |
Connector Type: |
Pluggable spring-cage terminal blocks |
Adjustable Output: |
Yes (ADJ trimmer) |
Indicators: |
DC OK (green LED), ADJ (amber LED) |
Certifications: |
CE, UL |
Form Factor: |
DIN Rail Module |
Seller Notes: |
Includes blue output connector block, black input connector block, and WAGO instruction sheet. |
Country/Region of Manufacture: |
Germany |
Condition Notes: |
Wago 787-612 Switched-Mode Power Supply pulled from a working environment. Not tested at our facility. Good cosmetic condition with light wear. Includes both connector blocks and instruction sheet. |
