Wafer Bonder Assembly Lever Component 635177-XD Semiconductor Tool

(No reviews yet) Write a Review
SKU:
26998
MPN:
Lever Component
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

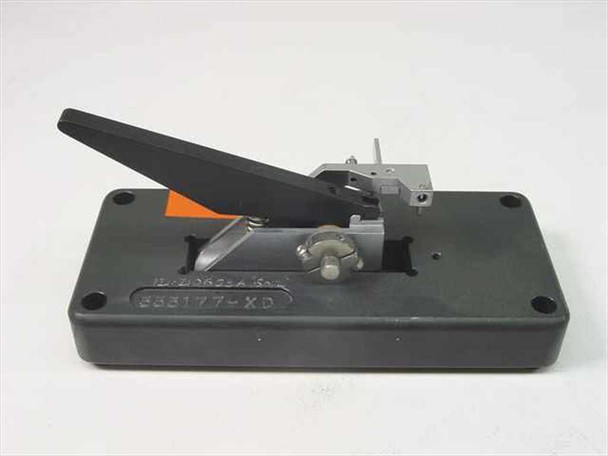

  • Wafer bonder assembly lever component 635177-XD – left side view showing black base and raised lever arm with orange label
  • Wafer bonder assembly lever component 635177-XD – right side view showing spring-loaded pivot mechanism and clamp hardware
  • Close-up of wafer bonder lever clamp mechanism showing machined aluminum clamp block, pivot pin, and adjustment screw
  • Close-up of wafer bonder lever pivot assembly showing spring, clamp bracket, and mounting hardware detail
$100.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Wafer Bonder Assembly Lever Component 635177-XD Semiconductor Tool

Lever component for wafer bonding equipment used in semiconductor fabrication. This machined metal assembly operates as part of the clamping mechanism in wafer bonder systems.

Specifications & What's Included

  • Model: 635177-XD
  • Material: Aluminum / Machined Metal
  • Type: Wafer Bonder Assembly Lever Component
  • Form Factor: Bench-top fixture component
  • Condition: Used – Inspected and Tested
  • Includes: Lever component only; no additional accessories

Applications

Used in wafer bonding equipment for semiconductor fabrication processes. The lever assembly engages the clamp mechanism to apply consistent pressure during wafer bonding operations. Compatible with wafer bonder assembly systems requiring this specific component configuration.

Condition: Used
This wafer bonder assembly lever component (part 635177-XD) has been inspected and is in good used condition. The machined aluminum clamp mechanism, lever arm, pivot hardware, and spring are all present and intact. The black base shows minor surface scuffing consistent with normal handling in a semiconductor fab environment. No cracks, broken parts, or missing hardware are observed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
635177-XD
MPN:
635177-XD
Type:
Wafer Bonder Assembly Lever Component
SKU:
26998
Condition:
Used – Inspected and Tested
Application / Use Case:
Wafer Bonding Equipment, Semiconductor Fabrication
Compatible With:
Wafer Bonder Assembly
Material:
Aluminum / Machined Metal
Form Factor:
Bench-top fixture component
Seller Notes:
Lever component only; no additional accessories included.
Condition Notes:
Wafer bonder assembly lever component 635177-XD. Inspected and in good used condition. Lever arm, clamp mechanism, spring, and pivot hardware all present and intact. Minor surface scuffing only.
View AllClose

Related Products

Related Products

Applied Magnetics Wafer Block Carton Carrier – front three-quarter view showing aluminum wire frame base, angled support arms, and black rubber-grip handle bar Applied Magnetics Wafer Block Carton Carrier – rear three-quarter view showing stepped aluminum wire tray and black rubber handle bar detail
Add to Cart
Quick view

Applied Magnetics Wafer Block Carton Carrier Semiconductor Wafer Handling Tool

Applied Magnetics

$45.00
Was: $90.00
Applied Magnetics Wafer Block Carton Carrier Semiconductor Wafer Handling ToolThe Applied Magnetics Wafer Block Carton Carrier is a dedicated semiconductor handling fixture designed to transport and...
26893
SKU:
26893
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Brand:
Applied Magnetics
Model:
Wafer Block Carton Carrier
Type:
Wafer Block Carton Carrier
SKU:
26893
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Sold as shown. No additional accessories included.
Application:
Semiconductor wafer handling, transport, and storage
Material:
Aluminum frame with rubber-grip handle bar
Form Factor:
Benchtop / Portable
Compatible With:
Semiconductor wafer processing and clean room environments
Condition Notes:
This Applied Magnetics Wafer Block Carton Carrier has been inspected and is in good used condition. Aluminum frame and wire tray are intact; rubber handle shows minor wear. Please contact us with any questions.

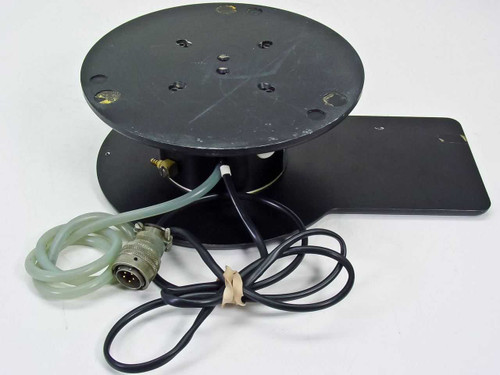

Harris/Farinon 1107 heated wafer chuck — front 3/4 view showing 2.25-inch circular vacuum plate, rectangular tray extension, black body, multi-pin mil-spec connector, and clear pneumatic tubing Harris/Farinon 1107 heated wafer chuck — top/rear view showing underside of 2.25-inch vacuum plate with mounting screw holes, brass side fitting, and pneumatic tubing loop
