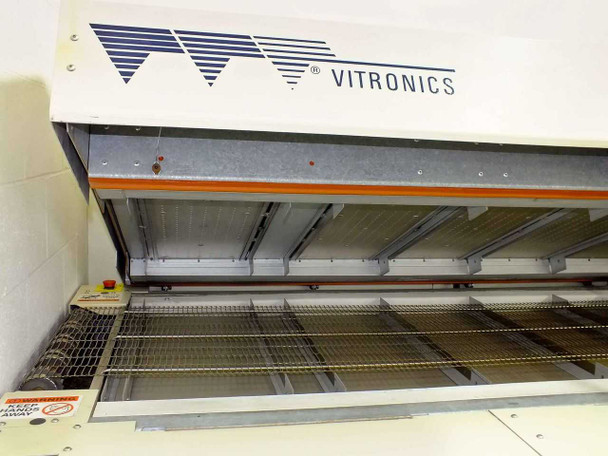

The Vitronics ISO5006 is a floor-standing convection solder reflow oven designed for the surface-mount technology (SMT) assembly of printed circuit boards (PCBs). It uses a continuously moving wire mesh conveyor belt to carry PCB assemblies through a series of precisely controlled heating zones, melting solder paste to form reliable solder joints, then cooling the boards as they exit. This unit is rated for 208V three-phase power at 65A and supports nitrogen atmosphere processing via its integrated five-zone flow meter bank — a feature used to reduce oxidation and improve solder joint quality on high-reliability assemblies.

Specifications & What's Included

• Manufacturer: Vitronics
• Model: ISO5006

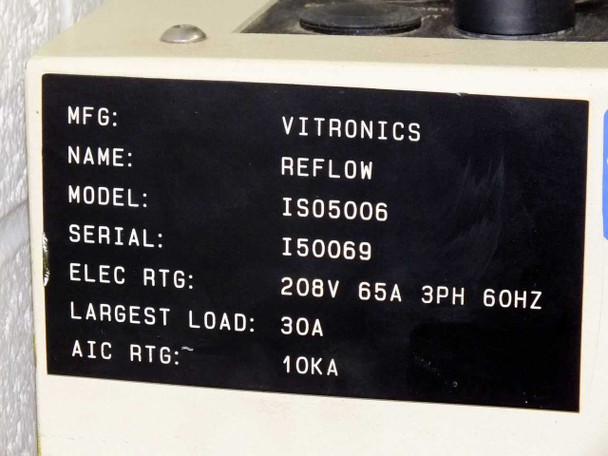

• Serial Number: I50069 (visible on rating plate)
• Electrical Rating: 208V, 3-Phase, 60Hz, 65A
• Largest Load: 30A
• AIC Rating: 10KA
• Maximum Temperature: 350°C

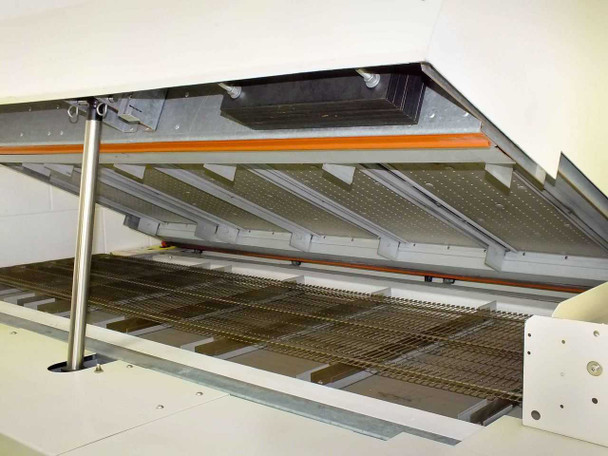

• Belt Width: 20 inches — wire mesh conveyor belt
• Heating Zones: 5 zones (as indicated by 5-zone nitrogen flow meter bank)

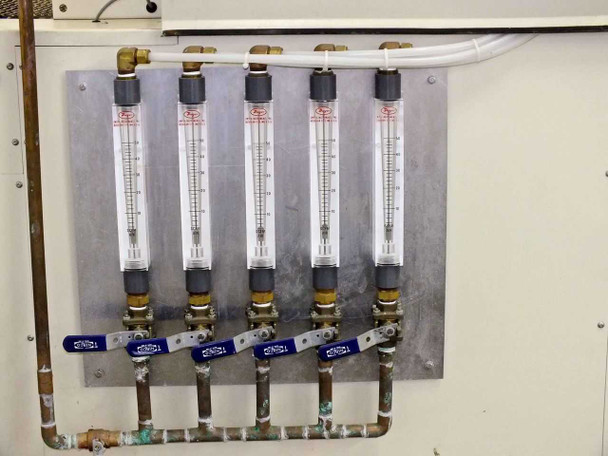

• Nitrogen Capability: Yes — 5 individual Dwyer-style flow meters with blue shutoff valves on side-mounted stainless panel

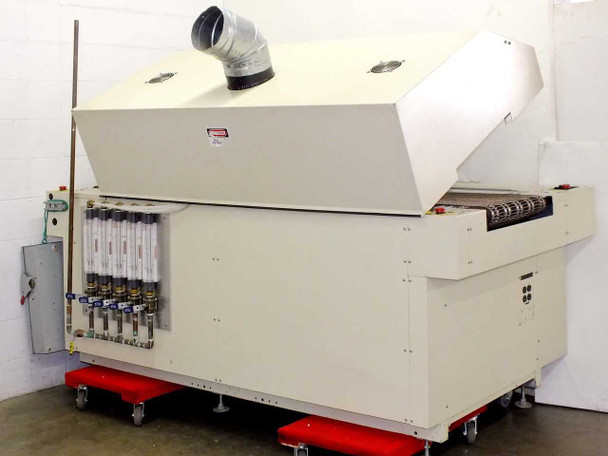

• Exhaust: Top-mounted exhaust duct connection (flexible duct visible in photos)
• Cooling Section: Three cooling fans at exit end visible on conveyor exit

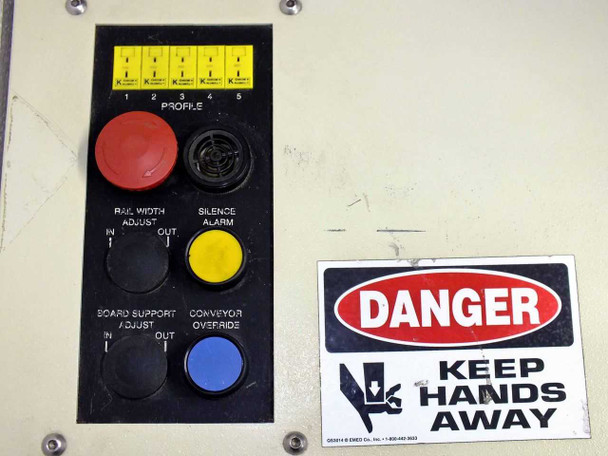

• Control Panel: 5-profile selector switches, E-stop, alarm silence, rail width adjust (in/out), board support adjust (in/out), conveyor override — plus separate panel with Power On, Hood Engage (down/up), Alarm Condition indicator
• Auxiliary Power: 4x 110 VAC standard outlets on side panel
• Overall Dimensions: 93" L x 60" W x 75" H

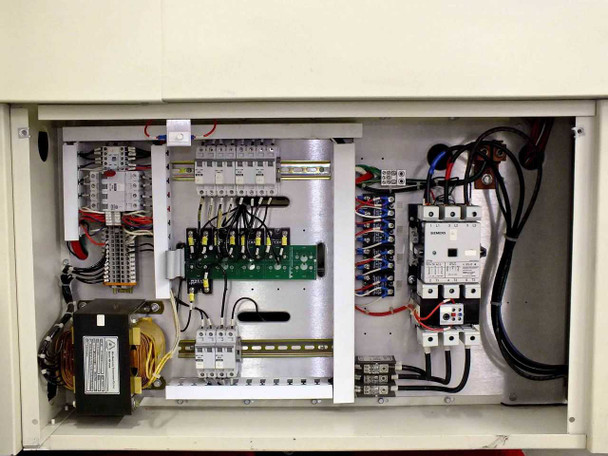

• Electrical Enclosures: Two access panels — one with circuit breakers, control board, transformer, and main contactor; second with larger relay/control board assembly and terminal strips
• Mobility: Floor-mounted on heavy-duty red casters
• Not Included: Computer controller and control software required for automated profile operation

Applications

Convection solder reflow ovens are the standard production tool for SMT PCB assembly. Boards loaded with solder-paste-printed pads and placed components are fed into the entrance rail, carried through preheat, soak, reflow, and cooling zones on the conveyor belt, and exit with completed solder joints. The ISO5006's 20-inch belt width accommodates standard and large-format PCB panels, making it suited to medium-to-high volume production environments. Nitrogen-capable ovens like this one are used wherever low-void, low-oxidation joints are required — including automotive electronics, military and aerospace PCB assembly, and high-reliability consumer electronics manufacturing. Vitronics (later Vitronics Soltec, now part of the ITW Electronics Assembly Equipment group) was a leading manufacturer of reflow and wave solder equipment from the 1980s through the 2000s; the ISO series dates from the late 1990s to early 2000s era of forced-convection reflow technology. These machines remain in demand for contract electronics manufacturers (CEMs) and in-house PCB shops that need a proven, robust conveyor reflow platform.
