Tektronix RM 529 Waveform Monitor Rackmount For Parts Vintage Discrete CRT

Tektronix RM 529 Waveform Monitor Rackmount For Parts Vintage Discrete CRT

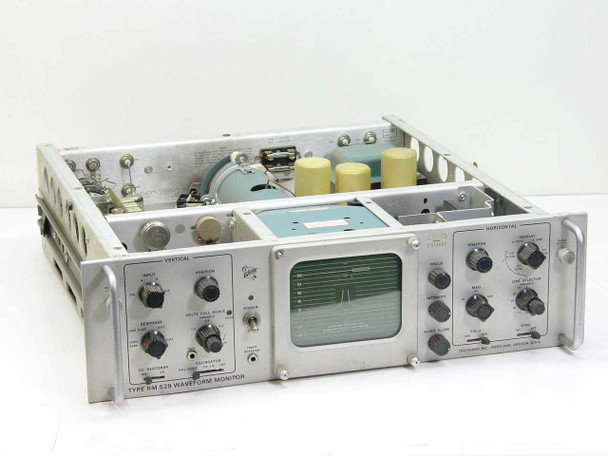

The Tektronix RM 529 is a rackmount analog waveform monitor designed for broadcast video engineering applications. Built during the transition era from vacuum tubes to transistors, it uses entirely discrete components — resistors, capacitors, transformers, and a mix of tubes and transistors throughout — with no integrated circuits. The unit powers on but blows the internal 0.3A fuse upon power-up and produces no display; it is being sold as-is for parts or repair.

Specifications & What's Included

• Model: Tektronix Type RM 529 Waveform Monitor
• Form factor: Rackmount chassis
• Display: CRT with green graticule filter; IRE scale (–40 to +100), 0.125 µs T pulse response window overlay
• Power: Configured for 115V AC, 115V ±10%, 50–60 Hz
• Fuse data: 115V — 1.25A Slow; 230V — 0.6A Slow
• Vertical section: Input A, B, A-B; Response — Low Pass, IEEE, High Pass, Flat
• Volts Full Scale: Variable 0.2 / 0.5 / 1.0 V with Calib positions
• DC Restorer: Off / On
• Calibrator: Full Scale, 0.714 F.S., Ext
• Horizontal section: Display — 2 Field / 2 Line; Mag — ×1, ×5, ×25
• Field selector: One / Two
• Line Selector: Variable, lines 16–21
• Sync: Internal / External
• Front panel controls: Focus, Intensity, Scale Illumination, Position, Trace Rotation, Power switch
• Rear video inputs: A and B (BNC pairs), Ext Neg Sync Input (BNC)
• Rear video output: BNC
• Rear aux connector: J501 multi-pin circular connector
• Rear Ext Cal Input: BNC
• Construction: All-discrete; mixed vacuum tube (includes 6DJ8 dual triode, V554) and transistor circuitry; point-to-point wiring on component boards
• Manufactured by: Tektronix, Inc., Portland, Oregon, U.S.A.
• Includes: Unit with power cord. No manual or accessories.
• Condition: For Parts or Not Working — powers on, blows 0.3A fuse, no display

Applications

The Tektronix RM 529 was designed for broadcast television engineering, used in video production facilities and TV stations to monitor video signal levels, check sync pulse timing, and verify compliance with NTSC broadcast standards. Waveform monitors of this type were standard equipment in master control, editing suites, and camera-chain setups from the 1950s through the 1970s. The RM 529 dates from the late 1950s to early 1960s — an era when Tektronix was defining the broadcast test equipment market and instruments were hand-wired using discrete components rather than ICs. Units like this are no longer used in active broadcast service, but they remain of strong interest to vintage electronics hobbyists, restorers, and collectors drawn to point-to-point wiring and mixed tube/transistor designs. The dense, well-organized discrete component boards also make it a useful parts source for restorers working on other Tektronix equipment of the same era.
