Villa Precision GS-210 Automatic Glass Scriber Single Head w/ PC-610 Computer & GS Software

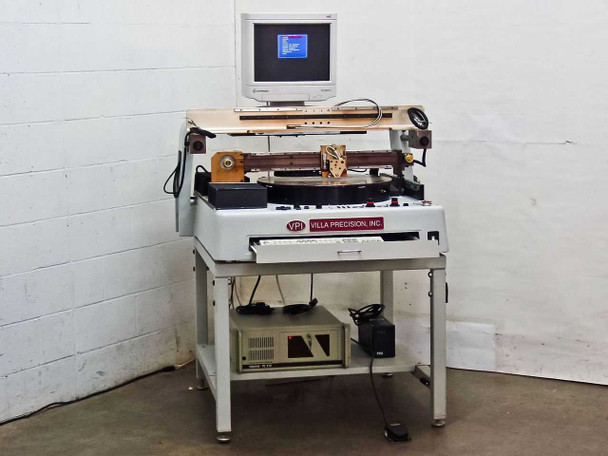

The Villa Precision GS-210 is an automatic single-head glass scribing system manufactured by Villa Precision, Inc. of Phoenix, Arizona. It is designed to score glass substrates and semiconductor wafers in precise linear patterns using a diamond or carbide scribe tip mounted on a computer-controlled linear axis over a motorized rotating vacuum chuck stage. The system is driven by an integrated Industrial PC-610 PC-bus computer running Villa Precision's proprietary GS scribing software, enabling programmed automatic scribing runs as well as manual and single-step modes.

Specifications & What's Included

• Manufacturer: Villa Precision, Inc. — Phoenix, Arizona USA
• Model: GS-210

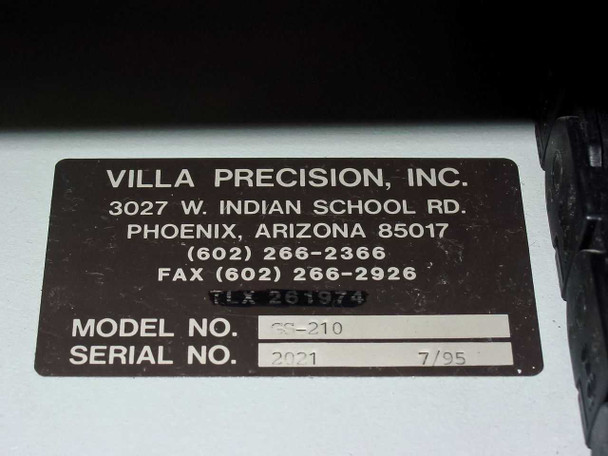

• Serial No.: 2021, dated July 1995
• Configuration: Single-head automatic scribing system

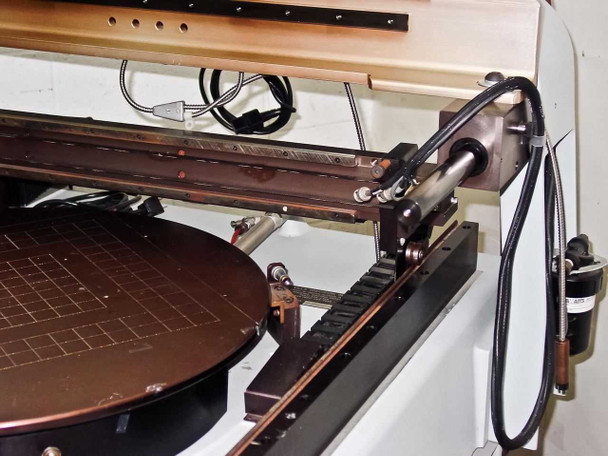

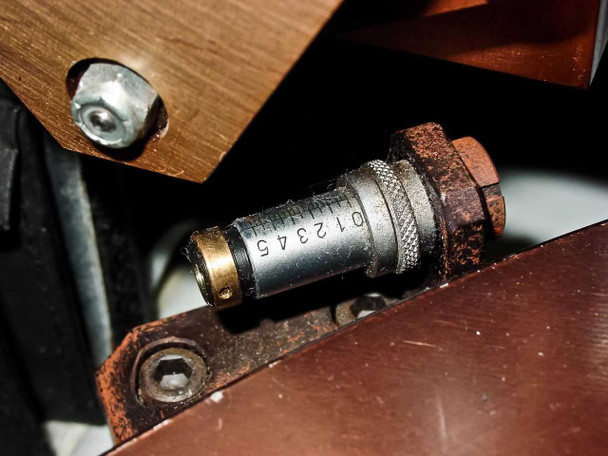

• Scribing head: Single head with spring-loaded diamond/carbide scribe tip; fine depth adjustment with micrometer-style scale

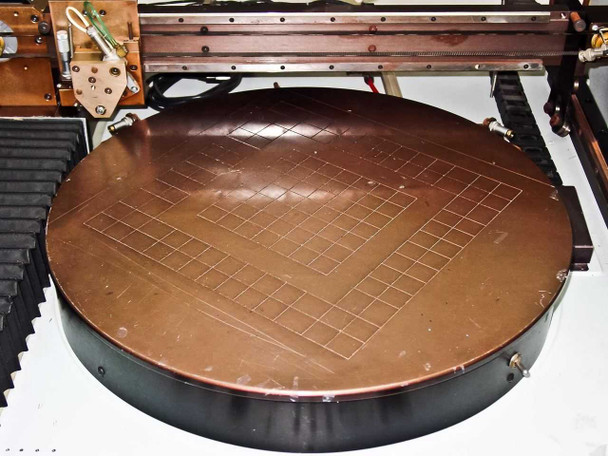

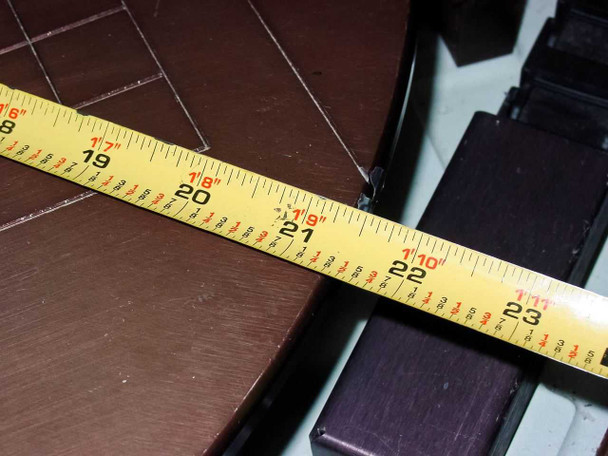

• Stage: Large circular rotating vacuum chuck stage (approx. 20-inch diameter as measured in photos)

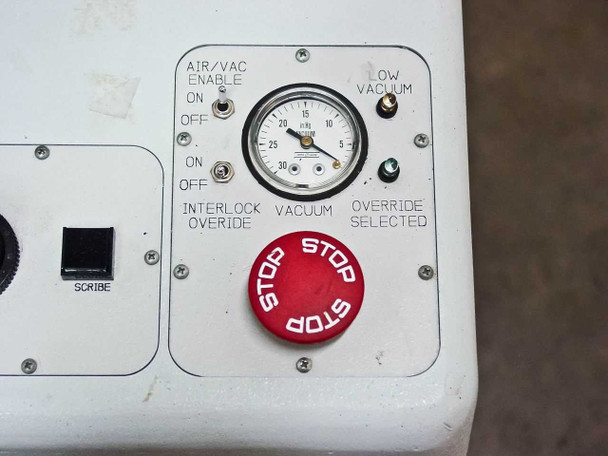

• Vacuum system: Air/vacuum chuck with enable/disable switch, vacuum gauge, interlock, override, and low-vacuum alarm indicator
• Pressure controls: Dual pneumatic pressure circuits — Pressure 1 and Pressure 2 gauges with individual adjustment knobs

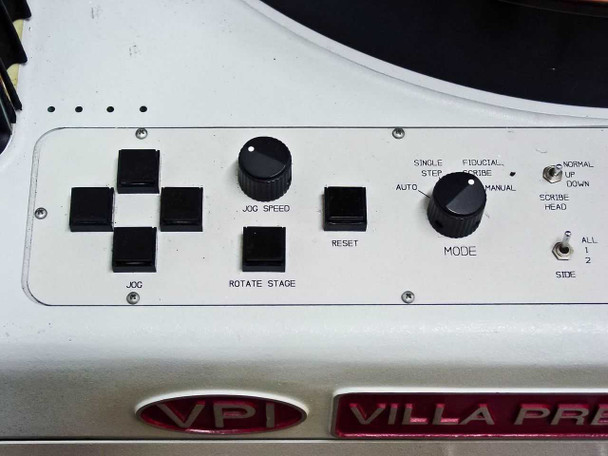

• Operating modes: Auto, Single Step, Fiducial Side, Manual (mode selector on front panel)
• Scribe head position control: Normal / Up / Down / All / Side selector switches
• Jog controls: 4-way jog pad with variable jog speed knob
• Additional front panel controls: Rotate Stage, Reset, and Scribe buttons; Ready / Program Active / Manual status indicators
• Emergency stop: Large red STOP button on operator panel

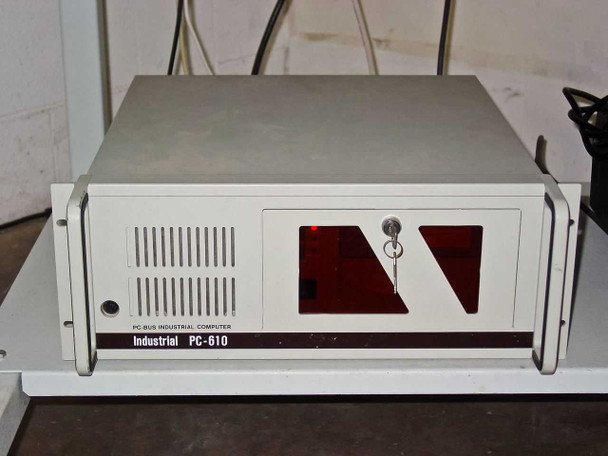

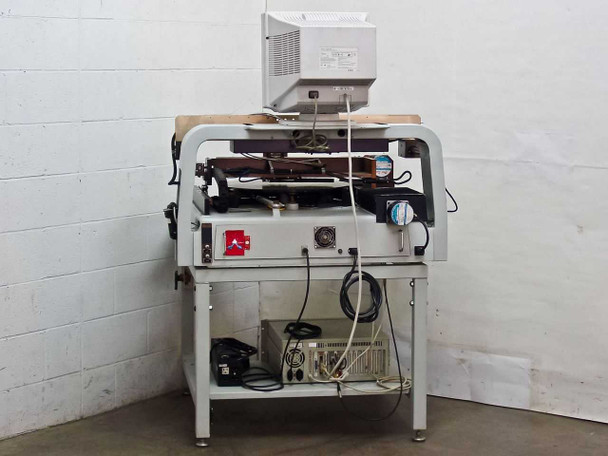

• Control computer: Industrial PC-610 (PC-Bus Industrial Computer) — 4U rackmount style, seated on lower shelf of integrated stand

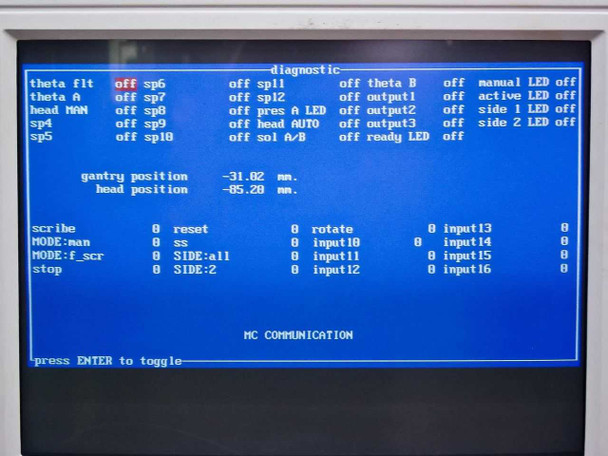

• Software: GS scribing software installed on the included PC-610 computer

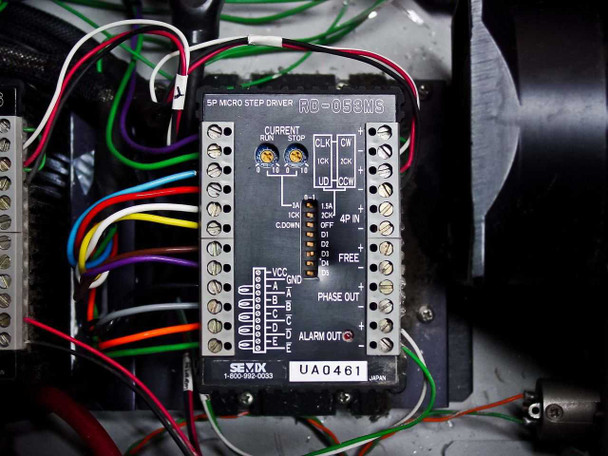

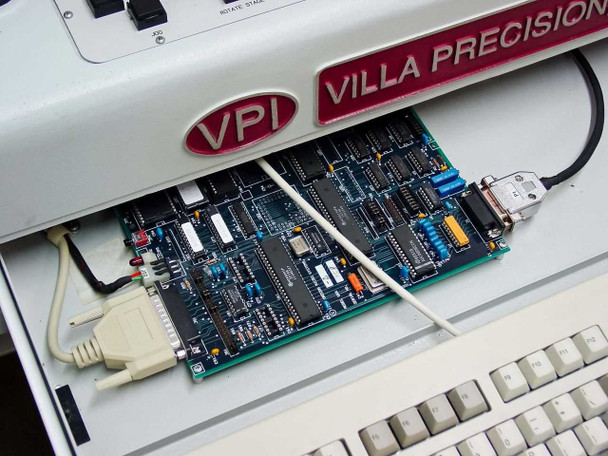

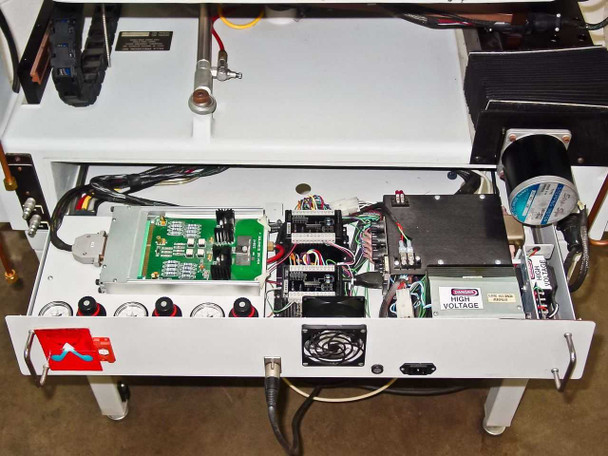

• Controller PCBs: Proprietary VPI motion/control circuit boards (stored in front drawer)
• Keyboard: Full-size PC keyboard (stored in front drawer)
• Floppy disk: Included in drawer
• Foot pedal: Linemaster Clipper Cat. No. 632-S foot switch — 20A 125V / 250VAC, 1HP 125V / 250VAC, UL Listed 690B, CSA

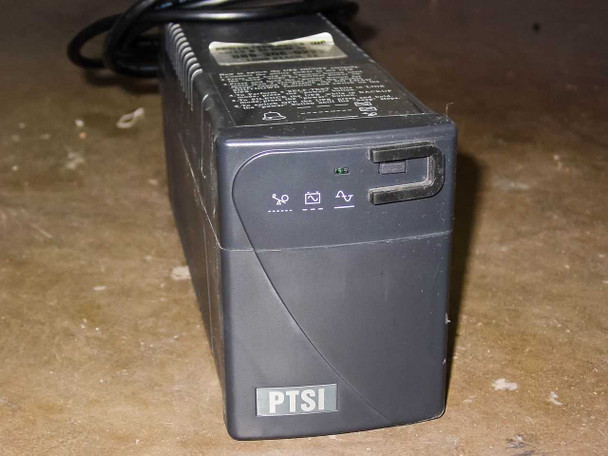

• UPS / power conditioner: PTSI UPS unit included (rear panel: DB-9, RJ connectors, multiple AC output receptacles)
• Machine stand: Open-frame steel stand with lower shelf; integrated into system
• Note: Surface rust visible on some scribing head area hardware components (see photos)

Applications

Automatic glass scribing systems like the Villa Precision GS-210 are used primarily in the manufacture of flat-panel displays, solar cells, and semiconductor substrates, where precise, repeatable score lines are required across glass or crystalline wafers before cleaving or dicing. The scribing process creates controlled fracture initiation lines that allow substrates to be broken cleanly along defined paths with minimal material loss and edge damage. The GS-210's rotating stage allows the substrate to be repositioned angularly between scribing passes, enabling both X-axis and cross-hatch scribe patterns as visible on the glass in the photos. Systems of this type were widely used in LCD and plasma display panel fabrication lines during the 1990s and early 2000s, as well as in photovoltaic cell manufacturing and research-grade semiconductor processing. The computer-controlled automatic mode allows recipe-driven scribing programs to be run with consistent depth and pressure across the substrate, while manual and single-step modes support setup, alignment, and development work. The GS-210 dates from mid-1995 based on its serial plate.
