View Engineering 633594-002 SCSI Controller Card PBA Vision System Board

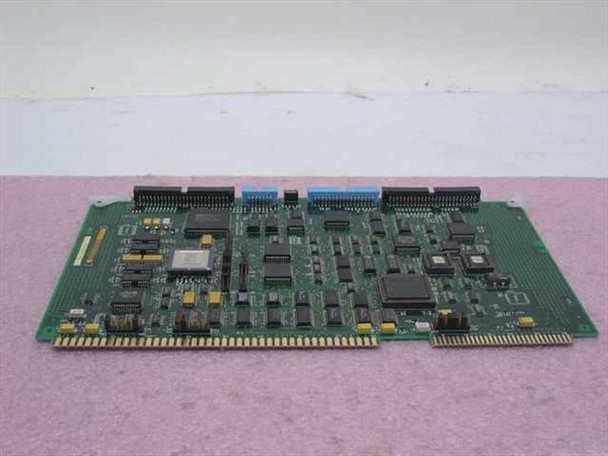

The View Engineering 633594-002 is a SCSI controller card (printed board assembly, PBA) designed for use in View Engineering automated vision inspection systems. This multi-layer PCB carries a dense array of logic ICs, SCSI interface circuitry, and multiple ribbon cable headers that interface with cameras, lighting controllers, and other subsystems within a View Engineering machine vision platform. The board installs into a dedicated card slot (Slot 10) within the vision system chassis.
Specifications & What's Included
- Manufacturer: View Engineering
- Part / Assembly Number: PBA 633594-002
- Board Type: SCSI Controller Card (Printed Board Assembly)
- Interface: SCSI
- Chassis Slot: Slot 10
- Form Factor: PCB / Card Module
- Multiple ribbon cable / IDC connectors visible on top side (camera and subsystem I/O)
- Blue daughter-board or flex-cable headers present
- Dense population of logic and control ICs across the board
- Edge connector for backplane installation
- What's included: Controller card only
Applications
View Engineering was a prominent manufacturer of automated optical inspection (AOI) and precision machine vision systems, primarily serving the semiconductor and electronics manufacturing industries from the 1980s through the 1990s. Their systems were used for automated wafer inspection, printed circuit board quality control, component placement verification, and precision dimensional measurement in high-volume production environments. The SCSI controller card in a View Engineering system handles data transfer between the vision processing host and SCSI-attached storage or imaging subsystems, allowing the system to capture, buffer, and analyze high-resolution images in real time. View Engineering was later acquired and its technology integrated into other metrology and inspection platforms. Replacement and spare controller cards for these legacy systems remain in demand at facilities still operating View Engineering inspection equipment for legacy semiconductor or PCB production lines.
This View Engineering 633594-002 SCSI Controller Card is new old stock. It has not been installed or used, and is in new condition. The board may be out of its original packaging, but shows no signs of use or wear. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
View Engineering |
Model: |
633594-002 |
MPN: |
633594-002 |
Type: |
SCSI Controller Card |
SKU: |
26247 |
Seller Notes: |
New old stock controller card; may be out of original packaging. |
Form Factor: |
PCB / Card Module |
Interface: |
SCSI |
Application: |
Machine Vision / Automated Inspection System |
Board Assembly Number: |
PBA 633594-002 |
Country/Region of Manufacture: |
United States |
Compatible With: |
View Engineering Vision Inspection Systems |
Condition: |
New – Old Stock, may be out of original box |
Condition Notes: |
View Engineering 633594-002 SCSI Controller Card. New old stock — unused, uninstalled. May be out of original packaging but shows no signs of use or wear. |
