Vicor VI-RAM-C1 Ripple Attenuator Module 5-50VDC 10A 20MHz VI-200 VI-J00
Ripple attenuator module designed to reduce output voltage ripple in Vicor DC-DC converter systems. Mounts directly to compatible converter modules to suppress high-frequency noise across a 20 MHz bandwidth.
Specifications & What's Included
- Output Voltage Range: 5 to 50 VDC
- Maximum Output Current: 10 A
- Attenuation Bandwidth: Up to 20 MHz
- Efficiency: 93–99%
- Compatible With: Vicor VI-200 and VI-J00 series DC-DC converters
- Dimensions: 2.28 x 2.40 x 0.50 in (57.9 x 61.0 x 12.7 mm)
- No adjustments required; maintains sense, trim, overvoltage, and overcurrent functions
Applications
This module type is used in industrial power supply systems, telecommunications equipment, and military/aerospace applications where clean, low-ripple DC outputs are required. It integrates with Vicor's VI-200 and VI-J00 series converters to meet stringent noise specifications in sensitive analog and RF circuits.
Condition: Used

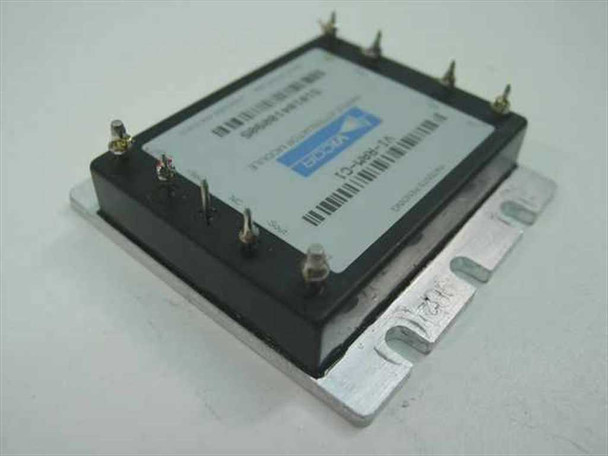

This Vicor VI-RAM-C1 Ripple Attenuator Module has been tested and is in working order. The module shows light general wear consistent with prior use. The label is clean and fully legible, and the pin connections appear intact with no obvious damage. Please view our photos and contact us if you have any questions.
This Vicor VI-RAM-C1 Ripple Attenuator Module has been tested and is in working order. The module shows light general wear consistent with prior use. The label is clean and fully legible, and the pin connections appear intact with no obvious damage. Please view our photos and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Vicor |
Model: |
VI-RAM-C1 |
MPN: |
VI-RAM-C1 |
Type: |
Ripple Attenuator Module |
SKU: |
19262 |
Output Voltage Range: |
5 to 50 VDC |
Maximum Output Current: |
10 A |
Attenuation Bandwidth: |
Up to 20 MHz |
Efficiency: |
93–99% |
Compatible With: |
Vicor VI-200 series DC-DC converters |
Compatible With 2: |
Vicor VI-J00 series DC-DC converters |
Adjustments Required: |
None |
Retained Functions: |
Sense, trim, overvoltage, overcurrent |
Dimensions: |
2.28 x 2.40 x 0.50 in (57.9 x 61.0 x 12.7 mm) |
Form Factor: |
Module / PCB Mount |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only; originally paired with VI-JW1-CW (sold separately). |
Condition Notes: |
Vicor VI-RAM-C1 Ripple Attenuator Module. Tested and in working order. Shows light general wear. Label clean and legible; pins intact. Please view our photos and contact us with any questions. |
